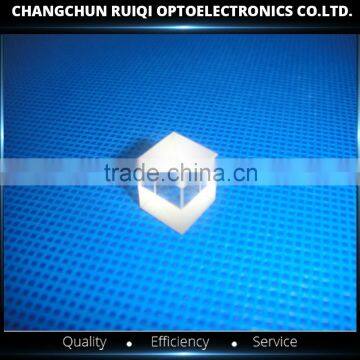

5mm BK7 Non-Polarizing Beamsplitter Cube
USD $35 - $75
/ Piece
5 Pieces(Min.Order)
- 3000 Piece / Pieces per Month
- Changchun Beijing Shenzhen Shanghai
- Credit Card
You May Like
-
12.7*12.7*12.7mm BK7 Non-Polarizing Beamsplitter Cube(400-700nm)
-
50/50 R/T BK7 Non-Polarizing Beamsplitter Cube(400-700nm)
-
Visible & Near-IR Laser Line Polarizing Cube Beamsplitters
-
12.7X12.7X12.7Polarization Beamsplitter cube prism
-
25.4mm Polarization Beamsplitter Cube
-
Custom made Laser Line Polarizing Cube Beamsplitters
Product Details
| Place of Origin | Jilin, China | Brand Name | CCRQ | |
| Model Number | CCRQ-BSP1 | Material | Other, Glass, BK7 | |
| Usage | Optical | Structure | Other, Prism | |
| Shape | Plano |
Product Description
5mm BK7 Non-Polarizing Beamsplitter Cube
Beamsplitters are optical components used to split input light into two separate parts. Beam splitters are common components in laser or illumination systems. Beamsplitters are also ideal for fluorescence applications, optical interferometry, or life science or semiconductor instrumentation. Light can be split by percentage of overall intensity, wavelength, or polarization state.
Features:
- Low Polarization Dependance Coating
- Constructed from High Tolerance Right Angle Prisms
- BBAR Coated Faces for Maximum Efficiency
- C-Mounted Visible and NIR Cube Beamsplitters Also Available
.
Technical Specifications:
| Material | BK7 Grade A optical glass |
| Dimension Tolerance | ± 0.2mm |
| Clear Aperture | >90% |
| Flatness | λ/20 at 632.8nm |
| Beam Deviation | <3 arc minutes |
| Surface Quality | 60/40 |
| Absorption | <10% |
| Transmission | 45%±5% |
| Polarization | <6% |
| Coating | Non-polarizing beamsplitter coating on hypotenuse face AR coating on all entrances |
| Damage Threshold | >100mJ/cm 2 , 20ns, 20Hz, @1064nm |
