Product Details
| Place of Origin | Jilin, China | Brand Name | CCRQ | |
| Model Number | ball lens | Material | Glass | |
| Usage | Optical | Structure | Other, spherical | |
| Shape | Ball |
Product Description

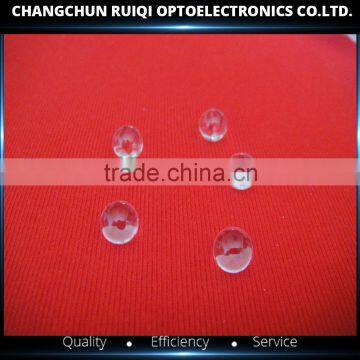

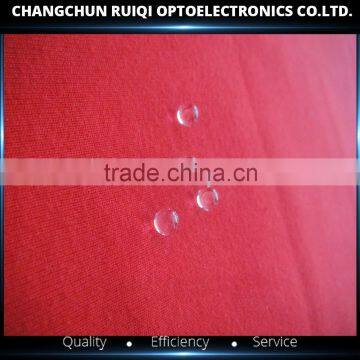

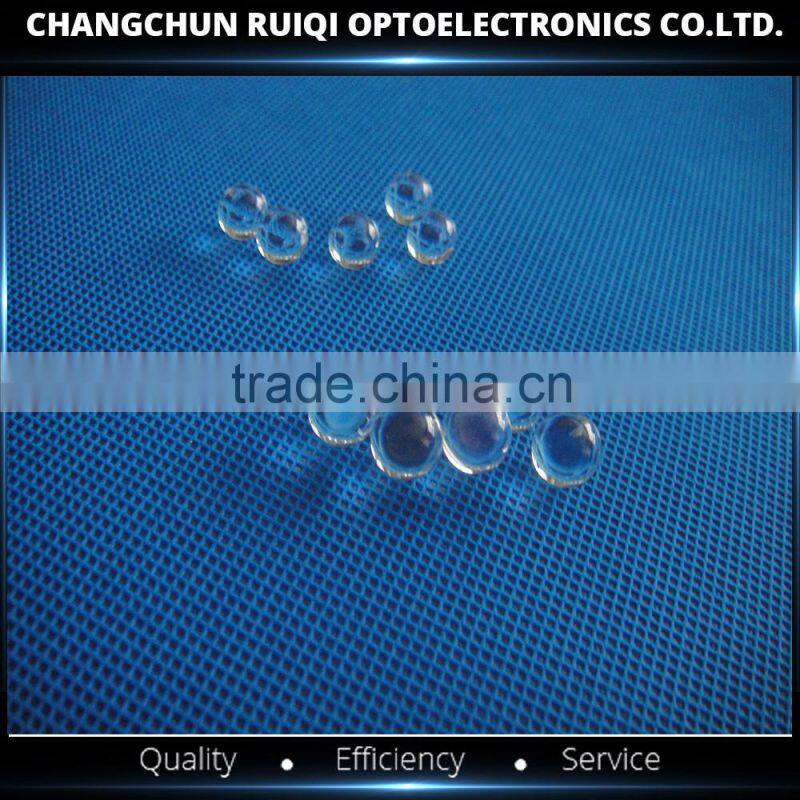

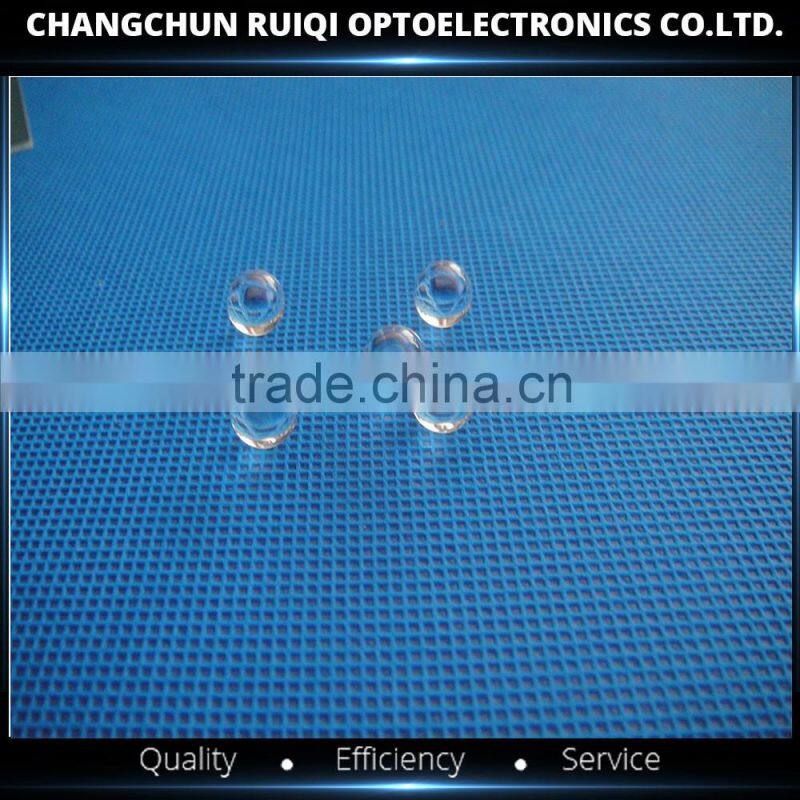

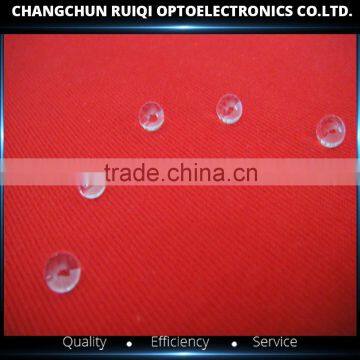

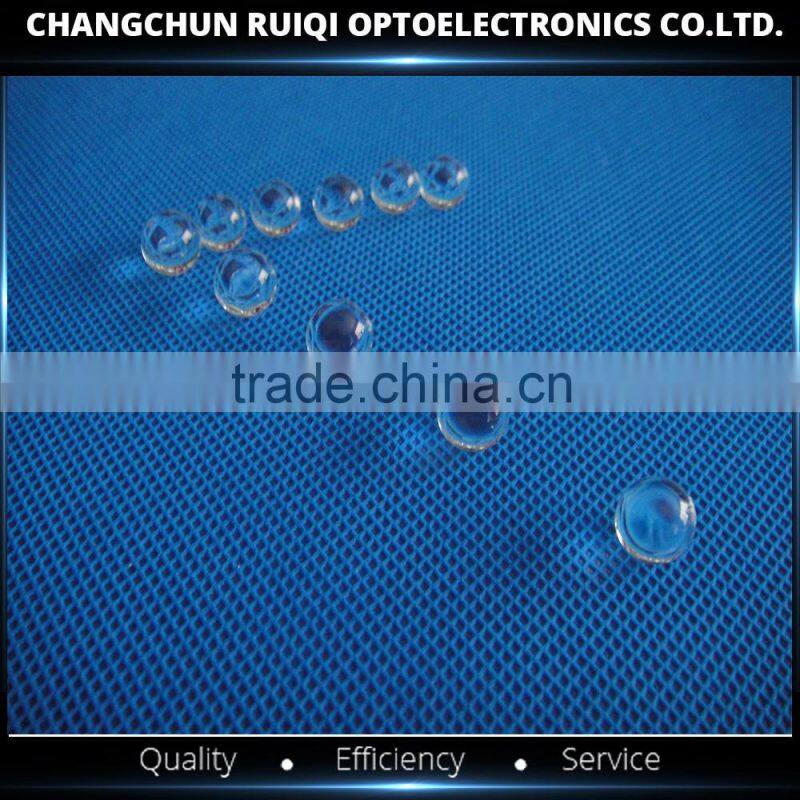

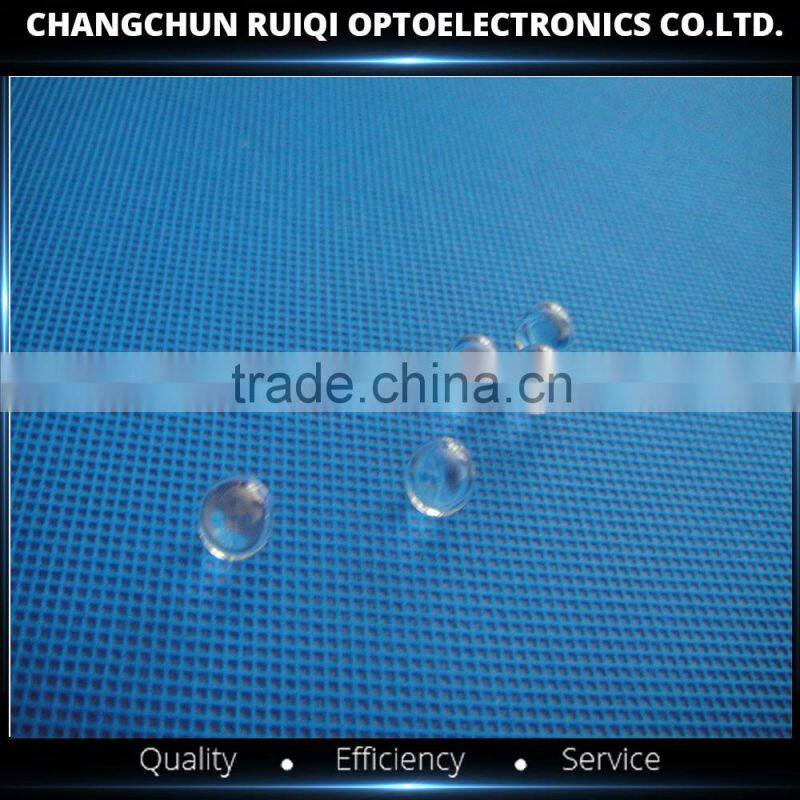

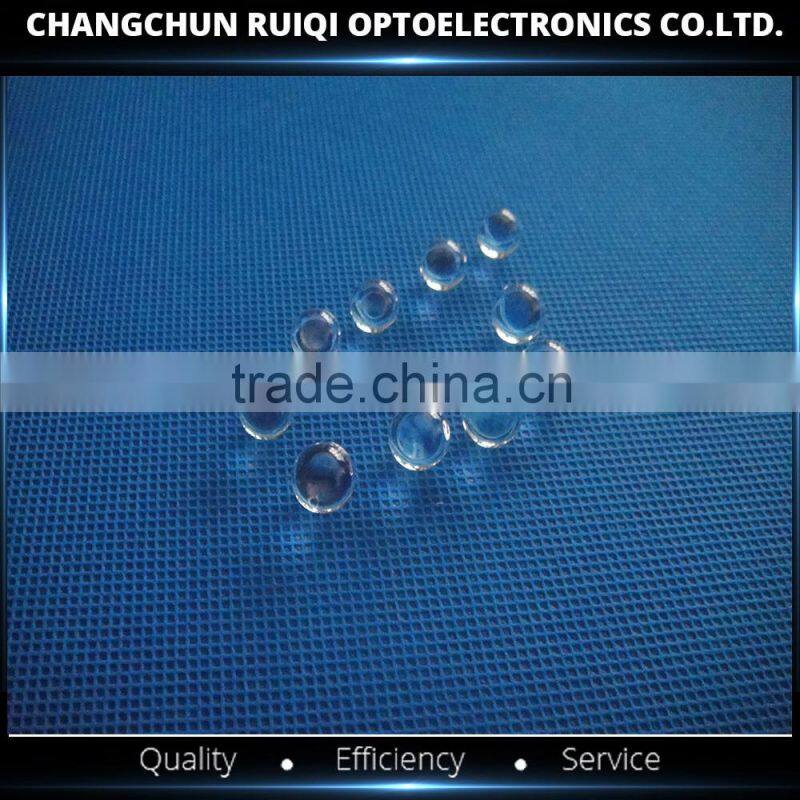

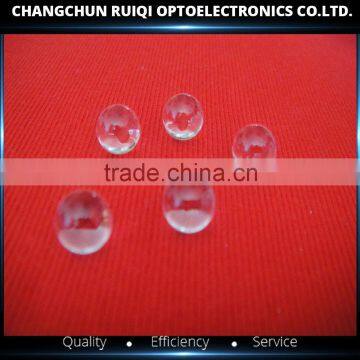

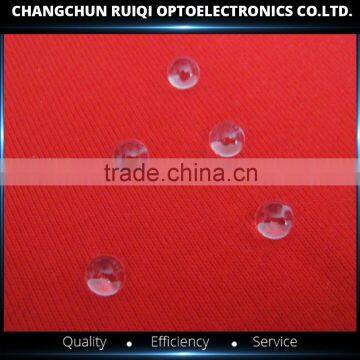

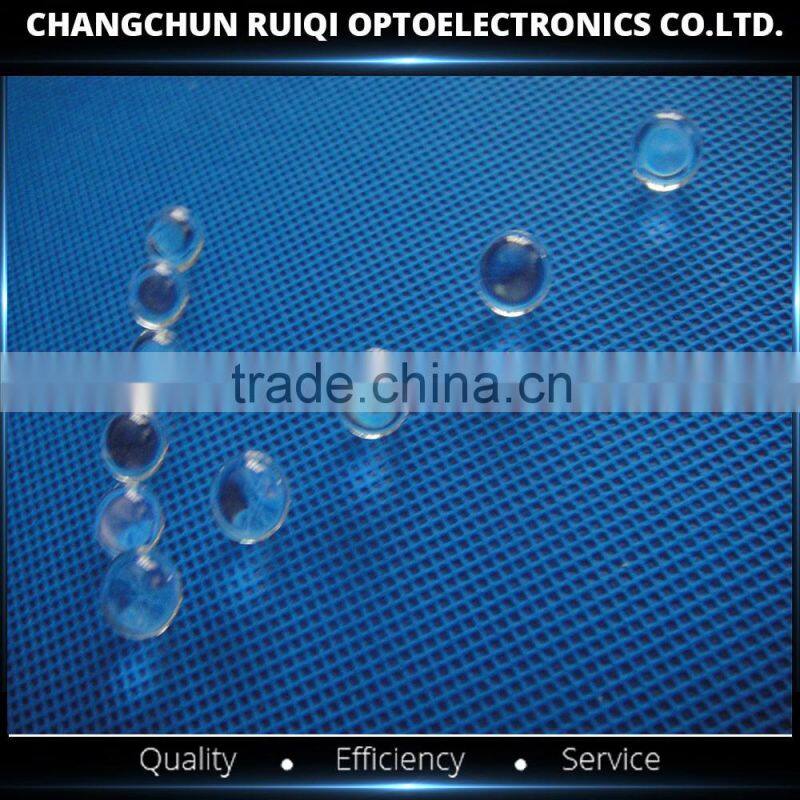

JGS1, fused silica,sapphire, optical glass ball lens,half ball lens
Ball lenses are great optical components for improving signal coupling between fibers, emitters, and detectors. They are also used in endoscopy, bar code scanning, ball pre-forms for aspheric lenses, and sensor applications. Ball lensesare manufactured from a single substrate of glass and can focus or collimate light, depending upon the geometry of the input source. Half-ball lenses are also common and can be interchanged with full ball lenses if the physical constraints of an application require a more compact design.
Spherical Ball Lenses are commonly used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling. Larger spheres are easier to handle and ease the sensitivity of translational alignment. However, smaller spheres has the benefit of fitting into smaller packages.
Specifications:
Material: BK7/K9,Fused Silica,Sapphire,LaSF7 glass or other optical glass
Sphericity: 1um,2um,3um
Surface Quality: 60/40,40/20,20-10
Diameter: 1-150mm
Welcome to enquiry
