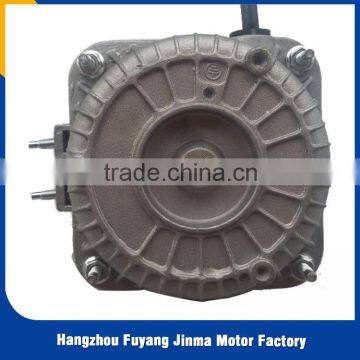

China new innovative product ac fan shaded pole motor

1,PRODUCT OVERVIEW

(1) YZ series motors are shaded pole motors with single-phrase and four-poles, and running at the rated voltage/frequency of 220-240V, 50/60HZ or 110-120V, 60HZ.

(2) AC Electric Motor are widely applied to radiators, evaporators,condensing unit,ice machine and other refridgration equipments.

(3) Their output power is from 5W to 34W, which can be adjusted according to the stack length.

(4) Motors of output power below 10W have impedance protection, and motors of output power above 10W have thermal protectors whose cut-off temperature is 130oC±5oC.

2,COMPARISON OF THE INTERNAL STRUCTURE OF THE COIL

The complete winding motor has more copper wire,and a motor of such advanced construction is more efficient,and it has better performance and longer life-span than the part winding motor.Therefore,the complete winding motor enjoys great popularity in Europe and America.

3,COMPARISON OF THE COVER STRUCTURE

The oil bearing used the oil is PERMAWICK # 284 which is imported from America.A motor with this bearing has low noise and long working life that is over 20000 hours.And it's applicable temperature is from -40oC to +100oC.

The ball bearing with advanced construction,this high quality bearing gives the motor high energy efficiency,great performance,low noise and a lond working life of 30000 hours.Its applicable temperature is from -40oC to +100oC.

4,DIFFERENT COVER CAN BE CHOOSED

18 stand for the mounting screw distance is 18mm.

26 stand for the mounting screw distance is 26mm.

The ITALY cover and 4Q cover have multi installation way.

Packaging & Delivery:

Packing detail: Carton standard exporting carton and wooden cases.

Delivery detail: 10-30 days.

Hangzhou Fuyang Jinma motor factory was established in 2004, is located in the paradise city - Hangzhou, near the beautiful Fuchun River, is a professional production of refrigerator cover pole motor fan, FFU air purification unit, cold and dry wind machine, open the door machine motor, external rotor centrifugal fan, a capacitor running motor and cooling fan products professional factory. The company has advanced performance, well-equipped motor, blower production line and testing equipment, mature production technology, with advanced manufacturing technology and modern management level, at the same time, have a strong R & D team, strong technical force, long-term cooperation with scientific research institutions, according to the customer demand customize various special fan products. Companies to implement the strategy of sustainable development, in order to superior economic scale of enterprise to expand the market, to first-class quality and service and forge the well-known brand, enterprise groups, the modernization of management and brand attitude to the public display of corporate image, to "create a miracle, the sense of moving customers; create wealth, social returns," the spirit of enterprise, with excellent quality assurance system and service system, complete and scientific quality management system, adhere to establish a strong business, the integrity of the enterprise. Sincerely looking forward to sincere cooperation with customers, and continuously forge ahead, and constantly improve, and dedication to provide customers with the best quality service. Warmly welcome domestic and foreign customers and merchants to visit us.
