Home > Products > Cultivator > CULTIVATOR 5 TINE

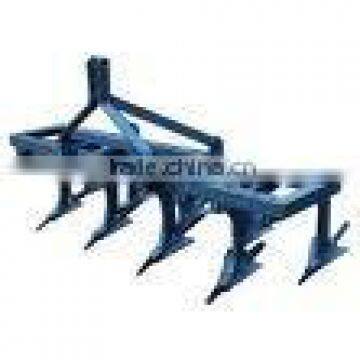

CULTIVATOR 5 TINE
- Any
- T/T D/P D/A
You May Like
Product Details
| Power Type | Other | Certification | ISO 9001:2000 | |
| Use | cultivation | Place of Origin | Punjab, India | |
| Brand Name | BROHAWK | Model Number | BC- 230 |
Product Description
Cultivator for Tractor 11 Tyne
BC - 230
FEATURES:
It is designed for toughest operations.
Used for loosening and aerating soil to a depth of nine inches.
Prepares seed beds quickly and economically.
When one tine strikes a hidden object, the others continue to work at the correct
depth.
Spring loaded assemblies derive their strength from heavy-duty angles, which once
fixed to the immensely strong main frame cannot move or strain out of position
SPECIFICATION
CODE | 11 TINE |
Frame (Angle) | 65 x 8 mm |
Spring | 10 mm WD, 50 mm OD 28.5 Coils |
Tine (forged) | 50 x 25 mm |
Pairs (angle) | 65x65x6 mm |
Anchor Pin | 22 mm |
Nuts | High Tensile |
Frame Bolt | M 12 x 35 (High Tensile) |
Tine Boltm | 18 x 65 mm (High Tensile) |
Linkage 3 Point | 75 x 12 mm (rear) 50 x 12 (front) |
Shovel | 8 mm En-45 |
Length | 2457 mm |
Width | 850 mm |
Height | 585 mm |
Tiller Pin | 25 mm |
Weight | 253 kg |
Powder Coated and Spray Painted
Color- Any
Size-11 tyne
Tube Type, Angle Type, Pipe Type Cultivator
