Home > Products > Cultivator > CULTIVATOR MEDIUM DUTY

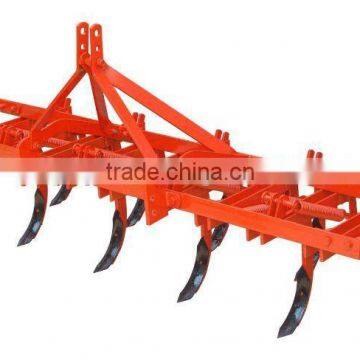

CULTIVATOR MEDIUM DUTY
- Mumbai
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Diesel | Certification | ISO 9001:2000 | |
| Use | Cultivation | Place of Origin | Punjab, India | |
| Brand Name | BROHAWK | Model Number | BCM- 280 |
Product Description
Tiller (Cultivator) Model No – BCM-230
1. Suitable for use in stone and root obstructed soil.
2. Suitable for light and medium soil conditions.
3. Used for losing and aerating soil to a depth of nine inches.
4. Prepares seed beds quickly and economically.
5. When one tyne strikes a hidden object, the others continue to work at the correct depth.
6. Spring Loaded assemblies derive their strength from heavy-duty angles, which once fixed to the immensely strong main frame cannot move or strain out of position.
CODE | 9 TYNE | 11 TYNE | 13 TYNE |
| FRAME | 65X8 MM (Angle) | 65X8 MM (Angle) | 65X8 MM (Angle) |
| SPRING | 9.5 mm WD, 50 mm OD 27 Coils | 9.5 mm WD, 50 mm OD 27 Coils | 9.5 mm WD, 50 mm OD 27 Coils |
| TYNES | 50 x 19 mm (Forged) | 50 x 19 mm (Forged) | 50 x 19 mm (Forged) |
| PAIRS | 50X6 / 50X8 mm Flat | 50X6 / 50X8 mm Flat | 50X6 / 50X8 mm Flat |
| ANCHOR PIN | 25 mm | 25 mm | 25 mm |
| NUTS | Nylock | Nylock | Nylock |
| FRAME BOLT | M 12 x 32 (High Tensile) | M 12 x 32 (High Tensile) | M 12 x 32 (High Tensile) |
| TYNE BOLT | M 12X35 mm (High Tensile) | M 12X35 mm (High Tensile) | M 12X35 mm (High Tensile) |
| LINKAGE 3 POINT | 50 x 12 mm | 50 x 12 mm | 50 x 12 mm |
| SHOVEL | 8 mm EN-45 | 8 mm EN-45 | 8 mm EN-45 |
| LENGTH | 2184 mm | 2412 mm | 2640 mm |
| WIDTH | 900 mm | 900 mm | 900 mm |
| HEIGHT | 533 mm | 533 mm | 533 mm |
| TILLER PIN | 25 mm | 25 mm | 25 mm |
| WEIGHT | 235 Kg. | 282 Kg. | 330 Kg. |
The weight and working data contained in this table are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/ improvement.
