GF900P IR electronic meter reading device

FOB Price

US$ 50 - 599 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	GFUVE
Model Number	GF900P

Advanced design concept compound the terminal with the printer
Carry out data acquisition and analysis.
It work quickly

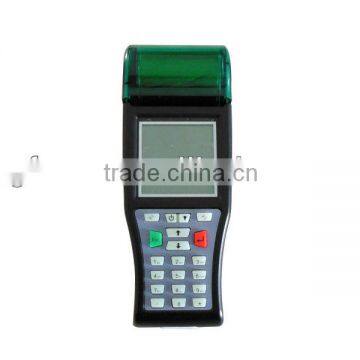

GF900P IR electronic meter reading device

GF900P is a handheld pos terminal with the printing function, you can print service bill or product bill on the spot.

Features

Advanced design concept compound the terminal with the printer together.

Carry out data acquisition and analysis.

Reading data of electric energy meter via IR.

High capacity rechargeable of lithium, low consumption printer, the pos terminal can work long time.

Have two ways (sound and light) to notice user whether the printer is being short of power or short of paper.

It work quickly and price cheap.

Specifications

Specification
CPU	ARM32 CPU 132MHz(SAMSUNG)
Operation system	TPOS operation system
RAM	512K
FLASH	64M FLASH dish
Display	3.2 inch display, 160x160 pixel,
Work temperature	-20°C~60°C
Storage temperature	-25°C~70°C
Real time	Much less than 0.5 seconds every day under common temperature
Keypad	20 keypads
Non-slip function	Non-slip handle design, the battery back can locked to prevent battery cover lost
Power off protection	Using flash technology, the data is still safe preservation after power off
Print method	thermal line printing
The diameter of the paper	40mm
The maximum width of the printing paper	58mm
The maximum width can be printed	48mm
Resolution	8 dots/mm(203dpi)
The count of every line	384 dots,every line can print 16 Chinese characters or 32 characters English
Print speed	45mm/s
Print content	Chinese,Number,English,Graphics,Curve,Barcode
Control instruction	ESC/POS compatible instruction sets
Communication Ports	RS232,IR,USB2.0
Optional configuration	IR
Battery	High capacity rechargeable of lithium battery
Dimensions	195mm(L) ×65mm(W)×45mm(H)
Weight	About 256g(not including battery)
Programming language	C language,DBF database development system
Communication agreement	IEC62056 protocol, IEC1107 protocol, DL/T645-2007 and DL/T645-1997
