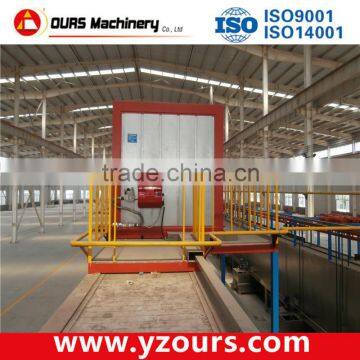

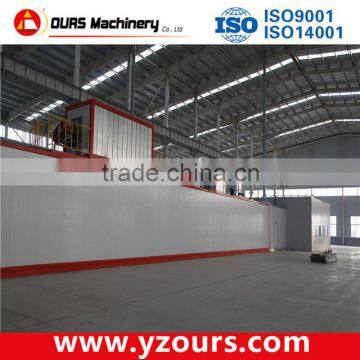

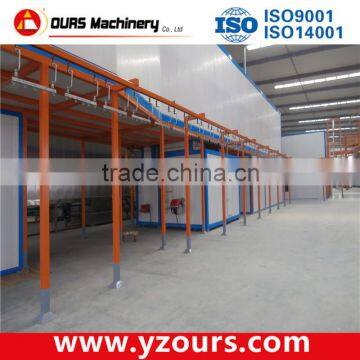

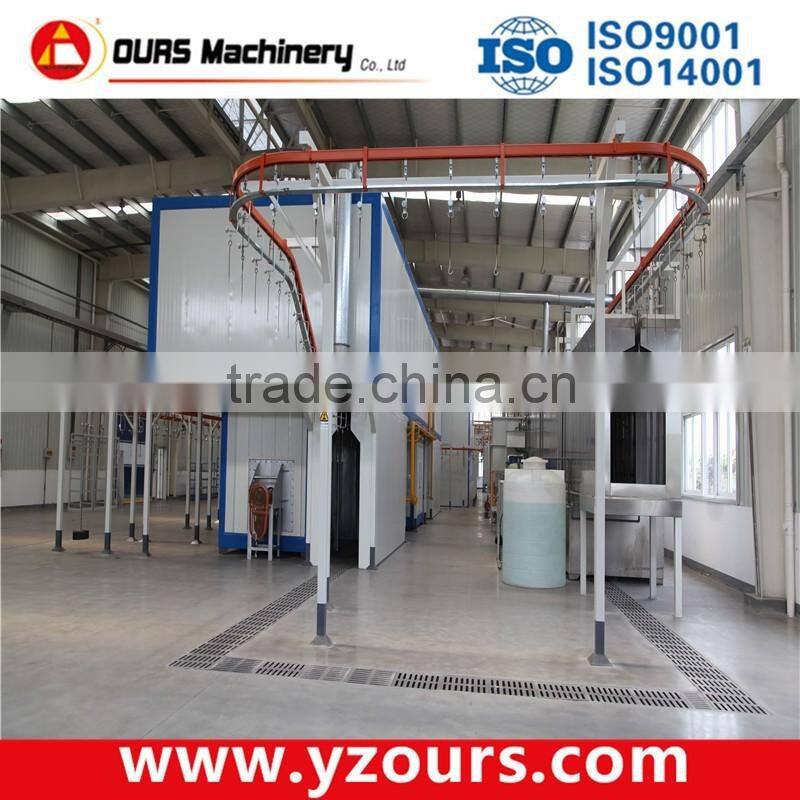

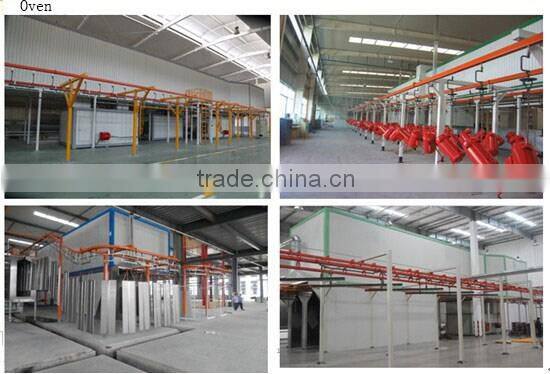

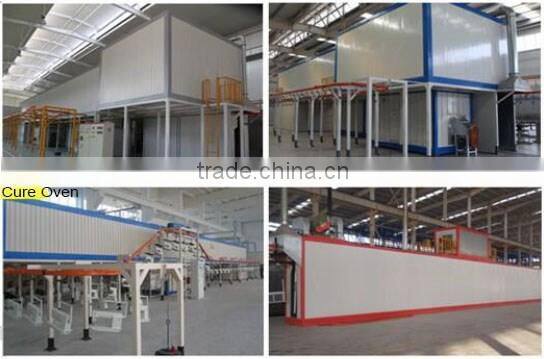

Dryer and Curing Oven for Powder Coating Line
- shanghai
- T/T Credit Card
You May Like
-
Wash and Phosphate Conversion Coating Equipment and Systems
-
Painting Equipment Powder Used
-
Powder Coating Booth Type and Aluminum Substrate New Design Powder Coating Line
-
Powder Coating Machine at Best Price
-
Electrostatic Painting Equipment Sale
-
Conveyor Dipping Painting Machine,Cathodic Dip-painting,nano Coating
Product Details
| Condition | New | Type | Other | |
| Substrate | Other, Stainless Steel | Coating | Powder Coating | |
| Place of Origin | Jiangsu, China | Brand Name | jsours | |
| Model Number | oven | Voltage | Customer's request | |
| Power(W) | as per design | Dimension(L*W*H) | as per design | |
| Weight | as per design | Certification | ISO9001 | |
| Warranty | 1 Year Waranty | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
powder coating oven|powder coating oven burner|electric powder coating oven|ovens powder coating equipment|gas powder coating oven|electrostatic powder coating oven|powder paint coating oven
1. Wallboard panel | - Rockwool steel colorful board,100 mmthick, density 120kgs/cbm.Outside is colorful steel,inside is gavalnized steel, anti-flame and heat-insulation. |
2. Working door | -One set of door or two sets of doors(go through type) for in and out,with lock lift. |
3. Heating System | - Diesel burner * 1unit |
- One set of heat exchanger,made bystainless steel | |
- 15~20 minutes reaching the baking temperature 180-200°C | |
- Cabinet (rock woolinsulation) for the burner & heat chamber* 1unit | |
4. Air circulation System | One set of heat resistant fan for circulating the hot air,one set of cooling pump for cooling the axle bearing(special for 40 burner). 380v/50hz/3phase.(other voltage required need to add 150USD) |
5. E-control Panel | - *1unit, including automatic/constant temprature,stop,emergency stop,start,oven temperature setting,constant temperature setting,hot air temperature setting,over indicator,failure indicator,normal indicator,power indicator,pre-work indicator. |
6.Guide rail | 1 set of guide rail for pushing the trolley in and out. |
Included | - All Hardware, Fasteners, and Sealants |
Optional | The trolley and water box should be made by the customers themselves.If you want to custom made by us,pls give us the drawing. |
