leica total station price,ts02,leica total station

FOB Price

US$ 6,900 - 7,500 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Swaziland		Brand Name	Leica
Model Number	TS02

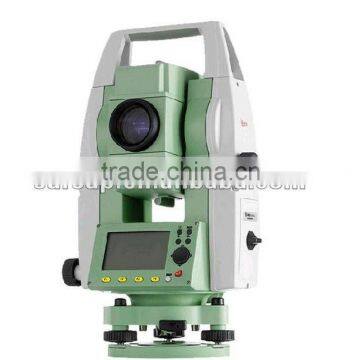

1.Leica TS02 Total Station
2. Refelctorless range:1000m]
3.Ship out in 5 working days

Quick Details

Place of Origin: Switzerland

Brand Name: Leica

Model Number: TS02

colour: green

accuracy: 5''

reflectorless range:1000m

Magnification: 30 x

Specifications

1.Designed for preliminary accuracy applications

2.an alpha-numerical keyboard

3.a complete set of application software

Accuracy(Standard deviation ISO-17123-3)	5”
Method	Absolute continuous
Display resolution	0.1” / 0.1 mgon / 0.01 mil
Compensation	Quadruple axis compensation (Setting On, Off)
Compensator Setting accuracy	0.5”, 1”, 1.5”
Range Round prism GPR1	3’500 m
Accuracy / Measurement time	Standard: 1.5 mm+2 ppm / typ. 2.4 s, Fast: 3 mm+2 ppm / typ. 0.8 s, Tracking: 3 mm+2 ppm / typ. <0.15 s
(Standard deviation ISO-17123-4)	2 mm+2 ppm2 / typ. 3 s
Laser dot size	At 30 m: approx. 7 mm x 10 mm, At 50 m: approx. 8 mm x 20 mm
Extended Internal memory	Max.: 24,000 fixpoints
USB memory stick	1 Gigabyte, Transfer time 1’000 points/second optional
Interfaces	Serial (Baudrate 1’200 to 115’200)
Interfaces	USB Type A and mini B, Bluetooth® Wireless optional
Data formats	GSI / DXF / LandXML / CSV / user definable ASCII formats
Magnification	30 x
Resolving power	3”
Field of view	1° 30’ (1.66 gon) / 2.7 m at 100 m
Focusing range	1.7 m to infinity
Reticle	Illuminated, 5 brightness levels
Type	Laser point, illuminated, 5 brightness levels
Keyboard	Alpha-numerical keyboard
Keyboard	Second keyboard optionalperating System
Windows CE	5.0 Core
Centering accuracy	1.5 mm at 1.5 m Instrument heighttery
Type	Lithium-Ion
Operating time	approx. 20 hours1ght
Total station including GEB211 and tribrach	5.1 kg
Temperature range (operation)	-20° C to +50° C (-4° F to +122° F)
Arctic Version	-35° C to 50° C (-31° F to +122° F) optional
Dust & splash proof (IEC 60529)	IP55
Humidity	95%, non condensingeld Onb
