Hybrid Solar Charge Controller Lcd+mppt Controller 90A 48v

FOB Price

US$ 90 - 399 / Set

1 Set(Min. Order)

Port guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	cap, cap
Model Number	48v 50A	Application	Charger Controller
Rated Voltage	48V	Maximum Current	100A

Product Description

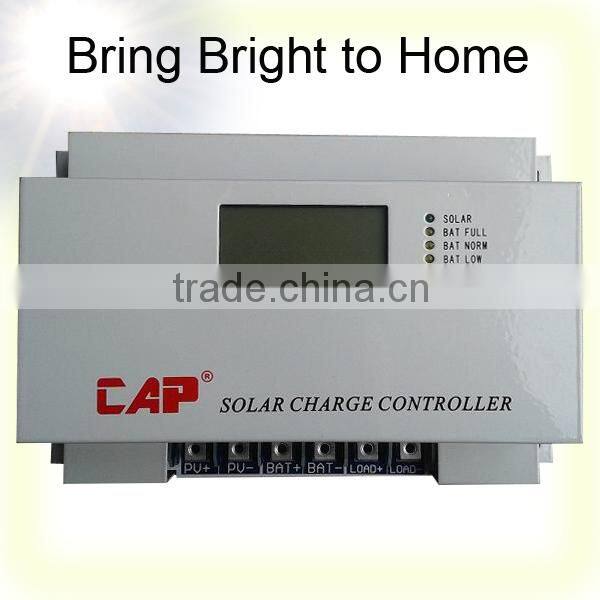

hybrid solar charge controller lcd+mppt controller 90A 48v

1. Microcomputer chip ensures accurate control

2. Perfect protections: over charge, over-discharge, reverse connection, PV cell panel reverse connection protection

3. Automatic brake and manual brake ensures that the wind turbine and the PV & wind hybrid charging controller operate safely and reliably

4. Voltage for automatic brake (rectified voltage of solar panel) and the recovery time after automatic brake can be adjusted in accordance with customer’s demands

5. High efficiency, soft braking, independent input circuits for wind turbine and the PV. As a result, if there is something wrong with one circuit, the other circuit can operate smoothly to provide stable power supply for load.

Specifications:

Model		GT5	GT10	GT20	GT30	GT40	GT60	GT100
Rated Charge current(A)		5	10	20	30	40	60	100
Rated DC voltage(V)		12/24	12/24	12/24/ 48/96 (optional)	12/24/ 48/96 (optional)	48/96 (optional)	48/96 (optional)	48/96 (optional)
Solar input	Max voltage(V)	42	42	21/42/ 84/168	21/42/ 84/168	84/168	84/168	84/168
Battery	Over charge protective voltage(V)	28.6	28.6	28.6/57.2/114	28.6/57.2/114	57.2/114	57.2/114	57.2/114
	Over charge recover voltage(V)	27.4	27.4	27.4/54.8	27.4/54.8	27.4/54.8	27.4/54.8	27.4/54.8
	Constant charge voltage(V)	27	27	27/54	27/54	54	54	54
	Over discharge alarm voltage(V)	20	20	20/40	20/40	40	40	40
Others	Environment Humidity and temperature	0-90% No condense,55°C
	Protective Functions	Protection against anti-charge at night,battery over charge,over discharge protection,Joint-reversed of solar modules
	Control method	PWM
Size :DWH(mm)		21412055	21412055	21412055	21412055	23515070	260170140	370290140
Package:DWH(mm)		24013882	24013882	24013882	24013882	27517095	310220190	395345205
N.W/G.W(kg)		0.6/0.8	0.6/0.8	0.6/0.8	0.6/0.8	1.3/1.5	2.5/2.9	5.4/6.6

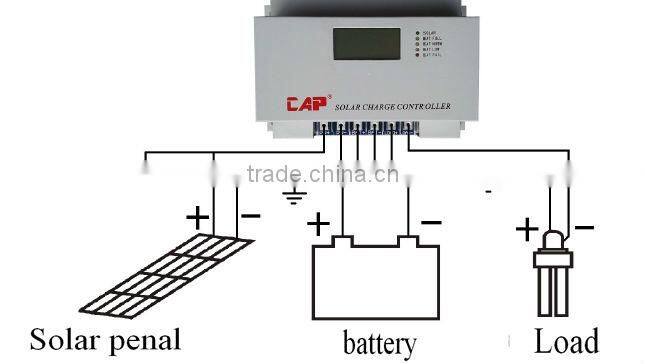

Remark: if the hybrid system, the solar panel and wind turbine output need the same, then the system can work .such as if 1KW wind turbine output is 48V, solar panel output also need 48V.

Warranty:1 year

Delivery time:3-5 days for sample
