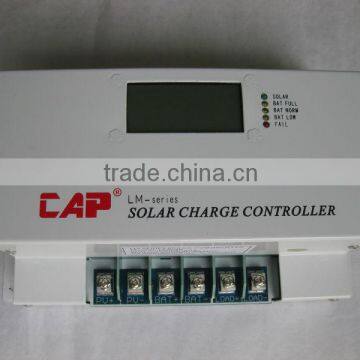

192v 240v 100A Inverter Controller With Mppt

FOB Price

US$ 70 - 280 / Piece

10 Pieces(Min. Order)

Port Gangzhou
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	CAP
Model Number	LM-series, 40A 50A 60A 70A controller	Application	Solar System Controller
Rated Voltage	Other, 48V, 48V	Maximum Current	100A, 100A

Product Description

100A Inverter Controller with mppt

Input Voltage:12v/24v 36v/72v 48v/96v 120v

Description of Functions

1. Microcomputer chip ensures accurate control

2. Perfect protections: over charge, over-discharge, reverse connection, PV cell panel reverse connection protection

3. Automatic brake and manual brake ensures that the wind turbine and the PV & wind hybrid charging controller operate safely and reliably

4. Voltage for automatic brake (rectified voltage of solar panel) and the recovery time after automatic brake can be adjusted in accordance with customer’s demands

5. High efficiency, soft braking, independent input circuits for wind turbine and the PV. As a result, if there is something wrong with one circuit, the other circuit can operate smoothly to provide stable power supply for load.

6.The charge controller adjusts itself automatically to 12V or 24V. It also has 36V,48V, 72V and 96V DC input voltage.

Technical Data:

Model series	LM series A LM01A/LM02A/LM03A/LM04A	LM series B LM01B/LM02B/LM03B/LM04B
Nominal voltage	12/24 V, automatic recognition	48/96 V, automatic recognition
Boost voltage	14.5/ 29.0 V (25'C),2 hours	58/116V (25'C),2 hours
Equalization voltage	14.8/29.6 V (25'C),2 hours	59.2/118.4V (25'C),2 hours
Float voltage	13.7/ 27.4 V (25'C)	54.8/109.6 V (25'C)
Low Voltage Disconnect Function	11.4- 11.9/22.8-23.8 V controlled by state of charge 11.0/ 22.0 V controlled by voltage	45.64- 47.6/91.2-95.2V controlled by state of charge 11.0/ 22.0 V controlled by voltage
Load reconnect voltage	12.8/25.6V	51.2/102.4V
Temperature compensation	-4 mV/cell*K
Max. solar panel current	40A/50A/60A according to model number @ 50'C
Max. load current	40A/50A/60A according to model number @ 50'C
Dimension	230 x 150 x 85 mm
Weight	1.2kg	1.3kg
Max wire size	20 mm2
Self consumption	16mA	30mA
Ambient temperature range	-40 to+ 50°C
Case protection	IP 22
