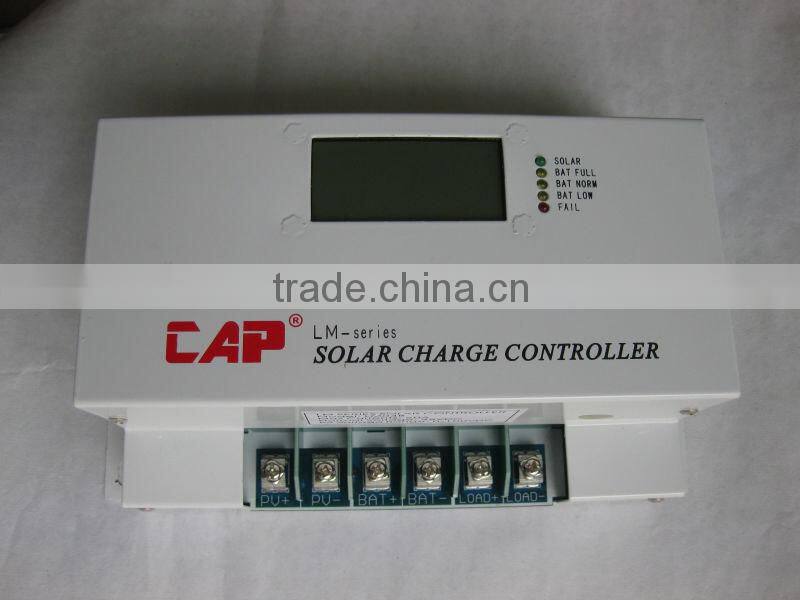

120V Intelligent LCD+MPPT Solar Controller

 intelligent LCD+MPPT solar controller

Input Voltage:12v/24v 36v/72v 48v/96v 120v

Description of Functions

1. Microcomputer chip ensures accurate control

2. Perfect protections: over charge, overdischarge, reverse connection,

PV cell panel reverse connection protection

3. Automatic brake and manual brake ensures that the wind turbine and the PV & wind hybrid

charging controller operate safely and reliably

4. Voltage for automatic brake (rectified voltage of solar panel) and the recovery time after automatic

brake can be adjusted in accordance with customer’s demands

5. High efficiency, soft braking, independent input circuits for wind turbine and the PV. As a result,

if there is something wrong with one circuit,the other circuit can operate smoothly to provide stable

power supply for load.

6.The charge controller adjusts itself automatically to 12V or 24V.  It also has 36V,48V, 72V and 96V DC input voltage.

7. The charge controller protects the battery from being overcharged by the solar array and from being deep discharged by the Loads. The charging characteristics include several stages which include automatic adaptation to the ambient temperature

 8. The charge controller has a number of safety and LED & LCD display functions

Technical Data:
