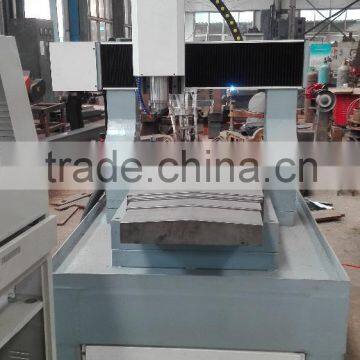

3d cnc metal moulding machine with cheap price 6060 size cnc milling machine

FOB Price

USD $6,500 - $7,600 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Xingchen	Model Number	XC-6060
Type	Horizontal	CNC or Not	CNC
Voltage	380V	Power(W)	7.5KW
Dimension(LWH)	222017902360mm	Weight	2800KG
Certification	CE ISO9001	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

3d cnc metal moulding machine with cheap price 6060 size cnc milling machine

Product Description

1.Low inertia servo motor speed fast,Three axes orbit design,Every axis rapid traverse high up to 48m/min, Greatly improve the efficiency of processing.

2. Automatic lubrication device, To guide screw oil supply,Avoid working long hours thermal expansion,Prolong its service life.

3. Dics type knife library adopts precision cam drive,With steady movement, Fast tool change etc.T-T tool change time not more than 3 seconds.

4.Could be equipped with multiple axes,Tapping multiple holes at the same time,Greatly improves the production efficiency and save labor cost,Increasing the competitiveness.

5. All main body uses meehanite cast iron,High tension casting material,Shock absorption power,Good wear resistance,after the stress relief and aging treatment,Make sure the machine can maintain the best accuracy for a long time.

6.ChanSin was founded in 1998, which is one of the leading and earliest manufacturers producing CNC machine, automatic drilling machine and automatic tapping machine. We have innovative, professional and dedicated work team. Our engineers are available to overseas service machinery and have training class.

Technical parameters:

NO.	Description	Parameter
1	X,Y,Z Working Area	600600300mm
2	Table Size	650*650mm
3	Traveling Positioning Accuracy	±0.002mm
4	Repositioning Accuracy	±0.001mm
5	Table Surface	T-slot Extrusions
6	Table Frame	Whole Cast Steel
7	Transmission	TBI Ball Screw from Taiwan
8	Guide rails	Hiwin Rail Linear guide rails
9	Max. Power Consumption (Without spindle)	0.8Kw
10	Max. Rapid Travel Rate	6000mm/min
11	Max. Working Speed	4000mm/min
12	Spindle Power Motor	#5.5KW water cooling spindle
13	Spindle Speed	0-24000RPM
14	Drive Motors	servo motor
15	Working Voltage	220/380V/50/60Hz
16	Command Language	G code
17	Operating System	nc studio control systerm
18	Inverter	Fuling inverter
19	X,Y Resolution	<0.01mm
20	Software Compatibility	Type3 software, Ucancam software (Option: Artcam software)
21	Running Environment	Temperature: 0°C~45C Relative humidity: 30%~75%
22	Packing Size	130015501800mm
