Home > Products > Metal Engraving Machine > Advanced mini cnc milling router machine 3050

Advanced mini cnc milling router machine 3050

FOB Price

USD $12,000 - $18,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Xingchen	Model Number	XC-3050
Type	Horizontal	CNC or Not	CNC
Voltage	220V	Power(W)	3.0kw
Dimension(LWH)	150020001500mm	Weight	2000kg
Certification	CE ISO	Warranty	24months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Advanced mini cnc milling router machine 3050

Product Description

Features:

• Heavy duty casting body with high precision. Optimized assembly provides stable structure, good shock absorption,smooth running and high rigidity, assuring high precision last all life time;

• Adopt imported double ball screw and rectangle guide rail with no-clearance coupling.

• Japanese Servo Motor driving system;

• 5.0KW spindle and max speed 18,000rpm provide high-power engraving and fine processing with small cutters.

• Constant power spindle optional speeds up metal processing.

• LNC control (adopting the most advanced model), ATC available.

Application:

• Precision punch die

• Shoes mould

• Hard Steel mould

• Hot cutting mould

• Hair decorations

• Precision red copper electrode

• Jewelry and other molding

Main Parameter:

Model	XC-5040	XC-6050	XC-7080
Working Table Size	580*400mm	600*600mm	700*900mm
X/Y/Z Axis Movement	500400200mm	650500250mm	700800320mm
XYZ Movement Accuracy	±0.01/300mm	±0.01/300mm	±0.015/300mm
XYZ Repetition Accuracy	0.005mm	0.005mm	0.005mm
Flatness Error of Working Table	≤0.03mm	≤0.03mm	≤0.03mm
XY Verticality Error	0.02mm	0.02mm	0.02mm
feeding Height	30-240mm	50-300mm	350mm
Gantry Width	630mm	740mm	820mm
Max Loading Weight	100KG	300KG	350KG
Pressure Deformation of Working Table	<0.02mm(100KG)	<0.02mm(300KG)	<0.02mm(350KG)
Spindle	2.2KW	3KW	5-7.5KW
Spindle Rotate Speed	5000-24000rpm	5000-21000rpm	3000-18000rpm
Max Movement Speed	10m/min	10m/min	12m/min
Total Power	4KW	7.5KW	13.5KW
Motor	Panasonic Servo Motor	Yaskawa Servo Motor	Panasonic or Yaskawa
Power Supply	220v±10%50Hz	380v±10%50Hz	380V
Net Weight	2000KG	2800kg	4000KG
Gross Weight	2100KG	3300kg	4600KG
Machine Size	154015301950mm	172016001930mm	250018802200mm
Packing Size	185018002020mm	220018802300mm	270021002500mm

Main Parts:

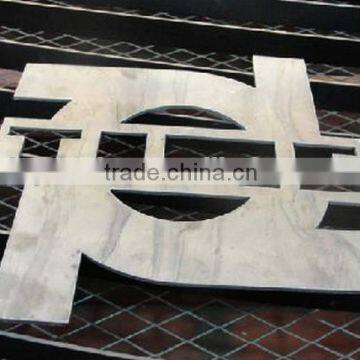

Some samples:

Optional:

1.Plug-in 4th and 5th axis
2.Chip Conveyor
3.Flood Coolant System
4.Voltage Stabilizer
5.Machine Lamp

Other models related:

Packing and shipping:

FAQ:

A) What's your minmun order quantity?

Just one set.

B) Could you please tell me your payment terms of your company?

T/T ,30% as down payment,70% should pay before delivery.

C) Could you please tell me the warranty?

one year.

D) Do you have CE or any other certificate?

We have ISO9001

E) Could your company send the technical person to our company and direct our workers?

Yes,of course.

F) Are you a trader or manufacturer?

We are one of the most famous manufactures in China.
