Split Solar Collector With Solar Keymark
- Shanghai
- T/T
You May Like
-
Heat Pipe Solar Collector System With Expansion Tank,intelligent Controller and Circulation Pump
-
Solar Keymark Heat Pipe Solar Thermal Collector Export Filand,Sweden
-
High-quality Wholesale Hotel Swimming Pool Solar Collector Solar System
-
Heat Pipe Solar Flat Panel Heater Collector for Swimming Pool Quality Choice
-
200L Solar Water Heater for Hotel Hot Water Swimming Pool
-
CPC Solar Thermal Swimming Pool Solar Collector
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DIYI&OEM | |
| Model Number | DIYI-C01 | Type | Vacuum Solar Collector | |
| Application | Solar Thermal | Pipe Material | Copper |
Product Description
Specifications
solar collector:1,solar colletor has good quality
2,solar colletor has low price
3,solar collector has long life
Solar Collector Description

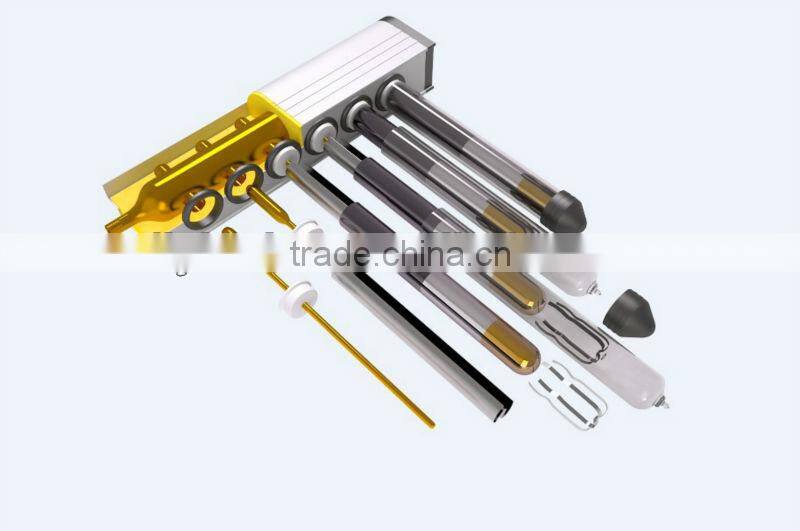

3D Product Display:

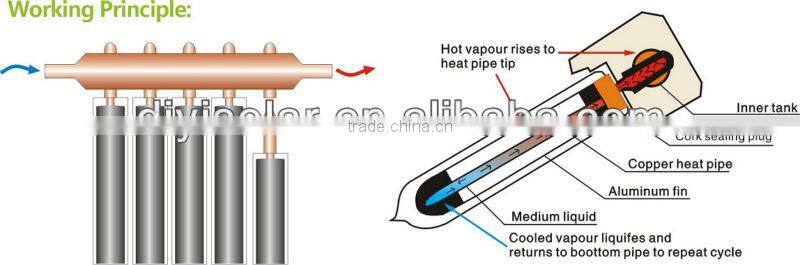

Solar Collector Characteristics:
1. All the solar collector pipeline is made of red copper and conducted by heat transfer medium liquid. With the heat pipe in the vacuum tube, so no water will flow in the vacuum tube 2. The solar collector manifold uses aluminum alloy for exterior, red copper for interior, also with fashion design. 3. Withstand high pressure when it is working 4. It can be combined arbitrarily to meet the demand of large water consumption, and also could be combined with existing pipeline 5. Each tube can work alone, so the solar colletcor can work even one tube is broken and easy to change if necessary
Solar Collector Technical Parameters:
Manifold(interior):
Red copper Manifold(exterior): Aluminum alloy
Aluminium fin: 1600 mm full length
Heat Pipe: Red copper
Heat insulation layer: Eco-friendly rockwool 50mm
Vacuum tube: 58*1800mm SS-CU-AIN/ALN coating
Bracket: Aluminum alloy 1800mm 0-50 degree
Hail resistance: 25mm
Max pressure: 6 bar
Anti-freezing: > -35 degree
Daily efficiency: ≥ 55%
| Item No. | Solar Vacuum Tube | Collector | Absorber Area(m2) | Loading Qty / sets | |||
| qty / pcs | size / mm | 20GP | 40GP | 40HQ | |||
| DIYI-C01-10 | 10 | Φ58X1800 | 1 pc | 1.7X1.12 | 140 | 262 | 323 |
| DIYI-C01-12 | 12 | Φ58X1800 | 1 pc | 1.7X1.16 | 134 | 254 | 313 |
| DIYI-C01-15 | 15 | Φ58X1800 | 1 pc | 1.7X1.26 | 120 | 245 | 291 |
| DIYI-C01-20 | 20 | Φ58X1800 | 1 pc | 1.7X1.64 | 92 | 187 | 222 |
| DIYI-C01-24 | 24 | Φ58X1800 | 1 pc | 1.7X2.10 | 82 | 165 | 195 |
| DIYI-C01-25 | 25 | Φ58X1800 | 1 pc | 1.7X2.12 | 80 | 163 | 193 |
| DIYI-C01-30 | 30 | Φ58X1800 | 1 pc | 1.7X2.38 | 69 | 140 | 166 |
