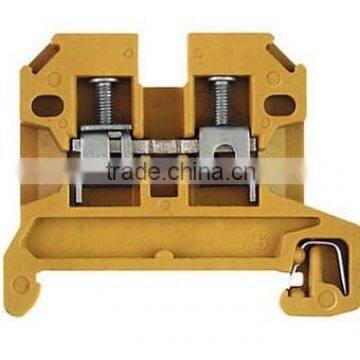

UL approval WEIDMULLER terminal model SAK 2.5/35
- Beijing
- Credit Card
You May Like
-
UL approval WEIDMULLER terminal model SAK 2.5/35 KRG
-
Human Machine Interface with 7" 800x480 TFT LCD/MT6070IH3
-
WEINVIEW 10inch HMI/ with USD host and Ethernet interface / MT8102IE /MT8103IE
-
Apem joystick analogue joystick Inductive sensing joysticks
-
Delta Temperature Controller modulized PID Controller DTC1000R
-
Delta Temperature Controller modulized PID Controller DTC1001C DTC series
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Weidmuller | |
| Model Number | SAK 2.5/35 | Type | Screw Terminal |
Product Description
Specifications
Cross-connection from 0.5 mm2 to 95 mm2Temperature ranges and material
UL approval WEIDMULLER terminal model SAK 2.5/35
Cross-connection from 0.5 mm2 to 95 mm2
Temperature ranges and material
100 °C – PA 6.6
130 °C – KrG
160 °C – epoxy resin
250 °C – ceramic
Type SAK 2.5/35
Order No. 0380460000
GTIN (EAN) 4008190042363
Qty. 100 pc(s).
Width 6.1 mm
Height 44.5 mm
Height of lowest version 40 mm
Depth 40 mm
Net weight 6.33 g
Continuous operating temp., min. -50 °C
Continuous operating temp., max. 100 °C
Certificate No. (ATEX) KEMA97ATEX1798U
ATEX certificate IECEXKEM06.0014U
ATEX certificate KEMA97ATEX1798U_e.pdf
Certificate No. (IECEX) IECEXKEM06.0014U
IEC Ex certificate IECEXKEM06.0014U_e.pdf
Max. voltage (ATEX) 550 V
Current (ATEX) 21 A
Wire cross section max. (ATEX) 2.5 mm2
Max. voltage (IECEX) 550 V
Current (IECEX) 21 A
Wire cross section max. (IECEX) 2.5 mm2
Voltage, cross-connection CrossConnectionGuide.pdf
Operating temperature range For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7 Ex e II
Marking ATEX Directive 94/9/EC II 2 G D
| Type | SAK 2.5/35 |
| Brand | Weidmuller |
| Order No. | 380460000 |
| MOQ | 100PCS |
| Open sides | right |
| Type of mounting | Snap-on |
| Descriptive text technical data | With twin wire-end ferrules ZH 0.5 to ZH 1.5, the rated voltage is 690 V. |
| Insulating material | PA 66 |
| Material | PA 66 |
| Colour | Beige |
UL 94 flammability rating | V-2 |
| Weight | 6.33g |
Dimensions and weights
| Width | 6.1 mm |
| Height | 44.5 mm |
| Height of lowest version | 60.5 mm |
| Depth | 40 mm |
| Net weight | 6.33 g |
Package:
Carton box
Shipping: Air express
