Home > Products > Panel Meter > YB27VA DC 4.5-30V/10A Red LED Dual display Volt Amp Meter 2in1 Three wires Voltage Current Monitor Meter

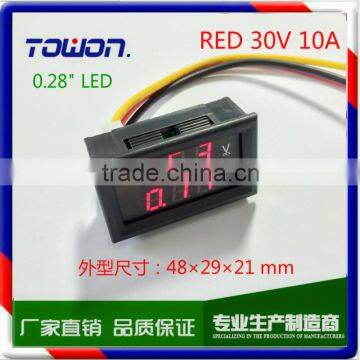

YB27VA DC 4.5-30V/10A Red LED Dual display Volt Amp Meter 2in1 Three wires Voltage Current Monitor Meter
US$ 3.50 - 3.50
/ Piece
100 Pieces(Min. Order)
- Shanghai ningbo
- Credit Card
You May Like
-
YB27VA Dual display Meter Red Blue LED Car 0-300V/10A Motorcycle DC Amp Meter Volt Gauge Voltmeter Ampere 2-in-1
-
Digital ammeter & voltmeter DC 4.5-30V & 50A with 50A shunt Red&Blue Led Dual Panel Volt Amp Combo Meter
-
Digital ammeter voltmeter DC 4.5-30V & 100A with 100A shunt Red&Blue Led Dual Panel Volt Amp Combo Meter Direct Mode
-
DC 4.5-30V 200A ammeter voltmeter Red&Blue Led Dual display Panel Volt Amp Combo Meter with 200A /75mv shunt
-
Dual display Meter YB27VA Red Blue LED Car 0-100V/999mA Motorcycle DC Amp Meter Volt Gauge Voltmeter Ampere 2-in-1
-
YB27VA DC 0-300V/300A Red/Blue Voltmeter Ammeter 2in1 Volt Amp Panel Meter for Car Motorcycle and DIY ect
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TOWON | |
| Model Number | YB27VA | Display Type | Digital Only | |
| Measuring Range | 30V 10A | Accuracy Class | 1% | |
| Operating Temperature | -10~60 | Dimensions | 48 x 29 x 21 mm |
Product Description
YB27VA DC 4.5-30V/10A Red LED Dual display Volt Amp Meter 2in1 Three wires Voltage Current Monitor Meter
Features:
-Dual LED: Red voltage, current, Display Voltage Current at same time
-this panel meter is common ground design, it means that the ( measure ground wire) and (power supply ground) is common ground.
-Power Supply DC 4.5-30V. With reverse polarity protection, but the max power supply can not exceed 30VDC.
Specific:
-Power Supply (Measure Voltage): DC 4.5-30V
-voltage < 10V, resolution: 0.01V
-voltage >= 10V, resolution: 0.1V
-Measure Current: 0-10A forward current ( No need shunt )
-Current Resolution: 0.1A
-Operating Current: <20mA
-Display: 0.28 "LED Dual-color (red and blue)
-Dimensions: 48 x 29 x 21 mm
-Cutting Size: 45 x 26 mm
-Measurement rate: ≥ 500mS / times
-Accuracy: 1% (± 1 digit )
-Operating Temperature: -10°c ~ +65°c
-Operating Humidity: 10 ~ 80% (non-condensing)
-Working pressure: 80 ~ 106kPa
-Applications:Suitable for industrial equipments/electronic equipment/automotive/electric cars/motorcycles battery monitoring or other --products voltage current measurement.
Wire Connection:
-COM: Black wire,Power Supply - , Measure Voltage -
-PW+: Red wire, Power Supply +, Measure Voltage +
-IN+, Yellow wire, Measure current input. if use the voltmeter function only, please connect the Yellow wire and black wire together to avoid the Interferenc
