Home > Products > Cable Gland > Hot Sale IP68 Waterproof Nylon Plastic White Cable Gland Connector PG9 for 4-8mm Water Joint
Hot Sale IP68 Waterproof Nylon Plastic White Cable Gland Connector PG9 for 4-8mm Water Joint
US$ 0.04 - 0.04
/ Piece
10000 Pieces(Min. Order)
- Shanghai ningbo
- Credit Card
You May Like
-
PG11 Cable Gland IP68 Waterproof Connector Diameter 5-10mm Nylon Plastic Wire Glands
-
PG13.5 Cable Gland IP68 Waterproof Connector Diameter 6-12mm Nylon Plastic Wire Glands
-
Wholesale PG16 Waterproof Connector Gland Dia. 10~14mm Cable IP68
-
PG19 Cable Glands Nylon Plastic, Waterproof Cable Connectors Spiral Fixed IP68 for 12-15mm Cable
-
CE High Quality 100PCS Hot Sale IP68 Waterproof Nylon Plastic Cable Gland Connector PG21 for 13-18mm Cable
-
6mm-21mm Cable Range PG25 Nylon Plastic IP68 Waterproof Cable Glands
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TOWON | |
| Model Number | PG9 | Protection Level | IP68 | |
| Size | PG9 4-8mm | Material | Nylon |
Product Description

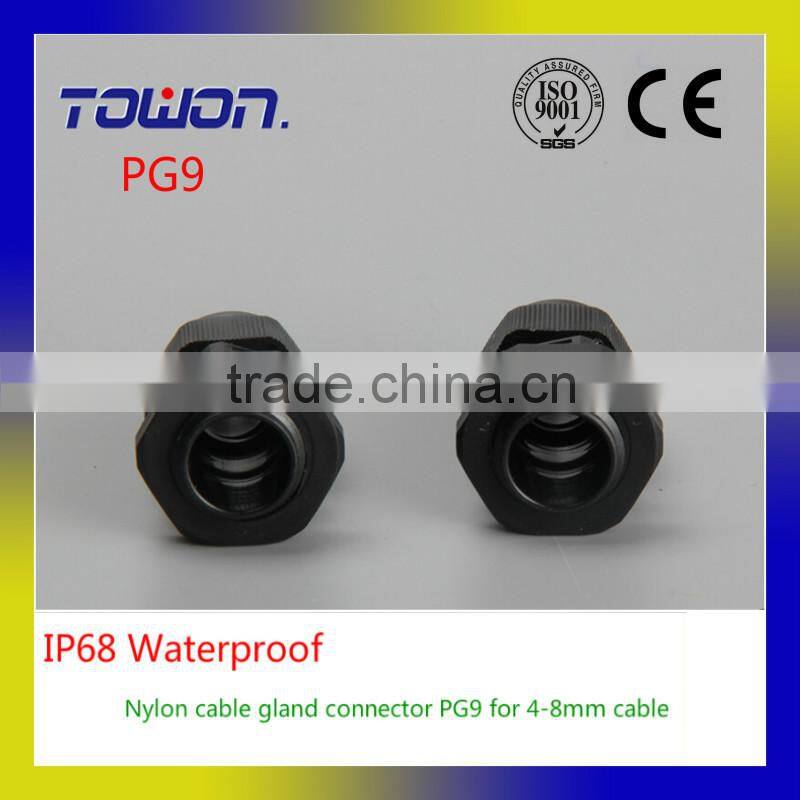

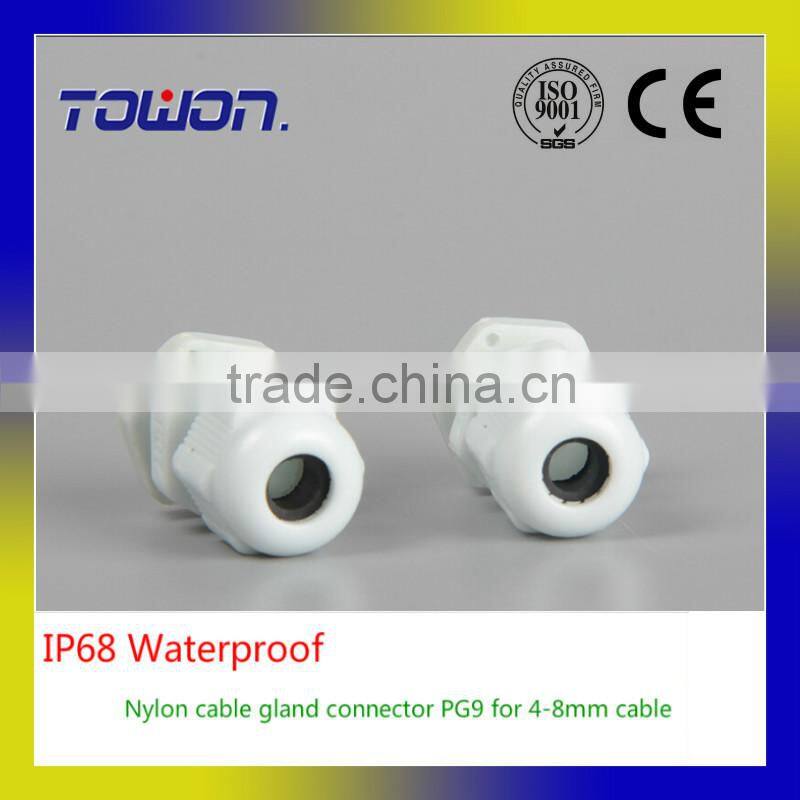

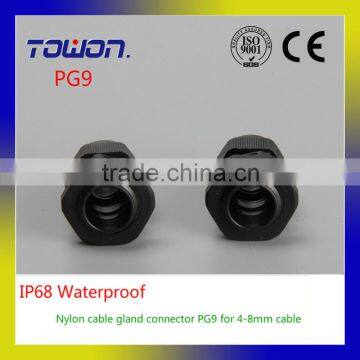

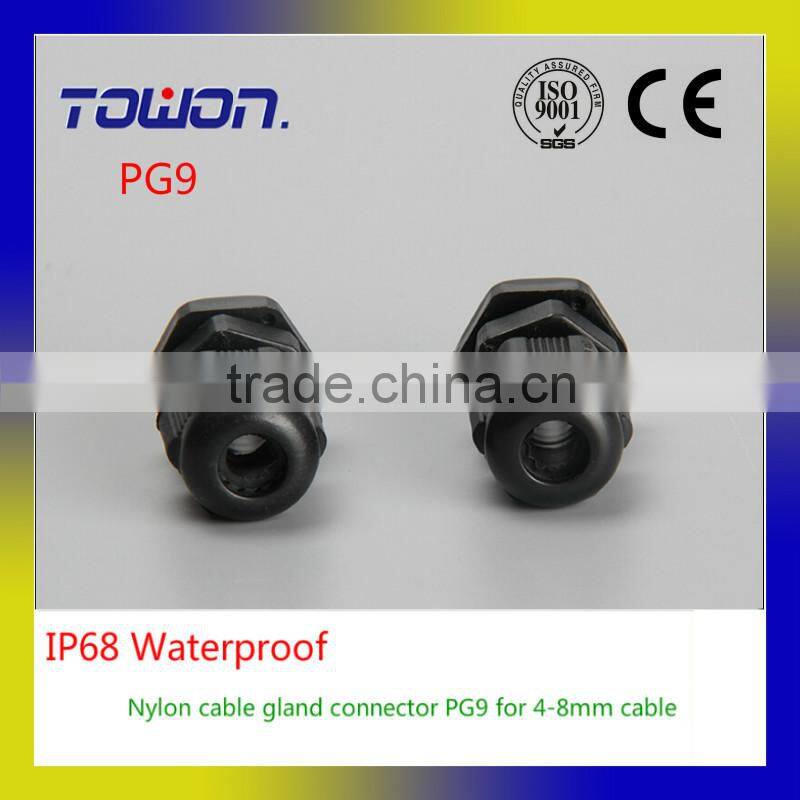

PG9Cable Gland
IP68 Waterproof Cable Connector Diameter 4-8mm
PG SIZE:
| Item No. | Cable range(mm) | Cut pole(mm) | GL(mm) | H(mm) | Spanner size |
AG(mm) |
| PG7 | 3-6.5 | Φ12.6-13 | 8 | 22 | 16 | 12.5 |
| PG9 | 4-8 | Φ15.3-15.5 | 8 | 26 | 19 | 15.2 |
| PG11 | 5-10 | Φ18.7-19 | 8 | 27 | 22 | 18.6 |
| PG13.5 | 6-12 | Φ20.5-21 | 9 | 28 | 24 | 20.4 |
| PG16 | 10-14 | Φ22.6-23 | 10 | 30 | 27 | 22.5 |
| PG19 | 12-15 | Φ24.2-24.5 | 10 | 30 | 27/28 | 25 |
| PG21 | 13-18 | Φ28.5-29 | 10 | 35 | 33 | 28.3 |
| PG25 | 16-21 | Φ30.2-30.5 | 11 | 37 | 35/36 | 29.9 |
| PG29 | 18-25 | Φ37.2-37.5 | 12 | 40 | 41/42 | 37 |
| PG36 | 22-32 | Φ47.3-48 | 14 | 48 | 52/53 | 47 |
| PG42 | 32-38 | Φ54.5-55 | 14 | 49 | 60/61 | 54 |
| PG48 | 37-44 | Φ60-61 | 14 | 50 | 64/65 | 59.3 |
| PG63 | 42-50 | Φ71.5-72 | 27 | 60 | 72 | 70.1 |
PACKING DETAIL
| Item No. | qty | weight | Item No. | qty | weight |
| PG7 | 100 | 0.43kg | M12 | 100 | 0.43kg |
| PG9 | 100 | 0.63kg | M16 | 100 | 0.63kg |
| PG11 | 100 | 0.73kg | M18 | 100 | 0.73kg |
| PG13.5 | 100 | 1.05kg | M20 | 100 | 1.05kg |
| PG16 | 100 | 1.25kg | M22 | 100 | 1.25kg |
| PG19 | 100 | 1.25kg | M25 | 100 | 1.25kg |
| PG21 | 100 | 2.2kg | M27 | 100 | 2.2kg |
| PG25 | 100 | 2.5kg | M30 | 100 | 2.5kg |
| PG29 | 50 | 1.8kg | M36 | 50 | 1.8kg |
| PG36 | 20 | 1.35kg | M40 | 20 | 1.35kg |
| PG42 | 20 | 1.55kg | M50 | 20 | 1.55kg |
| PG48 | 20 | 1.75kg | M63 | 20 | 1.75kg |
| PG63 | 10 | 1.7kg | M70 | 10 | 1.7kg |
