Home > Products > Panel Meter > Dual display Ammeter Voltmeter DC 0~100V/20A Digital Voltage Current Meter 2in1 Volt Amp Gauge + Current Transformer
Dual display Ammeter Voltmeter DC 0~100V/20A Digital Voltage Current Meter 2in1 Volt Amp Gauge + Current Transformer
US$ 10.00 - 10.00
/ Piece
100 Pieces(Min. Order)
- Shanghai ningbo wenzhou
- Credit Card
You May Like
-
Double Display YB28VA DC Digital 10A Voltmeter Ammeter Digital DC Voltage Ammeter
-
LCD 199.9V & DC50A amp volt combo meter with shunt , power supply AC220V
-
Professional manufacture high quality 100PCS Hot Sale IP68 Waterproof Nylon Plastic Cable Gland Connector PG7 for 3-6.5mm Cable
-
Hot Sale IP68 Waterproof Nylon Plastic white Cable Gland Connector PG9 for 4-8mm water joint
-
PG11 Cable Gland IP68 Waterproof Connector Diameter 5-10mm Nylon Plastic Wire Glands
-
PG13.5 Cable Gland IP68 Waterproof Connector Diameter 6-12mm Nylon Plastic Wire Glands
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TOWON | |
| Model Number | YB28VA | Display Type | Digital Only | |
| Measuring Range | 300V 20A | Accuracy Class | 1% (+ /-1) | |
| Supply Voltage | DC4.5-30V | Operating Temperature | -10~+65 | |
| Dimensions | L54*W30*H21mm |
Product Description
Dual display Voltmeter Ammeter DC 0~100V/20A Digital Voltage Current Meter 2in1 Volt Amp Gauge + Current Transformer
2in1 Current Meter Voltage Meter DC 0~300V/50A Digital Voltmeter Ammeter DC 12V 24V Volt Amp Meter + Current Transformer
Parameter:
- Wiring hole diameter: 8.5 mm

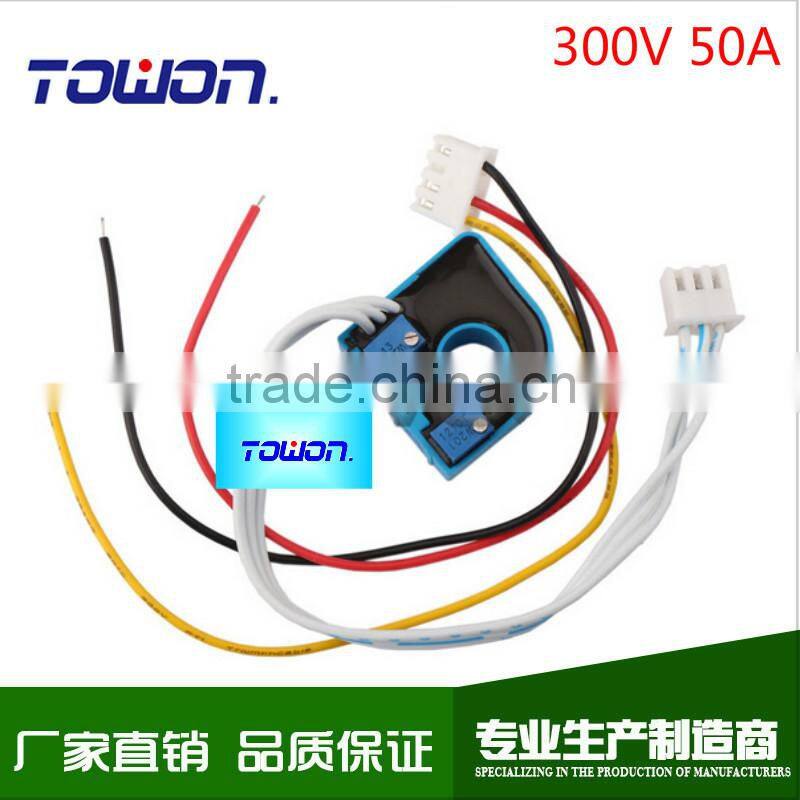

- Transformer dimension : L23.3 x W23 x T9.3 mm
- Measure Voltage range: 0.0~100V
- Resolution: 0.01(less than 100V);0.1(>100V)
- Resistance: > 1M
- Measure Current Range: +/- 0.0~20.0A
- Resolution: 0.1
- Power supply voltage: DC 4~30V(Note: the max voltage input should not be larger than 30V, or it will burn out)
- Working current: <30mA
- Display color: red+red
- Testing rate: ≥500mS/per time
- Measuring accuracy: 1%(+/-2 words)
- Extreme working conditions:
- Lowest power supply voltage: +4.0V
- Max power supply voltage: +30V
- Working temperature: -10 to 65 Celsius
- Operating humidity: 10 to 80%(No condensation)
- Working pressure: 80 to 106kPa
- Direct sunshine: NO(please prevent direct sunshine)
