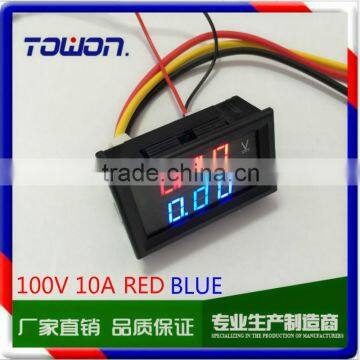

Dual LED Digital DC100V 10A Voltmeter Ammeter Voltage Amps Meter Power DC4.5~30V

-2 in 1 function Voltmeter Ammeter

- Dual color LED Display (Blue andRed)

- Voltages and Amps reading at the same time in display

-This meter test of Voltages and Amps, power supply can taken from the test circle, no additional power supply

- Power supply DC 4.5~30V range (Attention: The maximum of input voltage cannot be exceed of 30V, otherwise would be burnt)

-This meter have three wire for easy to connect a car /battery car/ motorcycle car which can monitor to the battery voltage status. Another products can also use for voltage and current measurement intent.

Features:

-Dual 0.28 " LED, display (Blue and Red) colors

-Power supply DC4.5V~30V

-Measuring range: DC0V~100V (Resolution: 0.1V), DC0~10A (Resolution: 0.01A),50A,100A( Resolution: 0.1A)

-0-10A No need use shunt for measure amps,More than 10A need use shunt

-Measurement rate: ≥ 500mS / times

-Measurement accuracy: 1% ± 1

-Operating Current <60mA
-Operating Temperature: -10°C to +65°C
-Operating Humidity: 10 to 80% (non-condensing)
-Working pressure: 80 ~ 106kPa
-Sun exposure: no direct exposure

-Dimensions: 48 × 29 × 21 mm
-Cutout: 45.5 × 26.5 mm
