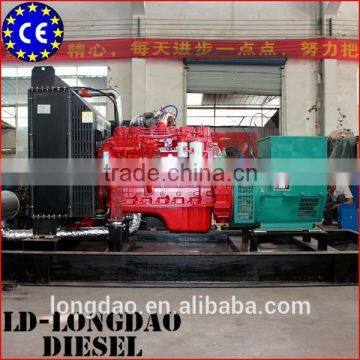

LD Brand 3phase Diesel Generator 125kva
- 2000 Set / Sets per Month
- Shenzhen/Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangxi, China | Brand Name | LD | |
| Model Number | 100GF | Output Type | AC Three Phase | |
| Speed | 1500r/min | Frequency | 50Hz/60Hz | |
| Rated Power | 110kw/125kva | Rated Voltage | 230/400V | |
| Rated Current | 180A |
Product Description
Specifications
Diesel Generator 100kw1.Stamford Technology Alternator
2.CE&ISO9001:2008
Main Product: diesel engine, diesel generator, alternator and spare parts;
Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,
fire pump, construction machine, etc;
Diesel Engine Power Range: from 20kw up to 700kw;
Diesel Generator Power Range: from 30kw up to 700kw.
LD Brand 3phase Diesel Generator 125kva Technical Parameters
| Genset Model (LD Brand) | LD100GF | |
| Rated Power/Speed (kw/r/min) | 100/1500 | |
| LD Diesel Engine | Engine Model | LD6BAT5.9-G1 |
| Rated Power/Speed kw/r/min | 110/1500 | |
| Type | Vertical,inline,water-cooled,four stroke | |
| Intake Way | Turbocharged&intercooled | |
| Number of cylinders×bore×stroke(mm) | 6-102×120 | |
| Total dispalcement(L) | 5.9 | |
| Min fuel consumption (g/kw.h) | ≤195 | |
| Starting type | Electric | |
| Speed governor model | Mechanical | |
| Oil capacity(L) | 14~16 | |
| Low noise limit dB(A) | 98 | |
| Wattek Alternator (Stamford Technology) | Alternator nodel | 274D |
| Rated voltage(V) | 400/230 or 380/220 | |
| Current(A) | 180 | |
| Freq(Hz) | 50 or 60 | |
| Regulator approach | AVR | |
| Power factor(CosØ) | 0.8 Lagging | |
| Phase | 3Phase 4Wire | |
| Insulation Class | F/H | |
| Protection Class | IP22/IP23 | |
| Genset Packing | Net weight(kg) | 800 |
| Genset dimension L*W*H(mm) | 3000×1150×1450 | |
LD Brand 3phase Diesel Generator 125kva Maintenance Service
1.Warranty interms will be issued by our factory,which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent(include sea freight and insurance)to buyers witthout charges;
4.Easy torn parts are excluded in the warrenty,like plugs,condenser,fuse,battery,seal;
5.Problems cased by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhaul and ordinary maintance will be offered by us in factory price;
7.Skillful engineers of us are available dispatched top cuatomers palce for training and service.
| Ms.Miranda Wang (export/sales manager) Tel: +86 18276782715 Fax: +86 (0)772 2875155 Email: longdao04(at) Skype: LDmirandawang QQ:961156293 |
