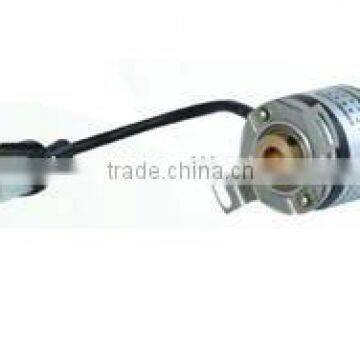

Rotary Encoder, IHC3808 8mm Semi Hollow Shaft Rotary Encoder, 8mm Hollow Shaft Optical Encoder, Rotary Sensor Switch (IBEST)
USD $38 - $48
/ Piece
2 Pieces(Min.Order)
- 10 Piece / Pieces per Month
- Zhongshan Port
- Credit Card
You May Like
-
ISL5810 CNC Machine Rotary Encoder, Flange Rotary Encoder, Heavy Duty Torque Rotary Encoder, Elevator Rotary Encoder (IBEST)
-
AC DC Motor Optical Encoder, 5000 P/R Rotary Encoder, TTL RS442 Rotary Encoder, Elevator Lift Rotary Encoder (IBEST ISC5810)
-
10mm Hollow Shaft Encoder, Hollow Through Shaft Rotary Encoder, Hollow Optic Optical Rotary Encoder IBEST
-
Incremental Rotary Encoder, Optic Optical Rotary Encoder,CNC lathe Rotary Encoder (IBEST ISC5208 )
-
5mm Solid Shaft Compact Rotary Encoder,incremental optical rotary encoder, incremental shaft encoder 24v (ISC3005)
Quality Choice
-
ISC3004 Incremental Rotary Encoder, Solid Shaft Optical Rotary Encoder,Small Rotary Encoder (IBEST)
Product Details
| Place of Origin | Guangdong, China | Brand Name | IBEST | |
| Model Number | IHC3808 | Max. Current | 100mA | |
| Max. Voltage | DC 5V or DC5~24V | Mechanical Life | 100 M times |
Product Description
Specifications
IHC3808 Semi-Hollow Shaft Rotary Encoder1.Pulse (per revolution): 100, 300, 500, 1000, 1024, 1200, 2000
2.DC 5~24V
1. Features of IHC3808 Series Rotary Encoder :
- Connected with service shaft by hollow shaft and plate spring directly.
- Excellent dynamic characteristic, convenient installation reliable.
- Suitable for various AC and DC servo motor.
- 8mm semi hollow through shaft.
- Outside dimension: 38mm
- No. Of pulse per revolution: 100, 200, 300, 500, 1000, 1024, 1200, 2000...Etc.
- DC 5V, DC 12~24V
| 2.Technical Specification | |
| Output Wave | Square Wave |
| Standard number of pules per revolution | 100 200 256 300 400 500 512 600 720 800 900 1000 1024 1200 1250 1500 1800 2000 2048 2500....etc |
| Power Supply | DC5-30V DC5V |
| MAX.Response | 0KHZ-200KHZ |
| Current consumption | ≤60mA |
| Mechanical spec. | |
| The main material | Aluminum |
| Shell material | Aluminum |
| the axis diameter | 8mm |
| Shaft loading | Axial:10N / Radial: 20N |
| Starting torque | ≤10g.cm(+25 C) |
| MAX.SPEED | 6000rpm |
| Vibration | ≤100m/s 2 (5~2000HZ) |
| Shock | ≤1000m/s 2 (11ms) |
| weight | ≤0.2kg |
| Environmental spec | |
| operating Temp | -10C~70C |
| operating Humidity | 30~85%RH |
| storage Temp | -30~80C |
| protection grade | IP54 |
3. Ordering Code
IHC3808-401G600BZ1-12-24C
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
Welcome to contact us!
IBEST ELECTRICAL CO.LTD
wwwibestchinacom
