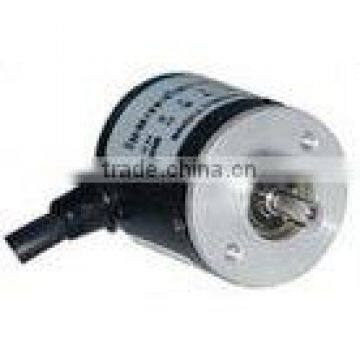

ISC3806 6mm Solid Shaft Optical Rotary Encoder,Injection molding machine Rotary Encoder, DC AC Motor Rotar Encoder (IBEST)
USD $40 - $60
/ Piece
2 Pieces(Min.Order)
- 30000 Piece / Pieces per Month
- Zhongshan Port
- T/T
You May Like
-
ISN4005 Flange Solid Shaft Rotary Encoder,Incremental Rotary encoder,IP65 Water Resistant Rotary Encoder Switch (IBEST)
-
Rotary encoder, Incremental Rotary Encoder,Optical Solid shaft encoder,Optic Rotary Encoder IBEST
-
ISN4406 Solid Shaft Rotary Encoder, Incremental Rotary Encoder, Optical Rotary Encoder, Motor Rotary Encoder IBEST
-
Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST)
-
Small Rotary Encoder, Optical Encoder, Incremental Rotary Encoder
-
8mm Solid Shaft Rotary Encoder, Incremental Encoder ,Shaft encoder, Rotary switch Sensor, CNC lathe Rotary Encoder (IBEST)
Product Details
| Place of Origin | Guangdong, China | Brand Name | IBEST | |
| Model Number | ISC3806-401G |
Product Description
Specifications
Shaft rotary encoder 38061.Encoder shaft 6mm ,D=38mm
2.Various number of pulses(10-2500p/r)
3.Output:Liner driver /Voltage..
1. FEATURES of IBEST Shaft rotary encoder (ISC 3806 50-3600 PPR):
* Solid Shaft Incremental Rotary Encoder
* Outside diamter:38mm; Solid shaft: 6mm
* Output: ABZ or ABZA-B-Z-signals
* DC5V~24V power supply.
* Complete hollow shaft encoder, suitable for power motor.
* No. of impulse: 50, 100, 200, 360...2500P/R or 3600 PPR.
* Output wave: square wave.
* Response requency: 0~100K HZ
* Output phase difference: 90 degree +/- 45 degree.
* Output: open collector NPN, or TTL or Linedriver or Voltage.
* Speed without sealing: 5000RMP.
* Rotor inertia of code wheel: Appr. 3.5*10(-6)Kgm2
* Starting torque without sealing: < or = 1.5X, 10-3 Nm (+25 C)
* Max. torque without sealing: radial 20N, Axial 10N.
* Shock resistance: 980M/S2, 6ms, 2 times each on XYZ
* Viration proof: 50/ms2, 10~200Hz, 2 hours each on XYZ
* Working life: MTBF> or = 25000h (+25 C, 2000 RPM)
* Protection IP54.
| 2. Ordering Code: (Shaft Incremental rotary encoder 3806) | ||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||
| 3. Technical Specifications: | ||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
Welcome to contact us!
