Home > Products > Rotary Encoder > ISC3004 Small Rotary Encoder, 4mm Solid Shaft Optical Rotary Encoder, Rotary Sensor Switch (IBEST)

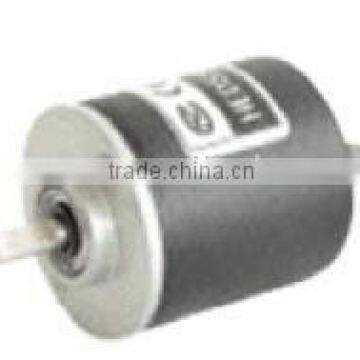

ISC3004 Small Rotary Encoder, 4mm Solid Shaft Optical Rotary Encoder, Rotary Sensor Switch (IBEST)
USD $40 - $45
/ Piece
2 Pieces(Min.Order)
- 10 Piece / Pieces per Month
- Zhongshan Port
- Credit Card
You May Like
-
6mm Solid Shaft Cheap textile machine Rotary Encoder, Weaving machine Rotary Encoder, Incremental Optic Rotary Encoder (IBEST)
-
ISC3806 6mm Solid Shaft Optical Rotary Encoder,Injection molding machine Rotary Encoder, DC AC Motor Rotar Encoder (IBEST)
-
ISN4005 Flange Solid Shaft Rotary Encoder,Incremental Rotary encoder,IP65 Water Resistant Rotary Encoder Switch (IBEST)
-
Rotary encoder, Incremental Rotary Encoder,Optical Solid shaft encoder,Optic Rotary Encoder IBEST
-
ISN4406 Solid Shaft Rotary Encoder, Incremental Rotary Encoder, Optical Rotary Encoder, Motor Rotary Encoder IBEST
-
Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST)
Product Details
| Place of Origin | Guangdong, China | Brand Name | IBEST | |
| Model Number | ISC3004 |
Product Description
Specifications
Shaft Encoder1.Outside D=30mm,Shaft 4mm
2.100~500 P/R, DC 12~24V
3.0utput: open collector, voltage, push pull ,line driver
1. Features of Incremental Shaft Encoder (ISC3004) :
- Have small volume, weight is light, install it conveniently, the interchangeability is good, the work life is long.
- External diameter: 30mm, the hole of the axle 15mm, the fixture mouth 4mm solid shaft, side the aerial socket entry.
- Adapt to the exact environment and so on.
2.Ordering code (Incremental shaft encoder 3004)
ISC3004-901E360B-5L
3.Technical Specification
| Property project | Specific parameter |
| Out wave & duty ratio | square wave & 0.5T±0.1T |
| Current Consumption | ≤100mA |
| Response frequency | 0-100KHz |
| Max.permissible revolution | 3000rpm |
| Moment of inertia | 3.5*10-6Kg.m2 |
| Starting torque | 1.5*10-3Nm |
| Shaft loading | Radical:15N / Thrust :10N |
| IP rating | IP54 |
| Operate & Stock temperature | -25C-80C / -40C-100C |
| Ambient humidity | 30-85%(with no condensation) |
| Power supply | DC+5V±5% / +5-12V / +12-24V |
| Shock resistance | 980m/s2,6ms,2 times each in X,Y,Z directions |
| Vibration resistance | 50m/s2,10-200Hz,2 times each in X,Y,Z directions |
| Operating life | MTBF≥20000h (+25C,2000rpm) |
| Output voltage | Vh≥85% Vcc,Vi≤0.3V |
| Weight | 0.1kg |
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
Welcome to contact us!
