Product Details
| Condition | New | Type | Rotary Drying Equipment | |
| Place of Origin | Henan, China | Brand Name | Songshan | |
| Model Number | HGJ1818 | Voltage | As customers' request | |
| Power(W) | 22kw | Dimension(L*W*H) | 18000mm (length) | |
| Weight | 45000 kg | Certification | CE & ISO & CCC & BV | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

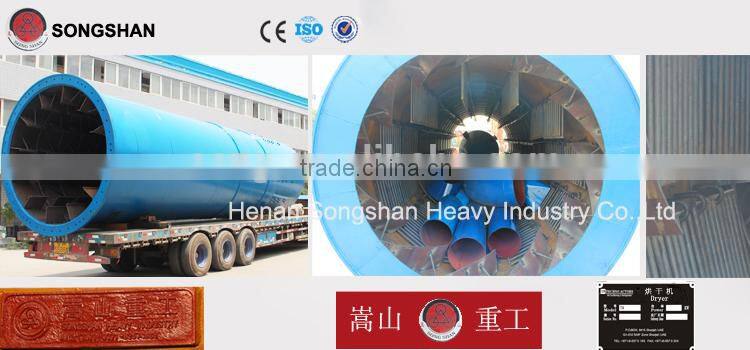

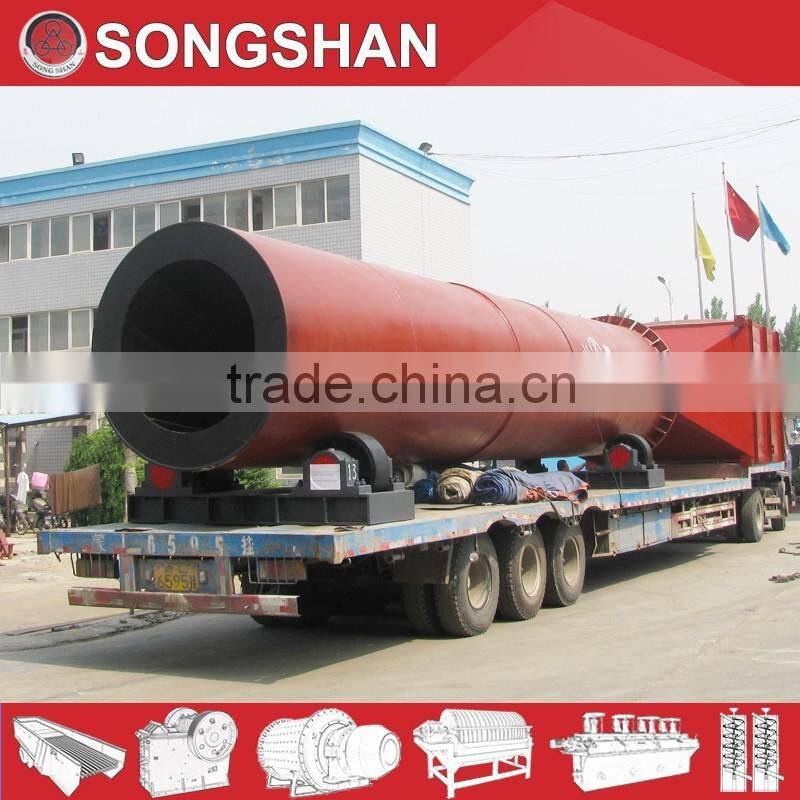

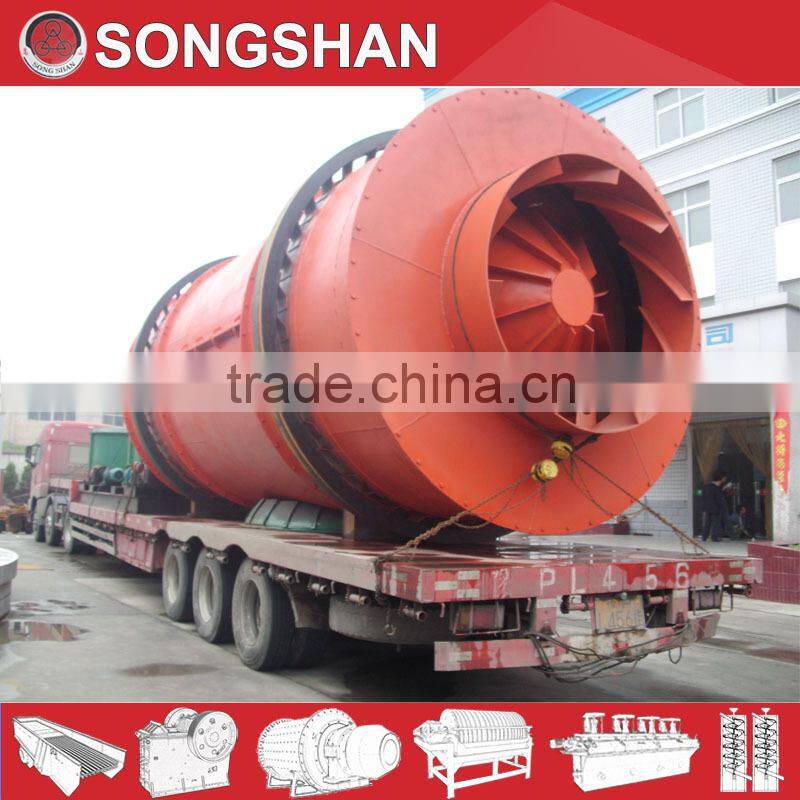

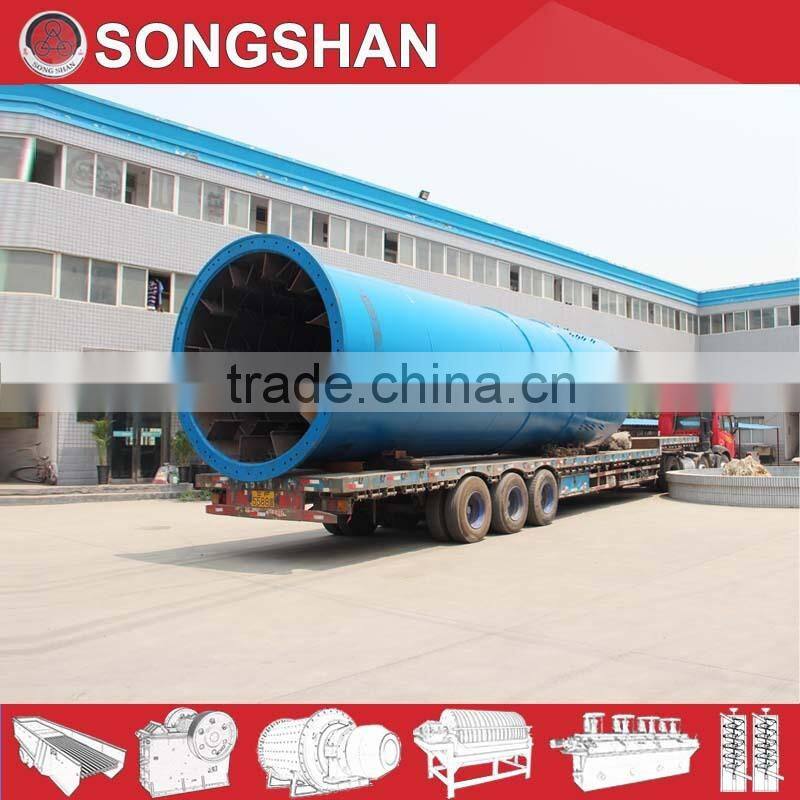

High efficiency rotary dryer made in China
1.Descipton of the high efficiency rotary dryer made in China
Rotary dryer ,which also known as rotary drum dryer is widely used in a variety of materials
drying operations.
Rotary dryer is widely used in building materials,mineral dressing, metallurgy, chemical industry
and cement industry, which is widely used to dry the stuff such as limestone, coal powder, slag and
clay. It can also be mixed with some materials by drying sticky paste materials or materials with
higher water content. Commonly used in dry sand, slag, coal, animal waste and so on.

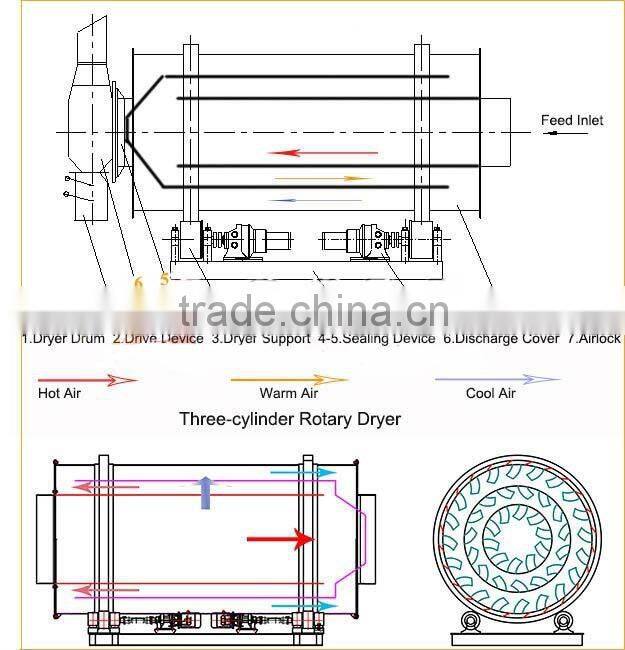

2. Main structure of the high efficiency rotary dryer made in China
Rotary dryer mainly consists of revolving part, raising stuff plate, driving device,
supporting device and seal ring.
3. Features of the high efficiency rotary dryer made in China
1. The machine’s design is reasonable, have reliable performance, high efficiency, dry and heat
uniform, maintenance convenient.
2. Equipment adopts self-aligning type tug structure, the tug and with good tire- roller, greatly
reduces the wear and tear of power consumption.
3. Resistance to overload ability, cylinder smooth operation and high reliability.
4. Drying machine has the characteristics of high temperature resistant, high temperature hot air can
be used for a rapid drying of material.
5. Drum dryer processing capacity, fuel consumption, dry low cost less.
4. Operating principles of the high efficiency rotary dryer made in China
The raw material plate which is arranged reasonably with changeable angles in order, throws
moisture materials into the rotary cylinder. Then water will be separated from the materials by hot
air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would
be dried.
5. Main parameters of other types of the high efficiency rotary dryer made in China
Model | Size of cylinder | Rotate Speed (r/min) | Power (kw) | Weight (kg) | ||
Diameter(mm) | Length(mm) | Slope(°) | ||||
HG1012.00 | 1000 | 12000 | 3-5 | 6.5 | 7.5 | 13236 |
HG1212.00 | 1200 | 12000 | 3-5 | 5.5 | 11 | 15756 |
HG1512.00 | 1500 | 12000 | 3-5 | 4.02 | 15 | 17430 |
HG1814.00 | 1800 | 14000 | 3-5 | 4.59 | 18.5 | 27263 |
HG2014.00 | 2000 | 14000 | 3-5 | 4.59 | 18.5 | 31688 |
HG2214.00 | 2200 | 14000 | 3-5 | 4.59 | 22 | 37431 |
HG2414.00 | 2400 | 14000 | 3-5 | 3.6 | 30 | 46197 |
HG2818.00 | 2800 | 18000 | 3-5 | 3.12 | 45 | 89332 |
HG3020.00 | 3000 | 20000 | 3-5 | 3.67 | 55 | 95505 |
HG3222.00 | 3200 | 22000 | 3-5 | 3.4 | 75 | 141627 |
HG3624.00 | 3600 | 24000 | 3-5 | 3.1 | 110 | 188627 |
JHG1214.00 | 1200 | 14000 | 3-5 | 5.99 | 11 | 17382 |
JHG1816.00 | 1800 | 16000 | 3-5 | 5.48 | 22 | 39587 |
JHG2016.00 | 2000 | 16000 | 3-5 | 4.59 | 30 | 61912 |
JHG2227.00 | 2200 | 27000 | 3-5 | 4.58 | 37 | 79263 |
JHG2418.00 | 2400 | 18000 | 3-5 | 3.12 | 37 | 66735 |
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators on site.
4. Examine the equipment regularly.
5. Take initiative to eliminate the troubles rapidly at site.
6. Distribute the guarantee fittings door-to-door.
7. Provide perfect service.
8. Provide technical exchanging.

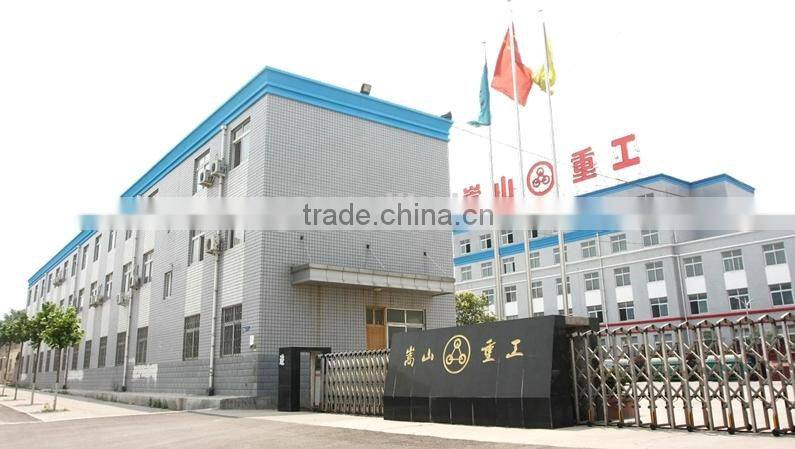

Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by National Construction
Department,has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines, such
as Jaw Crushers, Impact Crushers,Mobile Crushers, Cone Crushers,Double Roller Crushers,
Raymond Mills, Ultrafine Mills,Ball Mills, Flotation Separators, Magnetic Separators, Rotary Kilns,Rotary Dryers, Shaking Tables and Sand Making Machines.
Our products have received the ministerial and provincial honors. Due to the high quality and perfect
after sales service, our products have won trust and good comments from our customers and taken the
lead in the machinery fields.
Company's certificate
Customer visiting

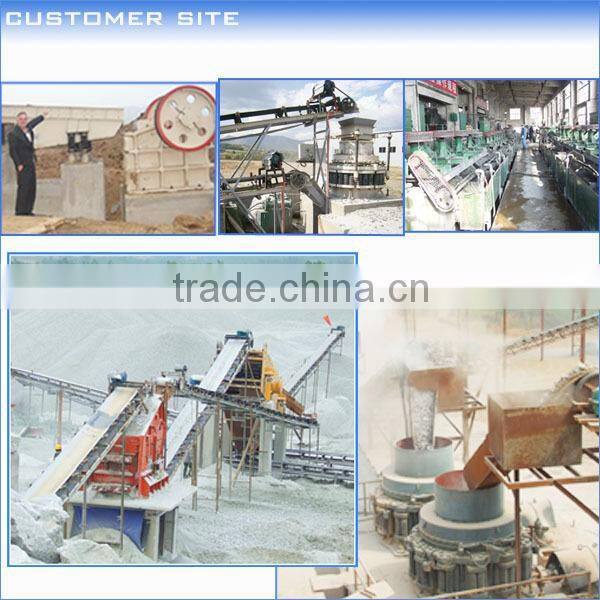

Customer site
Please don’t hesitate to inform us:
1.What's the kind of raw materials ?
2.What is the input moisture of raw materials?
3.What is the output moisture of products?
4.What's the capacity ? (T/H)
5. Others?
