Famous Rotary Kiln for Cement Making Plant
- Qingdao Shanghai or Tianjin
- T/T
You May Like
Product Details
| Condition | New | Production Capacity | 1.2-1.9 TPH | |
| Place of Origin | Henan, China | Brand Name | Songshan | |
| Model Number | 1.6*36 | Voltage | As per requirements | |
| Power(W) | 22000w | Dimension(L*W*H) | 1.6m*36m | |
| Weight | 52t | Certification | CE & ISO & CCC & BV | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Famous rotary kiln for cement making plant
1. Description of famous rotary kiln for cement making plant
The rotary kiln for cement making plant produced by Songshan Machinery has advanced
structure. It can effectively improve preheating effect with its low resistance vertical preheater.
After the limestone is preheated,the feeding decomposition rate can reach 20%-25%, thus can
directly make use of 10-15mm fine fraction limestone.
The reliable airtight two-ends combination squama make the air leakage factor under 10%. The
usage of compound refractory reduces radiation loss.
2. Structures of famous rotary kiln for cement making plant

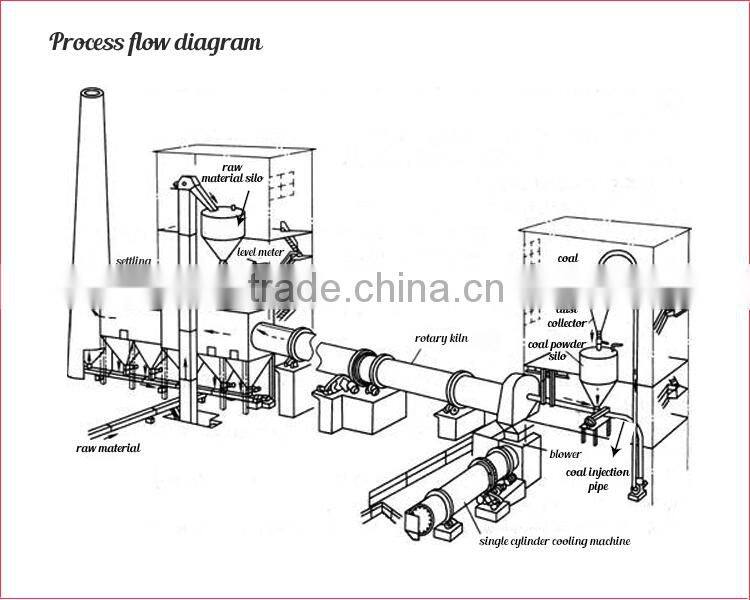

The rotary kiln for cement making plant mainly consists of kiln body, loading device, burning
device, unloading device,electronic appliance, dust collector, etc. Different lime kilns have different
structures.Their process flow are almost same.But the equipment value has big distinction, of course
the results are different.
3. Features of famous rotary kiln for cement making plant
1.High productivity
2.Low heat consumption
3.Stable clinker quality
4.High ecomomic efficiency
4.Types of famous rotary kiln for cement making plant
1.Cement kiln,
2.Metallurgy chemical kiln
3. Lime kiln
4.Building material kiln
5.Calcined petroleum coke rotary kiln
5.Technical parameters of famous rotary kiln for cement making plant
Model | Diameter (m) | Length (m) | Slope (%) | Capacity (t/h) | Speed (r/min) | Motor Power (kw) | Weight (T) | Note |
φ1.4×33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 | ----
|
φ1.6×36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 | ----
|
φ1.8×45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 | ----
|
φ1.9×39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 | ----
|
φ2.0×40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 | ----
|
φ2.2×45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 | ----
|
φ2.5×40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 | ----
|
φ2.5×50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 | ----
|
φ2.5×54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 | ----
|
φ2.7×42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 | ----
|
φ2.8×44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 | Decomposition Outside kiln |
φ3.0×45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 | ----
|
φ3.0×48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.48 | 100 | 237 | Decomposition Outside kiln |
zφ3.0×60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 |
----
|
φ3.2×50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 | Decomposition Outside kiln |

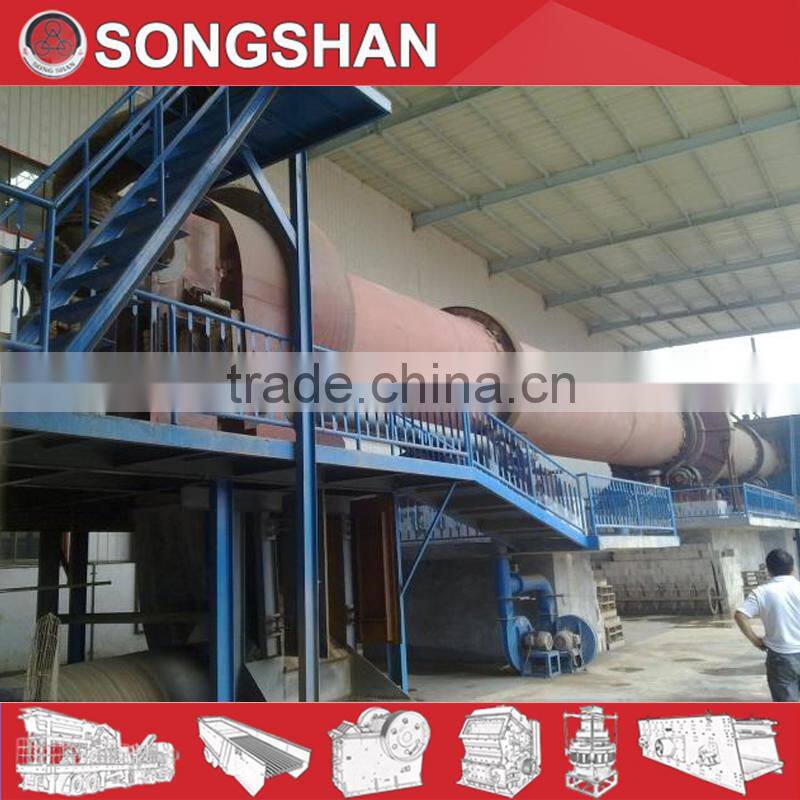

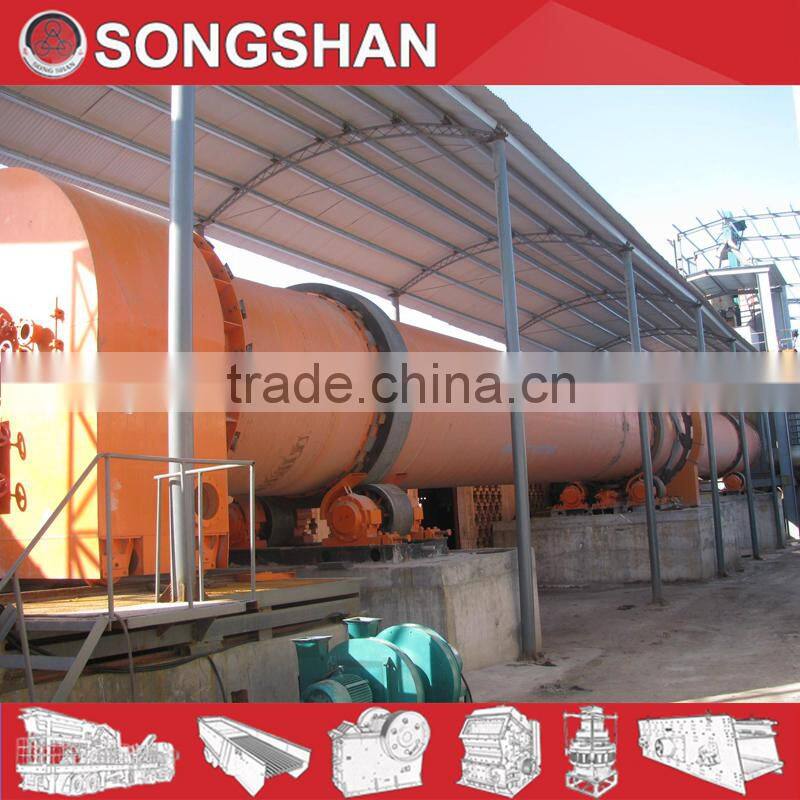

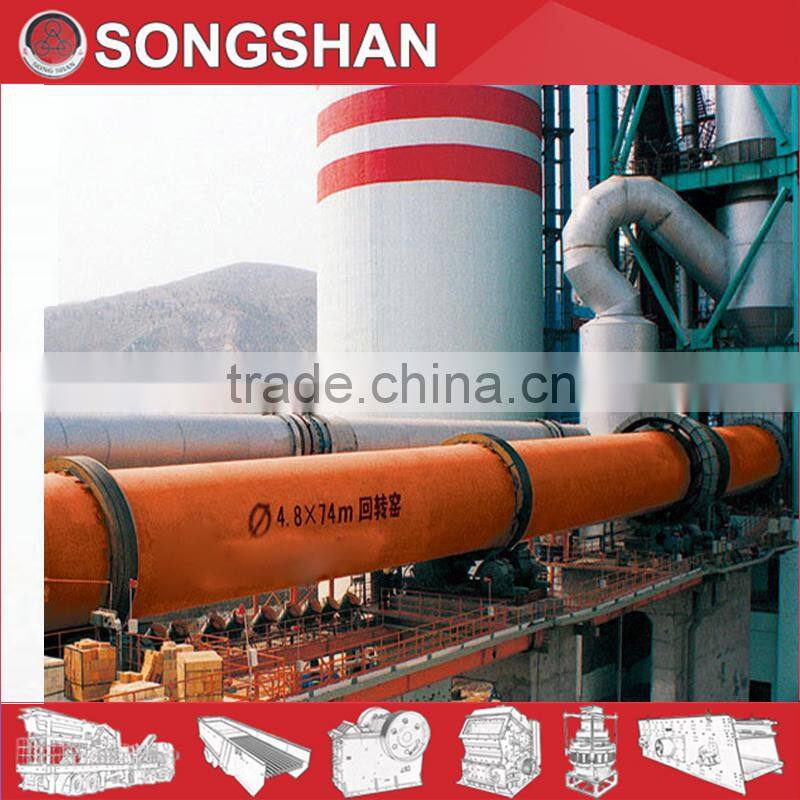

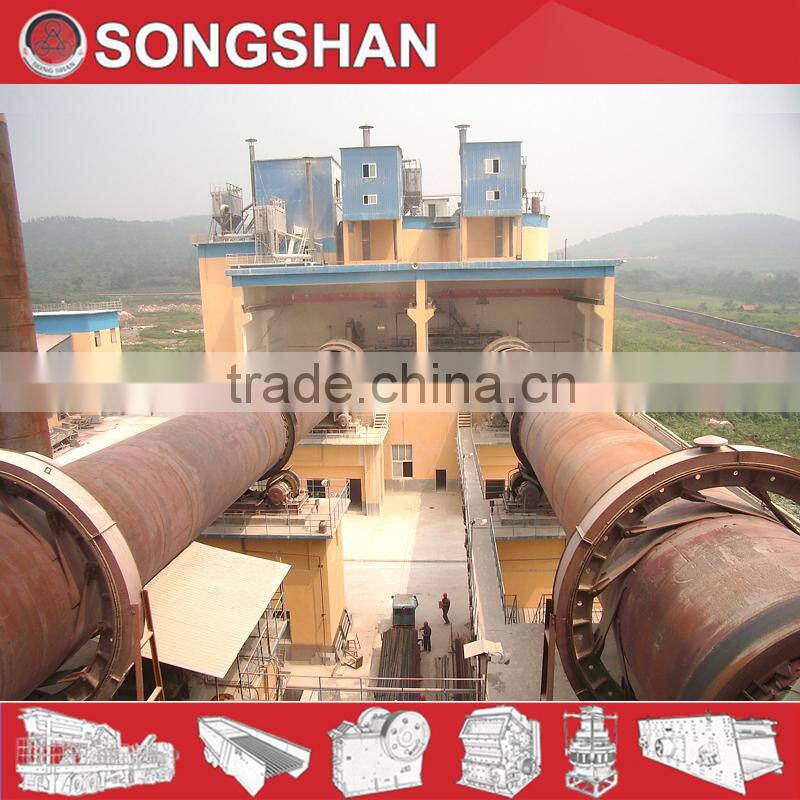

Customer's operation sites
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.
2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.
Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by National Construction
Department,has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines, such
as Jaw Crushers, Impact Crushers,Mobile Crushers, Cone Crushers,Double Roller Crushers,
Raymond Mills, Ultrafine Mills,Ball Mills, Flotation Separators, Magnetic Separators, Rotary Kilns,Rotary Dryers, Shaking Tables and Sand Making Machines.
Our products have received the ministerial and provincial honors. Due to the high quality and perfect
after sales service, our products have won trust and good comments from our customers and taken the
lead in the machinery fields.
Customer visiting
Contact Us
- Henan Songshan Heavy Industry Co., Ltd.
- Contact nameChen Du Chat Now
- Phone86-371-62574888
- AddressJianshe Road, Longhu Developing district, Zhengzhou, Zhengzhou, Henan
