Home > Products > graphite plate > Expandable/Flexible Graphite Paper Supplier From China
Expandable/Flexible Graphite Paper Supplier From China
- Any China main sea port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | JS | |
| Model Number | BJ | Type | Flexible Sheet | |
| Application | Heat transfer, smart phone,blue-ray | Thickness | as per requirement | |
| Grade | Industrial Grade | C Content (%) | 99% |
Product Description

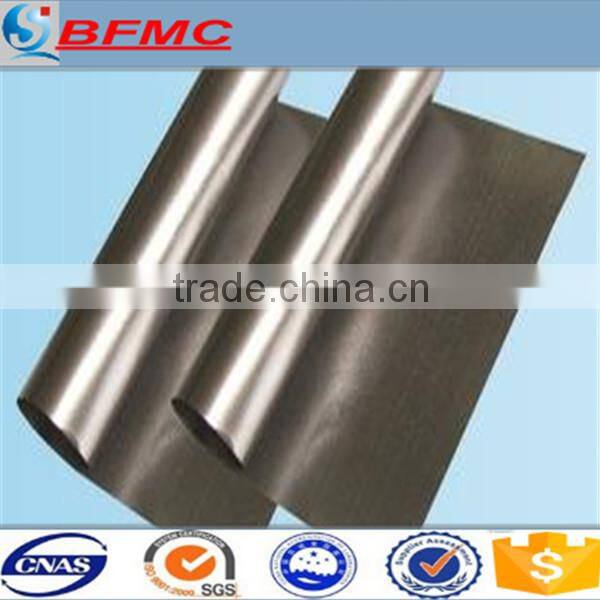

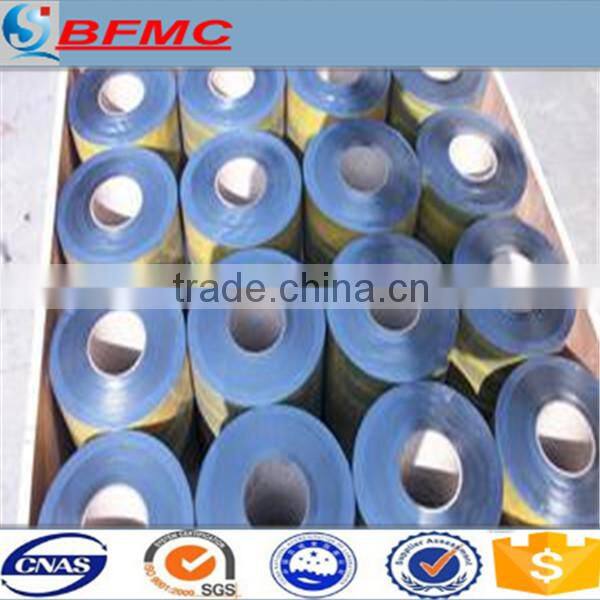

Expandable/Flexible Graphite Paper Supplier From China
| INTRODUCTION: |
Expandable/Flexible Graphite Paper Supplier From China
Graphite sheet is made from flake graphite with high carbon content which is gone through chemical treatment ,expanding Flexible graphite sheet (roll)
Advantages of graphite paper:
. High thermal conductivity
. Low thermal resistance
. RoHS & UL compliance
Application of graphite paper:
. Intelligent mobile phone
. Laptop/notebook
. Telecom device
. Handheld device
. Digital camera
. Tablet PC
. Others
| TECHNICAL SHEET:(COMMON MODELS) |
| Test Content | TCGS-S Value | TCGS-S Value | TCGS-S+PET Value | Unit | Test Method |
| Model Number | ZZX-250 | ZZX-350 | ZZX-450 | ----- | ---- |
| Color | Black | Black | Black | ------ | Visual |
| Material | Graphite | Graphite | Graphite | ------ | Visual |
| Thickness | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | mm | ASTM D374 |
| Specific Gravity | 1.5 | 0.9-2.0 | 1.5-1.8 | g/cc | ASTM D792 |
| Continuou Use Temp | -40~+500 | -40~+500 | -40~+500 | °C | EN344 |
| Tensile Strength | 715PS | 715PS | 715PS | 4900Kpa | ASTM F-152 |
| Volume Resistivity | 3.0*1013 | 3.0*1013 | 3.0*1013 | Ω/cm | ASTM D257 |
| Hardness | 80 | 80 | >80 | Shore C | ASTM D2240 |
| Flame Rating | V-0 | V-0 | V-0 | ---- | UL-94 |
| Thermal Conductivity (vertical direction) | 5 | 4 | 3 | W/m-k | ASTM D5470 |
| Thermal Conductivity (horizontal direction) | 300-500 | 300-500 | 300-500 | W/m-k | ASTM D5470 |
1. Quality assurance,we use high grade raw material and do strict inspect during the whole procession. All products adopt GB,ISO,ASTM,BS,JIS and DIN standard as per requirement. ISO, BV, TUV, SGS certified.
2. Provide professional designing solution, field technical assitance and any other consulting.
3. Price advantage, provided by manufacturer directly,save much intermediate fees.
4. Professional team, specialized in refractory production since 2000,with advanced technology and vast experience.
5. High production capacity, fast delivery of goods.
6. 24*7 online service.
7. OEM service available.
