Fine Grain Graphite Vane for Pump
- Any China main sea port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | JS | |
| Model Number | JX | Application | Sintering molds,EDM, Precious metal smelting | |
| Dimensions | As per requirement | Chemical Composition | C |
Product Description

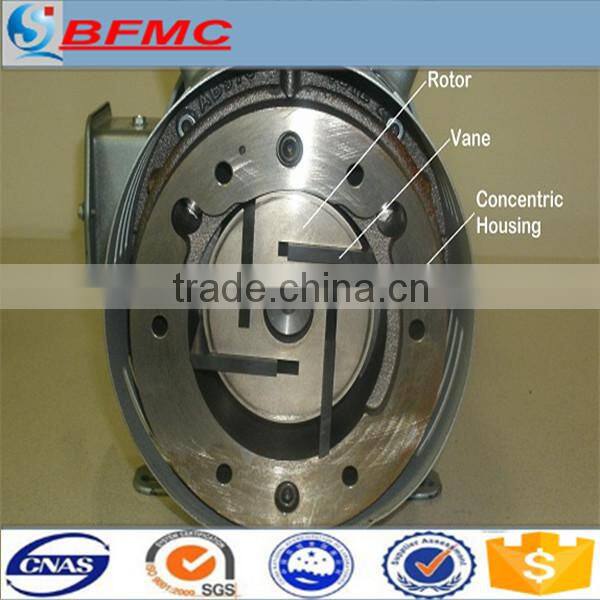

fine grain graphite vane for pump
| INTRODUCTION: |
fine grain graphite vane for pump

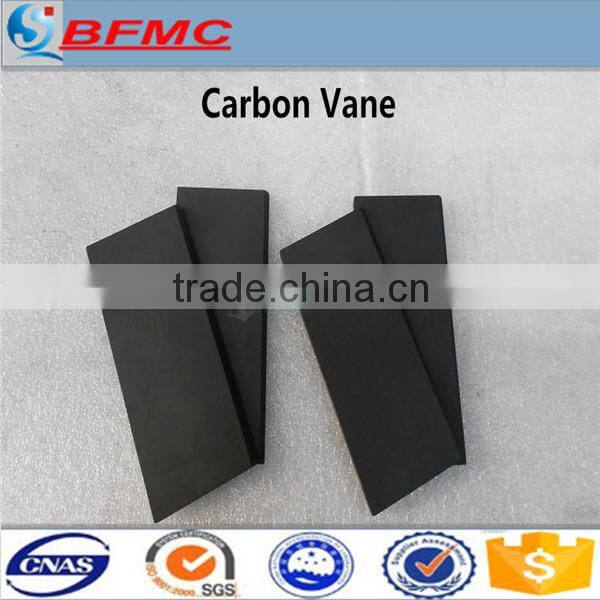

carbon vanes,carbon blade.graphite plate is a new type of material.Graphite block is usde in precision tool,aerospace industry ,war industy ,chemical industry.ect .There are Extruded Graphite,Molded Graphite,Isostatic Graphite,Vibration Graphite,High density and high Flexural Strength graphite material . (Die molded graphite),High pure extruded graphite,Special carburizing treatment graphite material.
Advantages of carbon vanes,carbon blade.graphite plate
:
1,high strength,high hardness
2,good heat-resistance, low porosity
3,anti-abrasion,anti-scour
4,high purity graphite
Graphite plates have good resistance to thermal shock, oxidation and corrosion, and have suitable resistivity and homogenous structure. And it offers excellent sealing capabilities under extreme conditions with a longer life and less maintenance
Application of carbon vanes,carbon blade.graphite plate:
1, photovoltaic industry
2,Precision casting industry ,coper continuous parts
3, EDM graphite
4, crucible for melting rare metals
5,machine analysis container
6, alloy industry, sintering molds,pumps
| TECHNICAL SHEET:(COMMON MODELS) |
Technical Specification | BJ-3 | BJ-4 | BJ-5 | BJ-6 |
Bulk Density(g/cm3) | ≥1.72 | ≥1.78 | ≥1.85 | ≥1.9 |
Ash Content(PPM) | ≤ 1000 | ≤1000 | ≤1000 | ≤1000 |
Shore Hardness | ≥40 | ≥40 | ≥45 | ≥50 |
Specific Resistance (μ.Ω.m) | ≤12 | ≤12 | ≤10 | ≤8 |
Flexural Strength (MPa) | ≥30 | ≥35 | ≥40 | ≥45 |
Compressive Strength (MPa) | ≥50 | ≥60 | ≥70 | ≥85 |
Max. Grain Size(μm) | ≤43 | ≤43 | ≤43 | ≤43 |
Coefficient of Thermal Expansion Mm/°C | ≤4.5*10-6 | ≤4.5*10-6 | ≤4.4*10-6 | ≤4.4*10-6 |
| PRODUCING TECHNOLOGY: |
1. Quality assurance,we use high grade raw material and do strict inspect during the whole procession. All products adopt GB,ISO,ASTM,BS,JIS and DIN standard as per requirement. ISO, BV, TUV, SGS certified.
2. Provide professional designing solution, field technical assitance and any other consulting.
3. Price advantage, provided by manufacturer directly,save much intermediate fees.
4. Professional team, specialized in refractory production since 2000,with advanced technology and vast experience.
5. High production capacity, fast delivery of goods.
6. 24*7 online service.
7. OEM service available.
