Product Details
Place of Origin | Zhejiang, China | Brand Name | Chincan | |
Model Number | NR20XE |
Product Description

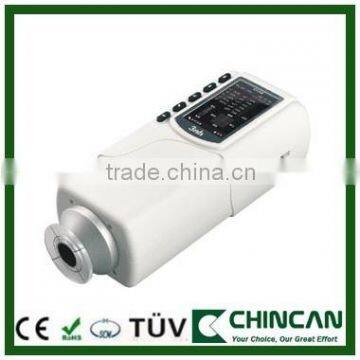

NR20XE
Portable Large Aperture Precision Digital Colorimeter
Product Introduction
NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore, NR20XE is widely used in color field.
QC Department
NR20XE can meet quality control requirements in plastic (PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate, coating, textile, fluorescent material, denim, medicine and food industries, etc. It can help to control product color difference, improve product competitiveness, reduce enterprises’ loss and control production cost.
Applications
Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.
Illumination Locating; Cross Locating; Large Stable End Face
Specification
Name | NR20XE Precision Colorimeter |
Illuminating/Viewing Geometry | 45°/0° |
Measuring Aperture | Φ20mm |
Special Function | Especially suitable for testing surface stripe and wet products |
Locating | Illumination Locating/Cross Locating |
Detector | Silicon photoelectric diode |
Locating | Illuminating Locating/Cross Locating |
Color Space | CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ |
Color Difference Formula | E*ab; L*a*b*; E*C*h* |
Light Source | D65 |
Light Source Device | LED blue light excitation |
Errors Between Each | ≤0.50ΔE*ab |
Equipment | |
Storage | 100pcs standards 20000pcs samples |
Repeatability | Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
Weight | 500g |
Dimension | 205×67×80 mm |
Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
Lamp Life | 5 years, more than 1.6 million measurements |
Charging Time | First charging time is 8 hours--100% electricity |
PC Software | CQCS3 Software |
Printer (optional) | Miniature thermal printer |
ProductAdvantages
1. 20mm measuring aperture can test objects with surface stripe accurately.
2. Vertical structure can test wet surface object or can be soaked into the liquid for testing.
3. Double Locating: Illuminating locating and cross locating.
4. Adopting new optical path and dynamic integration time can test more stable and accurate.
5. 45°/0° optical geometry structure, considering the effects of surface features.
6. Annular illumination design, suitable for polarizing material.
7. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
8. Configuring CQCS3 software -- connect PC computer to realize more functions.
Normally all CHINCAN products are supplied with a warranty of 12 Months from the date of shipment. This warranty is entirely dependent on the following conditions:
1.The following circumstance don't belong to the warranty policy which is Man-made damages caused by improper operations.
2.The instruments must be operated in accordance with our operating guidelines; serviced and maintained on a reg-ular basis in accordance with the terms specified in the relevant user manual.
3. Only approved spare parts should be used in the instruments which bought from CHINCAN and these should be changed on a regular basis as specified in the relevant user manual. Details of the approved spare parts and accessories for eaCh instrument are shown in the user manual or alternatively this information can be obtained from CHINCAN.
Q: What after-sales service can be provided by CHINCAN ?
A: The after-sales service of CHINCAN is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Q: How to solve the disputes between CHINCAN and customers during the after-sales maintenance?
A: We will be customer oriented,and make concessions in some principles , we will properly handle the disputes to maximize customer's satisfaction.
Established in 2004, Hangzhou Chincan Trading Co., Ltd. is a foreign trading company authorized by Chinese State Department of Foreign Economy & Trade and General Administration of Chinese Customs, which located in Hangzhou city, Zhejiang province, China.
We are a specialist company committed to exporting laboratory instruments, educational apparatus, medical & hospital equipments. With its superior performance, Chincan instruments are sold well throughout the Americas, Asia Pacific, the Middle East, Africa and Europe. With our excellent service, Chincan Trading has won a good reputation from the market.
Cooperative factories which qualified by Chincan come from many provinces and cities across China. All of them need to be ISO certified, Some products have CE.
Our customers spread all over the world, most products are very popular in Asia Pacific, Africa, Europe and South America,such as microscopes, autoclaves, shakers, incubators, baths, pH meters, spectrophotometers, pure water systems, balances, pipettes, centrifuges, viscometers, hardness testers, biological safety cabinets, etc.
We are doing our best to meet various needs of clients from different countries.
Our company website:
OEM
We have the experience, capability and R&D resources to offer ovens and incubators OEM service.
Once customer provides us with concept information and detailed specifications, we will notify them of the total cost for design, prototyping, and estimated cost per unit before the project begins.
OEM Service
1. Free logo design, MOQ request accordingly.
2. Outside color, temperature range, shelf adding, etc. Customization is available.
3. Optionals accessories: inert gases inlet valve, vacuum pump, etc.
