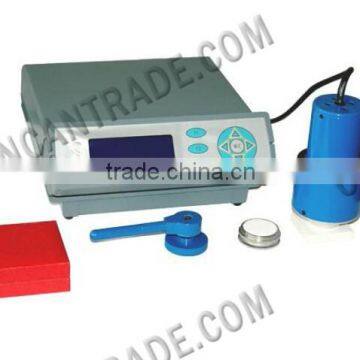

Colorimeter ADCI-60-C

Characteristics

l       LCD screen display;

l        MSF in instrument, more than 500 measurement data can be saved;

l       With RS-232 and Printer.

l       Whiteness expressed by color space.

l       Measure simply and rapid. The time of measurement only 1s.Only 1-2min for MEAS the color

          difference of 5 sample.

l      Support many points or the average of many measurements.

Specifications

l Lighting:tungsten lamp special for instrument

l Lighting condition:D65 standard light source ,0/d(uprightness irradiation, diffuse reflection

       incept)

l Standard observer:10°field

l Resolving rate:x,y±0.0001,Other±0.01

l Accuracy:ΔY≤1.5,ΔxΔy≤0.015

l Stability:Long-term≤0.15(1 hour);Short-term≤0.03

l repeatability: ΔXΔYΔZ≤0.2,ΔE≤0.15

l interface:RS—232

l power supply:AC220V Wattage:30W

l Size:L×W×H: 29.3cmX 28cmX 11.3cm

l Weight:net weight 5.5kg gross weight8.4kg

Range of measurement:
The solid sample having a certain plane(>ø15mm) such as board, paper,
piece goods, ceramic, plastic, etc.
The powder sample such as calcium carbonate, talcum, kaolin, silicon,
diatomite,moist, cement, titanium, fluorescence, flour, salt, launder, calcium, etc;
The liquid sample such as dope, painting, etc.

The main trade that used for:
Rubber, Plastic, plastic steel, aluminum mode, raw material and product, dope,
nonmetal mine, paint for auto, construction, furniture ,etc, printing, weave, dyeing,
clothing; foodstuff, farming, fruit and vegetable ; lab; electrical wire, construction
material;medicament.

Display of measurement:
l Color value:(X10Y10Z10,Y10x10y10,L*a*b*,Lab)

l Color Difference:(ΔE, ΔL, Δa, Δb)

l Whiteness measurement W:(WR457, Hunter Whiter,Canci(CIE-86),etc);

l Coefficient of yellowness Yi;

l Color C or hue H;

l Firm of color adhibit of drygoods SSR and Firm of color adhibit of changing GS.

l Contrast ratio
