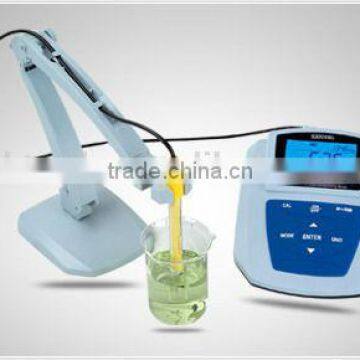

MP515 Precision Conductivity Meter

Conductivity

Measuring range

Conductivity:(0.00~20.00)μS/cm
(20.0~200.0)μS/cm

(200~2000)μS/cm  (2.00~20.00)
mS/cm

(20.0~200.0)mS/cm (200~2000)
mS/cm(K=10)

Resistivity:(0 ~ 100)MΩ·cm

TDS:  (0 ~ 100)g/L

Salinity: (0 ~ 100)ppt

Resolution

0.01/0.1/1μS/cm  0.01/0.1/1 mS/cm

Accuracy

Meter:±0.5% FS,connect meter with
electrode:±0.80% FS

Temp. compensation range

(0 ~ 50)℃(automatic )

Electrode constant

0.1 / 0.5 / 1 / 5 / 10 / 50 / 100  cm-1

Reference temperature

25℃,20℃ and 18℃

Temperature

Measuring range

-10℃~ 110℃

Resolution

0.1℃

Accuracy

5~ 60℃range:±0.4℃  other range:±0.8
℃

Other Technical Parameters:

Data storage

300 groups

Storage content

Measuring value series number,
 measuring value, temperature, ATC or
 MTC state, measuring date and time

DC9V/300mA

Power

RS232

Communication connector

160 × 190 × 70mm/880g

Size and weight

ISO9001:2008, CE and CMC

Quality and safety certification

Working Condition

Environment temperature

5 ~ 35 ℃(0.01grade) 15 ~ 30 ℃
(0.001grade)

Environmental humidity

≤75%

IP rating

IP54 Dustproof and waterproof

1. Model MP515 lab conductivity
meter

1 unit

2. Model 602 flexible electrode
 holder

1pc

3. 2401T-M plastic pH/ATC three-
in-one combination electrode

1 pc

4.1408μS/cm conductivity
 standard solution (50mL)

2 bottles

5. 9V power adapter

1pc

6. RS-232 communication cable

1pc

7. MP515 communication
 software CD

1pc

8. Operation manual

1 unit

9. Brief operation manual

1 unit

10. Packing List

1 pc

Accessory Categry

Description

Specifications

Conductivity Electrode

DJS-0.1-M Pure water
conductivity electrode

K=0.1 cm-1,Automatic temperature
compensation, for testing the conductivity
 of high pure water, 4-pin plug

2401-M Glass conductivity
electrode

K=1.0 cm-1,Automatic temperature
 compensation, precision laboratory test for
 conductivity, 4-pin plug.

2301-M Plastic conductivity
electrode

K=1.0 cm-1,Automatic temperature
 compensation for laboratory and field
 testing, 4-pin plug.

2310-M Plastic conductivity
electrode

K=10 cm-1,Automatic temperature
compensation, used to test seawater and
 concentrated salt water, etc., 4-pin plug

Glass flow cell

Equipped with DJS-0.1-M electrode

Temperature Electrode

MP500 Temperature electrode

Stainless steel housing, fast response,
 high accuracy, RCA plugs

Conductivity Calibration Solution

84 μS/cm Conductivity
Calibration Solution

500mL/250mL/50mL(bottle)

1413
μS/cmConductivityCalibration
Solution

500mL/250mL/50mL(bottle)

12.88
mS/cmConductivityCalibration
Solution

500mL/250mL/50mL(bottle)

146.6
 μS/cmConductivityCalibration
Solution

500mL/250mL/50mL(bottle)

1408
μS/cmConductivityCalibration
Solution

500mL/250mL/50mL(bottle)

12.85
mS/cmConductivityCalibration
Solution

500mL/250mL/50mL(bottle)

Electrode soaking

pH(ORP)Combination
 Electrode Soaking Solution

500mL/250mL/100mL(bottle)

10-5 mol/L Sodium ion electrode
 soaking Solution

Equipped with 7801Sodium electrode .
 500mL/250mL/100mL(bottle)

Electrode holder

Model 602 Flexible Electrode
Holder

Nice appearance of the arc-type bracket,
 you can turn 360 degrees and vertical lift

Model 601Stirring Type
 Electrode Holder

The electrode holder and magnetic stirrer
combination of new products.

Model 600 Electrode Holder

Cheap simple electrode holder
