Noodle Thermoforming Packaging Machine
- NINGBO PORT
- T/T Credit Card
You May Like
-
Beaf Steak Automatic Thermoforming Vacuum Packaging Machine
-
Modified Atmosphere Thermoforming Vacuum Packaging Machine
-
APT BRAND Vacuum Bagging Machine
-
Vacuum Thermoforming Sealing Machine
-
Serum Bag Vacuum Packaging in Thermoforming in Flexible Film
-
Plate Packaging for Reactive Products in Thermoforming in Rigid Film
Product Details
| Condition | New | Application | Chemical, Commodity, Food, Medical | |
| Packaging Type | Bags, Film, Other, Bags, Film, Rigid or flexible tray | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V/50HZ | Power | 15kw | |
| Place of Origin | Zhejiang, China | Brand Name | APT | |
| Model Number | BD-520A | Dimension(L*W*H) | 6200 x 1400 x 1900mm | |
| Weight | 2100kg | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Usage:

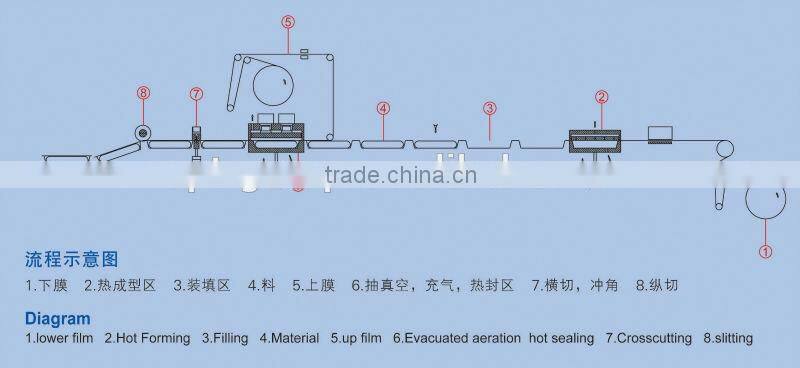

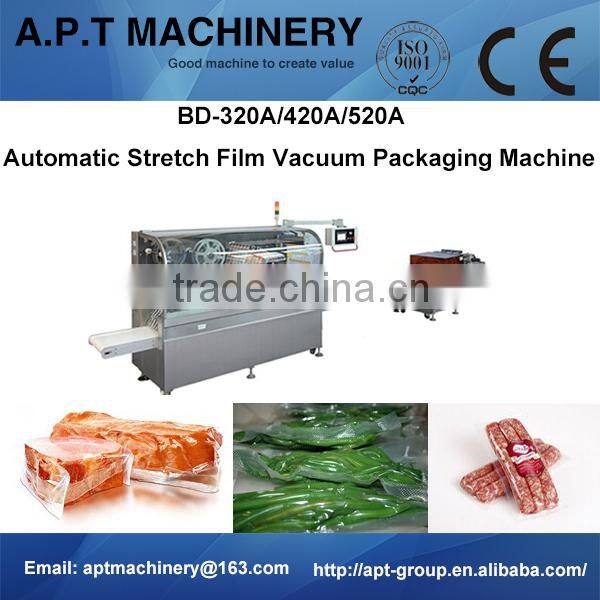

BD-320A/420A/520A automatic stretch vacuum packaging is a thermoforming machine designed to pack food, such as meat, fish, vegetable, fruit, dry food, etc. The package is created directly by the machine using two rolls of film. The film is flexible. Vacuum with gas flushing is available as an option.
Model | BD-320A | BD-420A | BD-520A |
Upper Film Width | 292mm | 392mm | 492mm |
Lower Film Width | 322mm | 422mm | 522mm |
Upper Film Thickness | 0.05-0.7mm | 0.05-0.7mm | 0.05-0.7mm |
Lower PE Film Thickness | 0.05-0.5mm | 0.05-0.5mm | 0.05-0.5mm |
Running Speed | 1-8cycles/min | 1-8cycles/min | 1-8cycles/min |
Max. Packing Size |
| 400x400x60mm | 495x500x60mm |
The Power of Heater |
| 13KW | 13KW |
Power Consumption |
| 15KW | 15KW |
Power Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Approx. Machine Weight | 1300kg | 1700kg | 2100kg |
Approx. Machine Dimension | 5100x900x1800mm | 6150×1200×1900mm | 6200X1400x1900mm |
No. | Item | Brand |
1 | PLC | Mitsubishi, Japan |
2 | Expansion Module | |
3 | Touch Screen | Weinview, Taiwan |
4 | Chain Drive Servomotor | Mitsubishi, Japan (1KW) |
5 | Vacuum Pump | Bush, Germany |
6 | Temperature Controller | Shanghai Yatai, China |
7 | Breaker | Schneider, France |
8 | Solenoid Valve | Airtac, Taiwan |
9 | Air Cylinder | Airtac, Taiwan |
10 | Solid State Relay | Langning, China |
11 | Mold Material | Aluminum |
12 | Machine Frame | 304 Stainless Steel |
1. All processing steps be done automatically , which saves labor and high efficiency .
2. This machine operation is convenient and stable performance .
3. One machine can make different products, just change the mould, It has multifunction .
4. Machine can be customized according to customer requirement .
Home Website: http://apt-group.en.china.cn/
Product Video Link:/watch?v=Cu9a7cBxLSg
Packing Machine
Loading Machine
Shipping Machine
Sales Market Distribution
- Installation Services are available with all customers.
- we can send our Enginner to your company to install the machines If customer needs.
- We can train your staffs how to run the machine efficiently and safely.
3. After Sales Service
- Guaranty: One Year and offer the lifetime maintenance service.
- During warranty period and after warranty period, We will come for regular checks on machine and make records to ensure the normal operation of equipment.
- Our experienced engineer are always available for dispatching abroad to help customers.
- Any question, welcome to contact us at any time.
Thanks a lot for viewing our product ! ^_^ If you are interested in our product and have any question, welcome to contact me any time !
Looking forward to your inquiry !Wish you a nice day!
