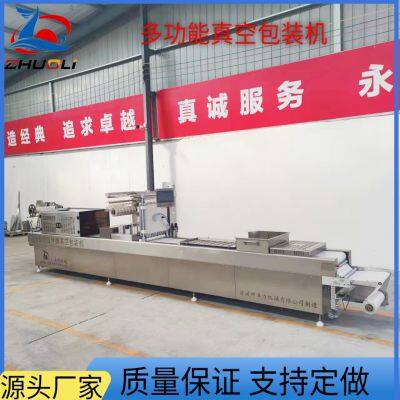

Vacuum packaging machine for steak Automatic beef vacuum packaging machine

Equipment performance: 1. Photoelectric tracking adopts the American imported brand Bannar, which can be packaged with color-covered film light film, with high precision, low cost, and improved product grade. 2. The use of combined molds makes it convenient to change molds and multi-purpose, mold is equipped with a cooling system, and the overall mold is an aluminum plate snap-leak type, which has a good effect on the shaping of products and vacuum hot sealing 3. According to the user's product packaging requirements, it can be equipped with an automatic coding system. 4. According to the user's product packaging requirements, the basis of vacuumizing, it can be filled with nitrogen or mixed gas for packaging. 5. It is equipped with the original German imported vacuum pump (Pu So or Qi Le), with high vacuum degree, stable quality, durable and reliable. 6. It uses Taiwan chains, suitable for stretching and forming of soft film, hard film semi-hard film with various thicknesses, and can be used for special packaging. 7. It has a scrap recycling system to keep the environment clean. 8. Advanced-cut, longitudinal cut, computer knife adjustment is adopted.

Technical parameters: Model: DZR-420 Top film width: 393mm Bottom film width: 42mm Vacuum: ≤200MPa Compressed air: ≥0.6MPa Cooling water: ≥0.1MPa Power supply: 380V/50HZ Total power: 15kw Dimensions: 5600*95*1760mm Weight of the machine: 1800kg Vacuum pump exhaust speed: 200-300m3/ Working frequency: 4-7 times/min

Working principle The working principle of the fully automatic continuous stretching film vacuum packaging machine is to use the forming mold to heat the film first, and then the forming mold to punch it into the shape of the container, and then put the packaged goods into the lower film cavity that has been formed, and then vacuum package it. film used for deep drawing packaging is deep drawing film, which is divided into soft film and hard film. This film has excellent forming performance, high transparency, can block oxygen, heat, sealing, flatness, anti-fog performance, easy to open and other characteristics. This film is matched with the thermoforming packaging machine, not only can it package, liquids, soft objects, fragile products, etc., but also can vacuum soft film packaging, hard film inflation packaging, blister packaging, etc. It is sanitary,-yield, labor-saving, and low cost when used.
