HX-2400F Glue Laminated Embossing Paper Machine for Make Toilet Paper
- Xiamen China
You May Like
-
HX-1575B Glue Lamination Double Embossing Toilet Paper and Kitchen Towel Cutting & Embosisng Machine
-
HX-1350F Toilet Rolls & Small Paper Cutting Machine
-
Automatic Glue Lamination Kitchen Towel Embossed Rewinding Toilet Paper Roll Making Machine
-
HX-1575B Glue Lamination Small Toilet Paper Printing Cutting Machine for Sale
-
HX-1575B Glue Lamination Small Toilet Paper Making Machine Price
-
HX-1575B Glue Lamination Toilet Paper Roll Cutting Machine
Product Details
| Condition | New | Product Type | Toilet Tissue | |
| Processing Type | Paper Slitting and Rewinding Machine | Place of Origin | Fujian, China | |
| Brand Name | Huaxun | Model Number | HX-2400F | |
| Voltage | 380V,50HZ,3 Phase | Power(W) | 11.4kw | |
| Dimension(L*W*H) | 6.2*3.3*1.6m | Weight | 5T | |
| Certification | CE | Warranty | 1 year warranty | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HX-2400F (HX-1092/1575/2300/2400/2800F) Glue-Lamination Small Rolled Paper Cutting Machine
This machine embosses and glue-laminates two plies of paper together to make better water absorption effect.
It is equipped with embossing unit, glue-lamination unit, perforating unit and automatically cut unit. The product is formed by
one step. Synchronous belt drive unwinds jumbo roll paper. Stepless speed
adjustment adjust tension of paper. Air swelling shaft rewinds finished roll(clients can pay more to select to use pneumatic style to rewind roll). The tension
of finished roll paper can be adjusted.
Advantage :
1.equipped with high- speed motor and driver,which let equipment work more stable and in high accuracy.
2.it is automatic ,which can easy to operate and safe the cost of labor,which is the best choice for cutting small rolled paper .
Main Technical Parameter:
| Production speed | 130-180m/minute |
| Maximum Diameter of Finished Roll | 300mm (adjustable) |
| Perforation line Distance | 100~150mm (adjustable) |
| Maximum diameter of jumbo roll paper | 1200mm |
| Width of jumbo rolls | 2400mm |
| Machine power | 11.4KW(2400mm), 380V, 50HZ, 3 phase |
| Equipment overall size(L*W*H) | 6.2*3.3*1.6m |
| Equipment weight | about 5Tons (2400mm) |

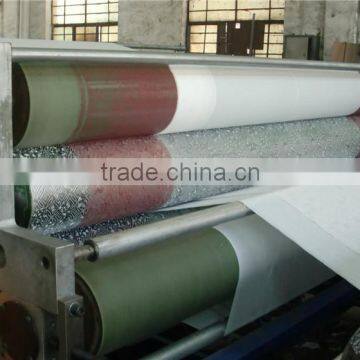

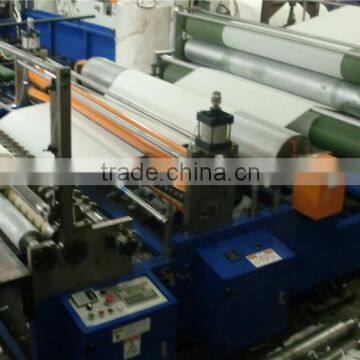

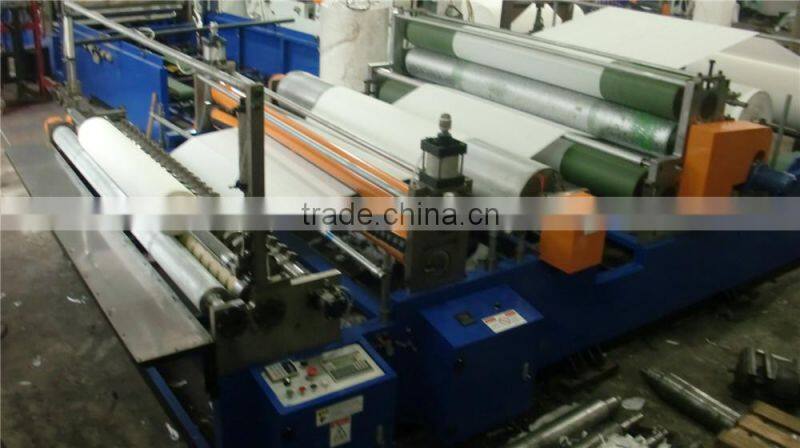

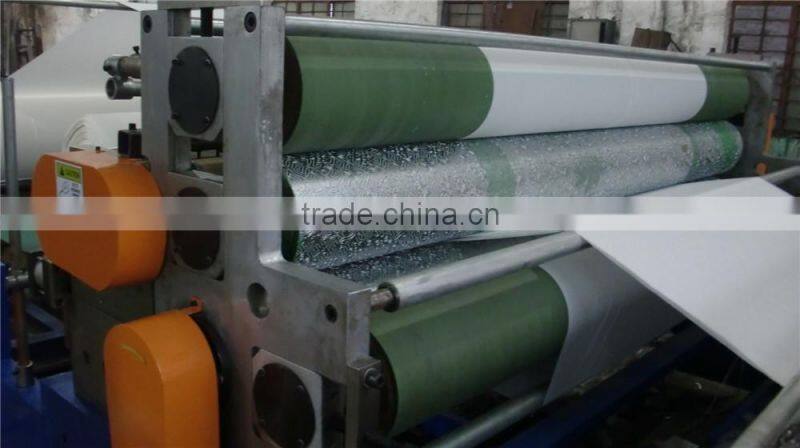

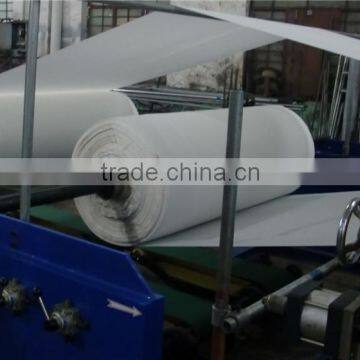

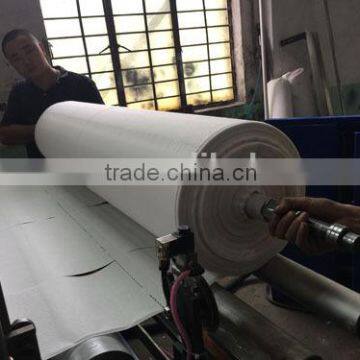

Equipment Picture:
FAQs:
1.Q:who are we ?
A: Quanzhou Huaxun Machinery Making Co., Ltd is a leading paper convert machine manufacturer .our product sale spreads all over the world,in many counties,we have our own agent.Our products widely cover toilet paper machine,towel paper (kitchen towel )machine,hand towel machine,facial tissue machine,napkin paper machine,craft paper machine,and other relative machine,etc.
2.Q:what is our payment terms?
A:our general payment terms is TT.Before production,our customers should pay 30% down payment to us,then pay 70% after the machines are all ready to ship to buyer.(For other payment terms,also can be communicated by buyer and seller two parts.)
3.Q:what is our warranty?
A:our warranty is one year,the parts can be replaced freely within one year,after one year,we also will provide slove project asap for any problems you have,will try our best to help you out of trouble.
4.Q:what is our service?
A:If you just enter this line and new for paper convert business. We will provide properly program from jumbo roll paper to finished products, to help you get familiar with this line and start business well.
2.We can help you to get the documents you need for customs clearance to help you make it easy.
3.Before the machine delivery,we will test the machines in our factory and make sure they are running well.If customers want to come to our factory to test the machine,it is ok,and we will send car to pick them up at the airport.
4.We will provide the manual and operating CD along the machines to customers,if necessary,we also can send technician to your factory to help you install and training your workers to operate our machine.
Your satisfaction is our goal,we will try our best to give you the best service,so for any suggestion,will be very appreciated.Have any questions,feel free to contact us,will reply you asap.
