HX-1575B Single Embossing Rewinding,perforating Toilet Paper Production Line
- Xiamen China
- Credit Card
You May Like
-
Automatic Log Saw Cutter Package Equipment Embossed Rewinding Toilet Paper Machine Production Line
-
HX-2400B Single Embossing With Point to Point Glue Lamination Toilet Paper Machine
-
Toilet Tissue Making Machine
-
Embossing Rewinding & Perforating Toilet Paper Machine
-
HX-1575B Full Automatic Toilet Paper Rewinding Machine With Single Embossing
-
HX-1575F Small Roll Paper Slitting Machine
Product Details
| Condition | New | Product Type | Toilet Tissue | |
| Processing Type | Embossing Machine | Place of Origin | Fujian, China | |
| Brand Name | HUAXUN | Model Number | HX-1575B | |
| Voltage | 380V,50HZ,3 Phase | Power(W) | 7.6KW | |
| Dimension(L*W*H) | 5300*2250*1550mm | Weight | about 5 tons | |
| Certification | CE | Warranty | 1 year warranty | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HX-1575B single embossing rewinding,perforating toilet paper production line
1.Equipment Function and Configuration
1. Adopts PLC programmable controller control the production process.
2.Operated and controlled by man-machine dialogue, with production parameters displayed on screen. Equipment stop automatically when paper break.
3.Jumbo Roll paper is pneumatically loaded on machine, unwinding roll tension control device.
4. The rewinding process of the product is tight first and loose afterward, with its tension adjustable.
5. Perforation segment length can be adjustable.
6.Paper core replacement, glue spraying and paper cutting undergo automatically according to given sequence.
7. Embossing pattern is to be selected by clients.Can make single or double embossing as request.
8. Bearing, electric component and synchronous belt adopt famous brand product.
9. Early warning for situation that material break thus machine stop, early warning for paper tube shortage, early warning for power supply low voltage, early warning for power supply inlet wire phase mistake.
10.equipment double-side spray paint.
11. Counting: segment quantity or roll-furling diameter function selection.
2.MAIN TECHNICAL PARAMETER:
Width of Jumbo roll(parent roll) | 1800mm |
Production speed | 130-180m/minute |
Diameter of finished roll | ≤130 mm |
Inner Diameter of paper core of Jumbo Roll | 76.2mm(other size can be required) |
Diameter of Jumbo roll | ≤1200mm |
The distance between Perforated lines on paper | 100-150mm(other size can be required) |
Width of cut toilet rolls | 90-120 mm |
Machine power | 7.6KW(380V ,50HZ, 3 phase) |
Embossing unit | double embossing unit, steel to rubber roller |
Equipment overall size(L × W × H) | 5.3 × 2.25 × 1.55m |
Equipment weight | about 5 Tons |
Picture:

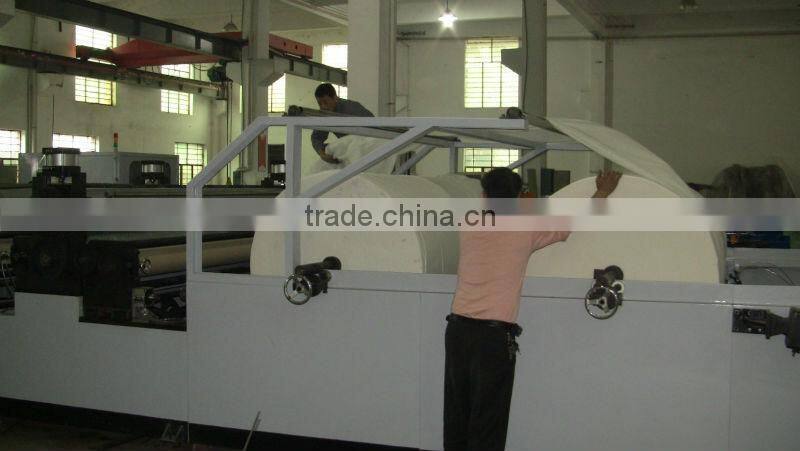

Jumbo roll:

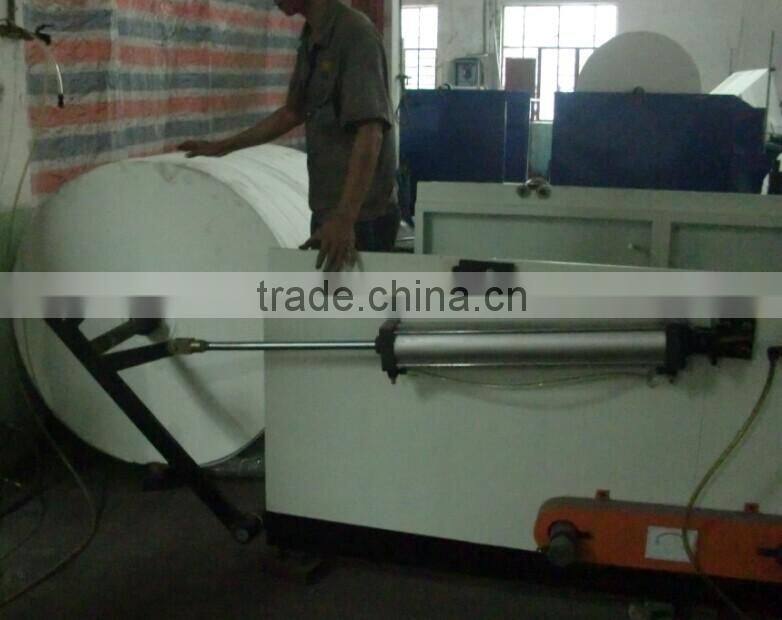

Pneumatic upload jumbo roll:

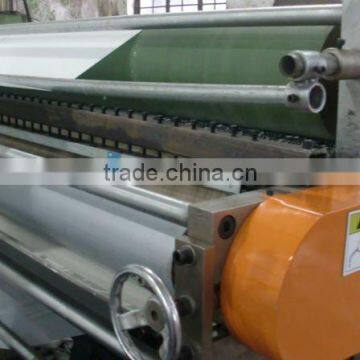

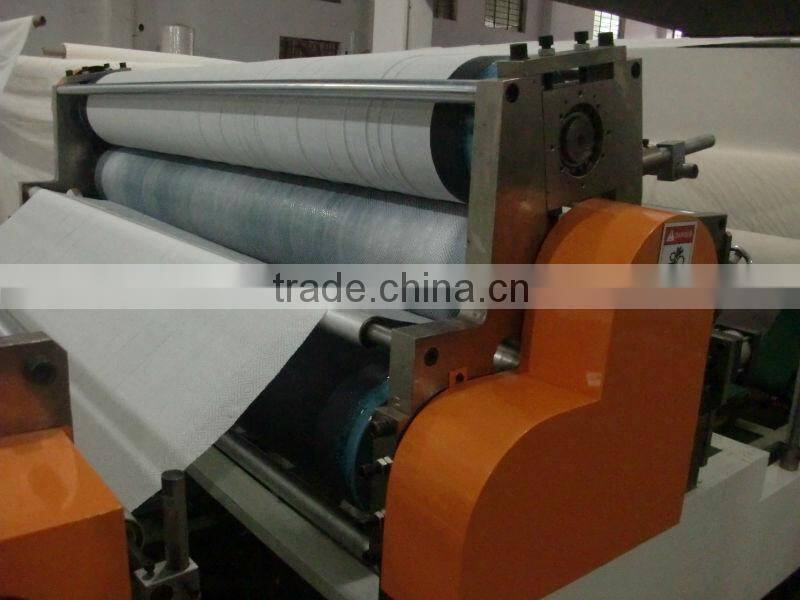

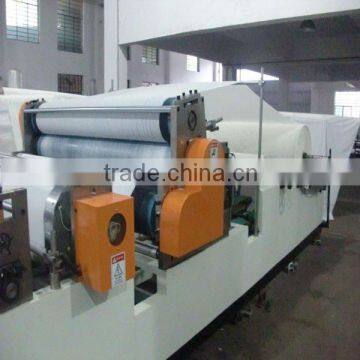

Embossing unit:
glue lamination unit:

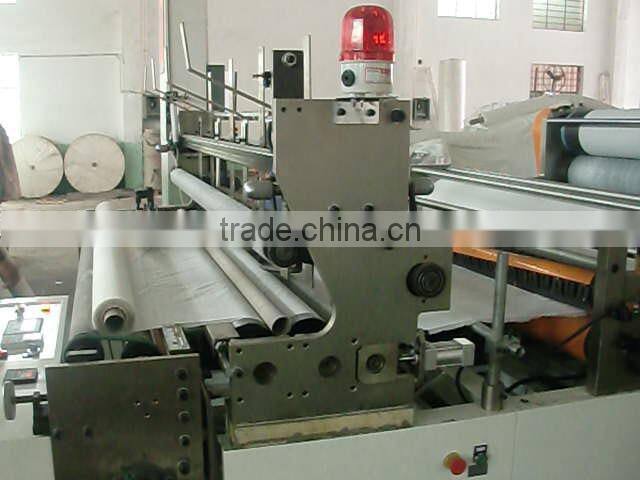

Paper core holder:
Finished product cutting :
FAQs:
1.Q:who are we ?
A: Quanzhou Huaxun Machinery Making Co., Ltd is a leading paper convert machine manufacturer .our product sale spreads all over the world,in many counties,we have our own agent.Our products widely cover toilet paper machine,towel paper (kitchen towel )machine,hand towel machine,facial tissue machine,napkin paper machine,craft paper machine,and other relative machine,etc.
2.Q:what is our payment terms?
A:our general payment terms is TT.Before production,our customers should pay 30% down payment to us,then pay 70% after the machines are all ready to ship to buyer.(For other payment terms,also can be communicated by buyer and seller two parts.)
3.Q:what is our warranty?
A:our warranty is one year,the parts can be replaced freely within one year,after one year,we also will provide slove project asap for any problems you have,will try our best to help you out of trouble.
4.Q:what is our service?
A:If you just enter this line and new for paper convert business. We will provide properly program from jumbo roll paper to finished products, to help you get familiar with this line and start business well.
2.We can help you to get the documents you need for customs clearance to help you make it easy.
3.Before the machine delivery,we will test the machines in our factory and make sure they are running well.If customers want to come to our factory to test the machine,it is ok,and we will send car to pick them up at the airport.
4.We will provide the manual and operating CD along the machines to customers,if necessary,we also can send technician to your factory to help you install and training your workers to operate our machine.
Your satisfaction is our goal,we will try our best to give you the best service,so for any suggestion,will be very appreciated.Have any questions,feel free to contact us,will reply you asap.
