Machine for Making Toilet Paper
- XIAMEN port China
- T/T Credit Card
You May Like
-
HX-1575D Jumbo Roll Paper Printing Machine
-
HX-2200F Small Rolled Paper Cutting Machine
-
HX-1575B Double Embossing Toilet Paper Making Machine
-
HX-2400F Glue Lamination Small Rolled Paper Cutting Machine
-
Model HX-2800 Full-automatic Toilet Paper Machine
-
HX-1575F Small Rolled Paper Rewinding Embossing and Perforating Toilet Paper Machine
Product Details
| Product Type | Toilet Tissue | |||
| Processing Type | Embossing Machine | Place of Origin | Fujian, China | |
| Brand Name | HUAXUN | Model Number | HX-1575B machine for making toilet paper | |
| Voltage | 380V,50HZ,3 Phase | Power(W) | 7.6KW | |
| Dimension(L*W*H) | 5.3*2.25*1.55 | Weight | 4 tons | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
choose our machine for making toilet paper will bring you great profit.full automatic,easy operation will save labor cost
Excellent Machine for making toilet tissue, Small Toilet Paper MakingMachine , toilet tissue making machine, toilet roll converting machine
A.This machine is to use Jumbo Roll Paper to produce Toilet Paper Roll or one ply
kitchen towel;
B.can add glue-lamination unit on this machine to make two plies of Kitchen Towel.
C. can select 1 set of embossing unit(for 1 kind of embossing pattern) or 2 sets of embossing unit(for 2 kinds of embossing pattern).
1.Equipment Function and Configuration
1. Adopts PLC programmable controller to control the production program.
2. Base paper(Jumbo Roll Paper) is pneumatically uploaded onto machine. It has a device to
control tension of paper when it is unwinded.
3. The rewinding process of the product is tight first and loose afterward, with its
tension adjustable.
4. Perforation length is adjustable.
5. Paper core replacement, spraying glue and cutting paper carry through automatically and sequentially.
6. Embossing Pattern will be decided by clients
7. Bearing, electric component and synchronous belt are of famous brand.
8. Early warning for situation that material breaks thus you can stop machine to add
paper core, early warning for shortage of paper tube, early warning for low voltage
of power supply,early warning for inlet wire phase mistake power supply.
9. Double faces of equipment is sprayed by paint.
10. Counting: perforation distance or diameter of furled roll.
Optional(will require additional cost from the buyer):according to client's requirement, we
can equip machine with double embossing units, 1-3 color printing device glue-lamination Unit for producing 2 plies of kitchen paper with glue between 2 plies to
enhance water absorbability.
2.MAIN TECHNICAL PARAMETER:
| Production speed | 100-200 m/Minute |
| Roll-furling diameter | ≤130 mm |
| Jumbo roll paper width | ≤ 1800mm (1575 model) |
| Jumbo roll paper diameter | ≤ 1200mm |
| Equipment power | 7.6 KW (380V ,50HZ, 3 phase) |
| Equipment weight | about 4 Tons |
| Equipment overall size(L*W * H) | 5.3 * 2.25 * 1.55 M |
3.Picture

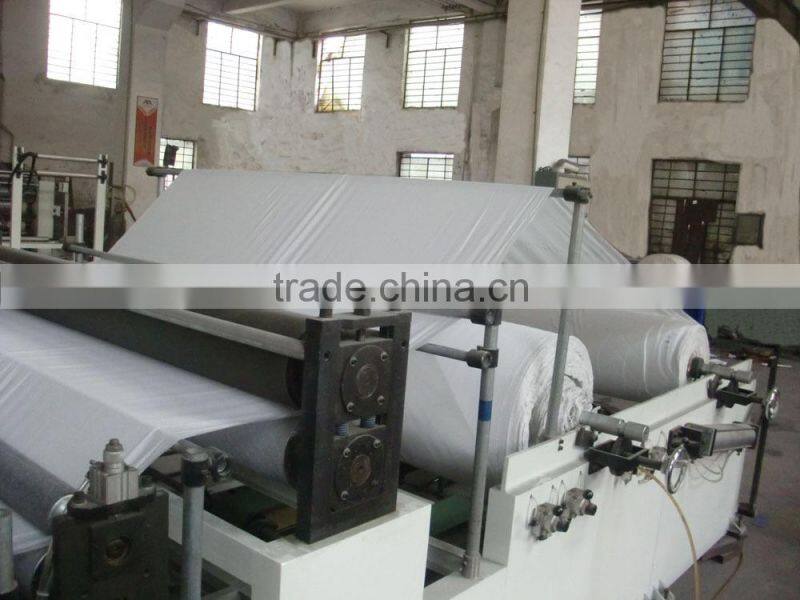

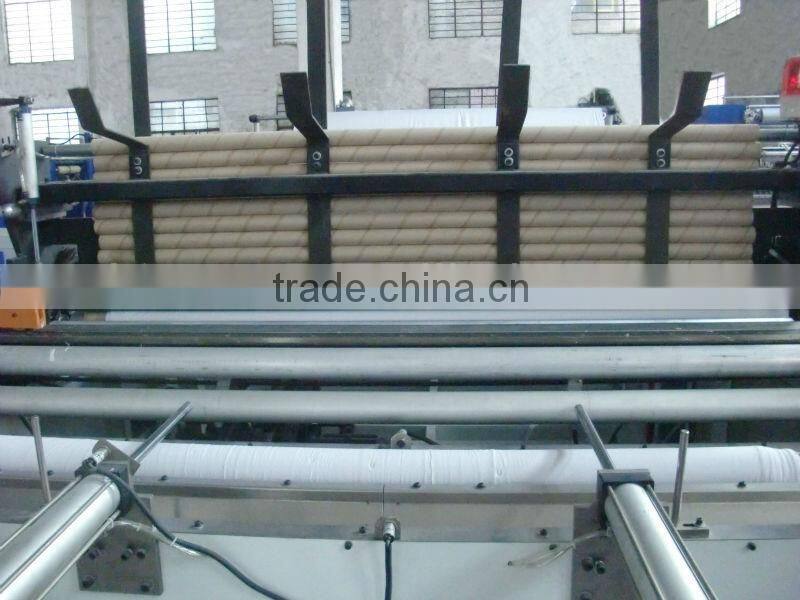

process as following picture:
1, unwinding jumbo roll paper

2, embossing paper
3, perforating on the paper
4, rewinding the paper on the paper core.
5, tail cutting and sealing, finished product come out
