Excellent Full-automatic Kitchen Towel Machine

Specifications

Full-automatic Kitchen Towel  Machine , Kitchen paper  Machine, kitchen paper towel making machine , paper making machine

1.Main features:

1. It has Man-machine conversation operation control, and PLC control production. Automatically stop working  when paper breaks.

2. Automatic trim margin, spray glue, realizing the technology of internationally-popular trimming margin and sealing tail.

3. Advanced programmable control technology. The winding profiles can be tight at the beginning of winding, and then getting loose, to avoid the problems that the cores are loose from the rolls after long time storage.

4. Stepless speed adjustment for unwinding roll, to ensure a stable unwinding roll.

5. Pneumatic jumbo roll loading, automatic detection of paper break and machine stop automatically.

6. It’s equipped with high precision screwy perforation knives. With 4 perforation blades to make clear perforating, low noise. It has pneumatic control, easy to guide the paper.

7. Embossing system adopts steel to rubber rollers style and steel to wool rollers style which can be selected by customers.

8. Glue lamination unit: When producing kitchen towels, the machine will apply glue on embossed convexity to make 2 layers of paper stick together to enhance water absorption.

9. Set frontal and back inching switch etc humanization device to make operation easier and safer.

2.Main Technical Parameter:

1. Production speed: 120-180 m/min
2. Final product diameter: ≤130 mm
3. Perforating distance: 200-220 mm (other sizes can be customized)
4. Jumbo roll width: ≤2300 mm
5. Jumbo roll diameter: ≤1200 mm (other size can be customized)
6. Paper core diameter of the jumbo roll: 3′(φ76 mm)(other size can be customized)
7. Air pressure requirement: 0.5~0.8 mpa (supply by customers)
8. Equipment power: 11.2kw (excluding color printing device and drying device)
9. Equipment overall size (L×W×H) :7.35×2.68×1.7 m
10. Equipment weight: about 5T

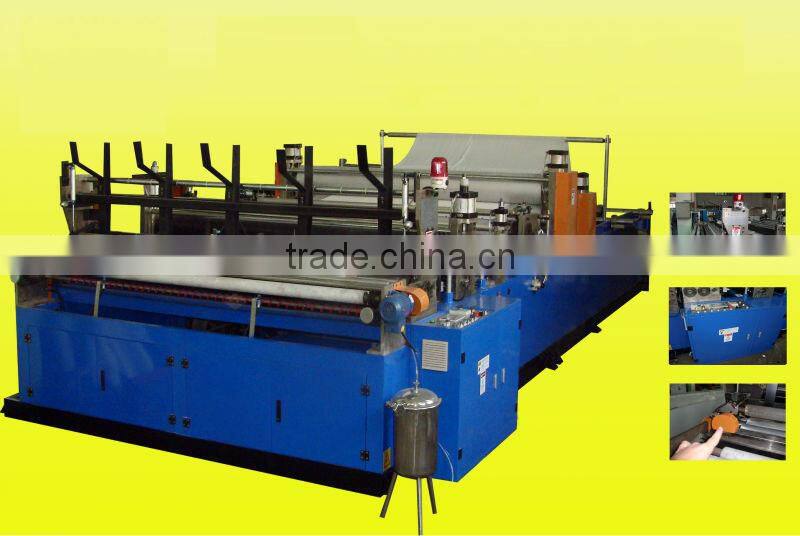

3.picture
