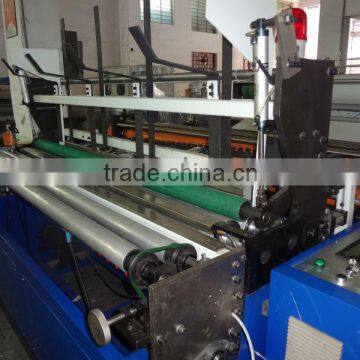

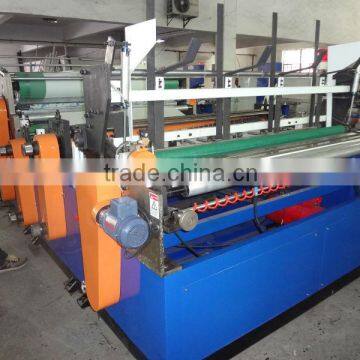

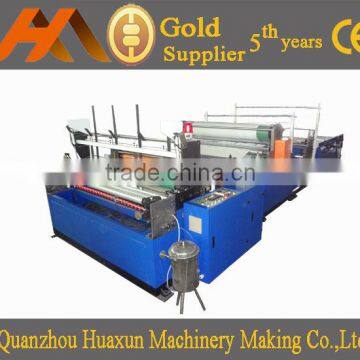

HX-1575B High Speed CE Certification Toilet Paper Making Machine Price

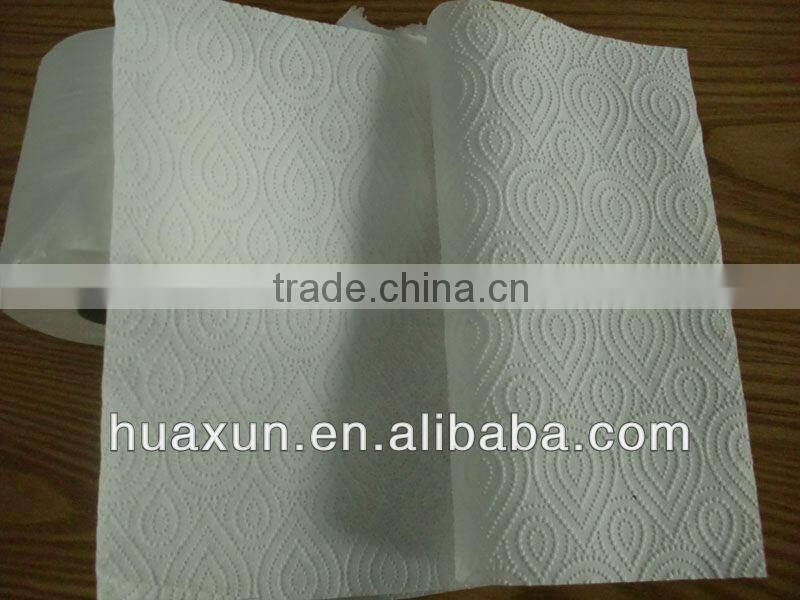

HX-1575 B embosser laminators kitchen towel machine, kitchen towel paper machine. Kitchen towel making machine

1. Introduction:

(1). This equipment has been integrated with the internationally advanced PLC technology, variable speed adjustment, and touch button more menu type LCD screen operation control panel.

(2).  It adopts newly designed glue applicator unit. It makes the gluing more equality.

(3).  Can add 1-3 colors water ink printing system for printing diversified fine pattern, brand, with characters of clear and bright printing, exact overprint, high speed and stable running.

2. Main features :

(1).  Automatic core loading and positioning. The logs are automatically pushed out after finishing winding, and then start winding again. It can adjust any size of cores.

(2).  Automatic trimming, gluing and sealing, it adopts international popular trimming and sealing, which can have 10-18 mm tails to facilitate to start pulling out the paper. At the same time, it can greatly cut down the wastage of the paper, thus to cut down the production cost.

(3).  Advanced programmable control technology. The winding profiles can be tight at the beginning of winding, and then getting loose, to avoid the problems that the cores are loose from the rolls after long time storage.

(4).  Stepless speed adjustment for unwinding roll, to ensure a stable unwinding roll.

(5).  Pneumatic jumbo roll loading, automatic detection of paper break, and machine stop automatically.

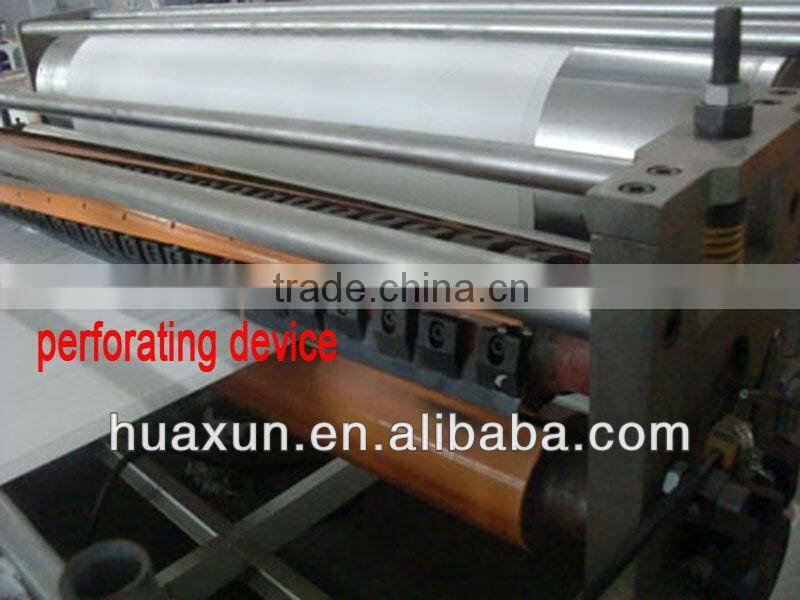

(6).  With high precision screwy perforation knife. With 4 perforation blades to make clear perforating, low noise. Pneumatic control, easy to guide the paper.

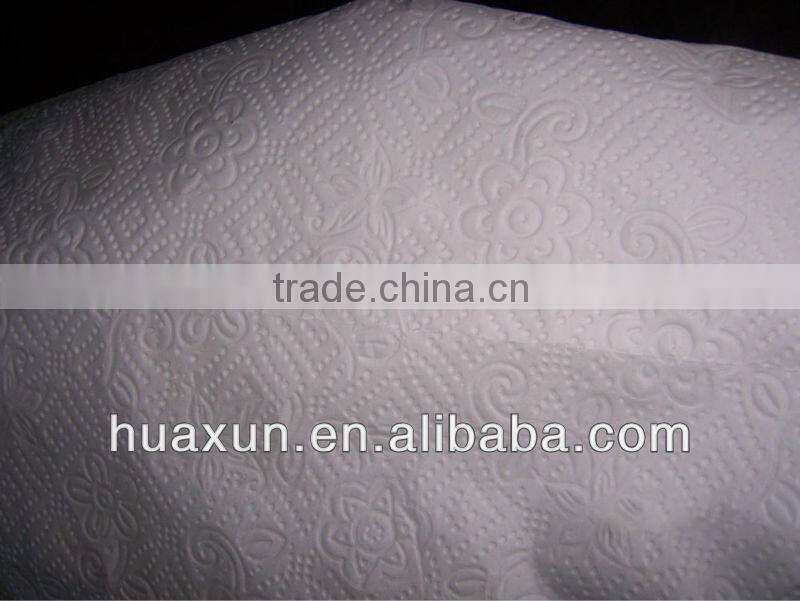

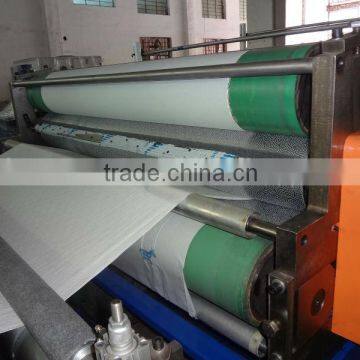

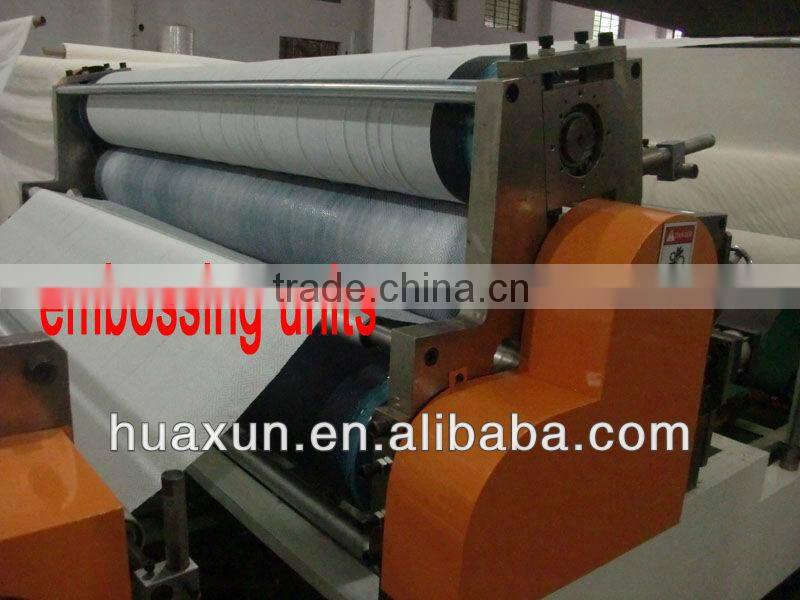

(7).  Embossing system adpot  steel roller to rubber roller, make embossing pattern pretty and clear.

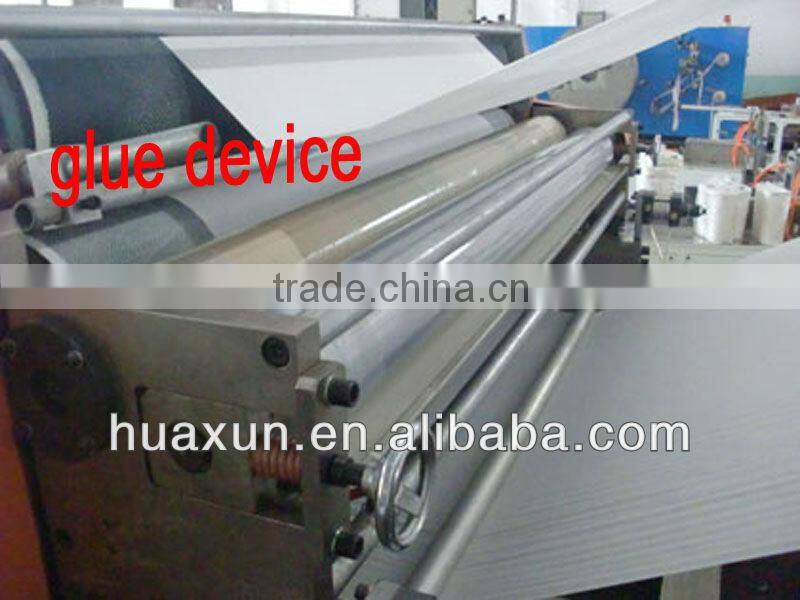

(8).  Glue applicator:This unit glues the paper on the embossed point to make two layer paper bond together. It's improved the towel absorbing water function.

(9).  The web can be threaded on the machine by the two jog buttons, making it more safe and easier to thread the web.

3. Main Technical Parameter:

(1).  Equipment power: 11.2kw ;

(2)   Production speed: 120-180m/min;

(3)   Final product diameter: ≤130mm;

(4)   Punching line distance: 150-200mm (other size can be customized);

(5)   Jumbo roll width: ≤2400mm;

(6)   Jumbo roll diameter: ≤1200mm (other size can be customized);

(7)   Paper core diameter of the jumbo roll:  3′(φ76mm) (other size can be customized);

(8)   Air pressure requirement: 0.5~0.8Mpa (supply from customer);

(9)   Equipment weight: about 4 Ton;

(10). Equipment size(L×W×H): 5700*2300*1300 .
