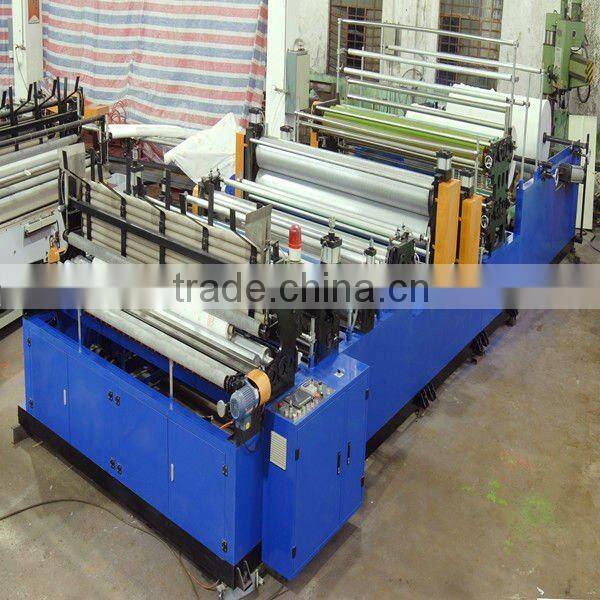

HX-2400B Full-automatic Kitchen Towels and Toilet Paper Rewinding Machine

1. Introduction:

(1). This equipment has been integrated with the internationally advanced PLC technology, variable speed adjustment, and touch button more menu type LCD screen operation control panel.

(2).  It adopts newly designed glue applicator unit. It makes the gluing more equality.

(3).  Can add 1-3 colors water ink printing system for printing diversified fine pattern, brand, with characters of clear and bright printing, exact overprint, high speed and stable running.

2. Main features :

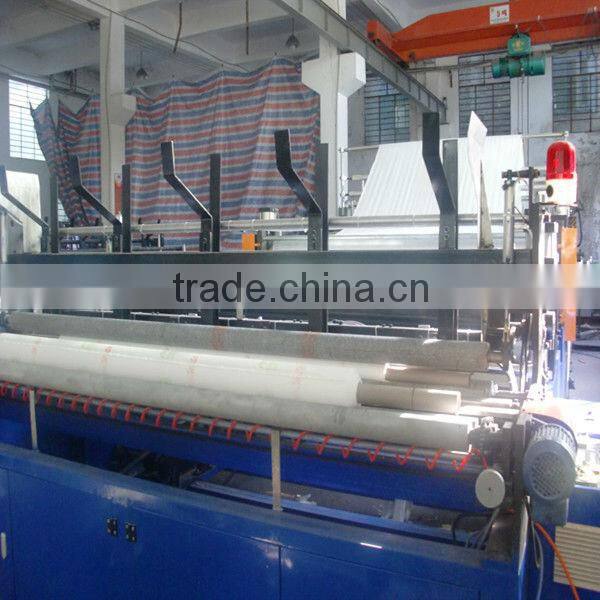

(1).  Automatic core loading and positioning. The logs are automatically pushed out after finishing winding, and then start winding again. It can adjust any size of cores.

(2).  Automatic trimming, gluing and sealing, it adopts international popular trimming and sealing, which can have 10-18 mm tails to facilitate to start pulling out the paper. At the same time, it can greatly cut down the wastage of the paper, thus to cut down the production cost.

(3).  Advanced programmable control technology. The winding profiles can be tight at the beginning of winding, and then getting loose, to avoid the problems that the cores are loose from the rolls after long time storage.

(4).  Stepless speed adjustment for unwinding roll, to ensure a stable unwinding roll.

(5).  Pneumatic jumbo roll loading, automatic detection of paper break, and machine stop automatic.

(6).  With high precision screwy perforation knife. With 4 perforation blades to make clear perforating, low noise. Pneumatic control, easy to guide the paper.

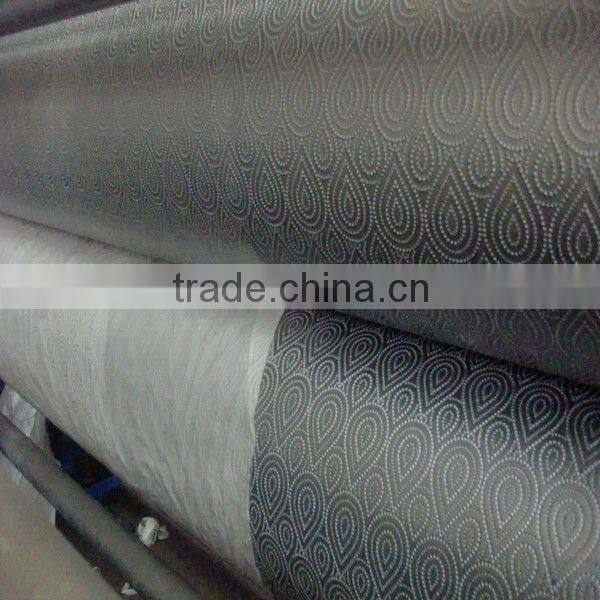

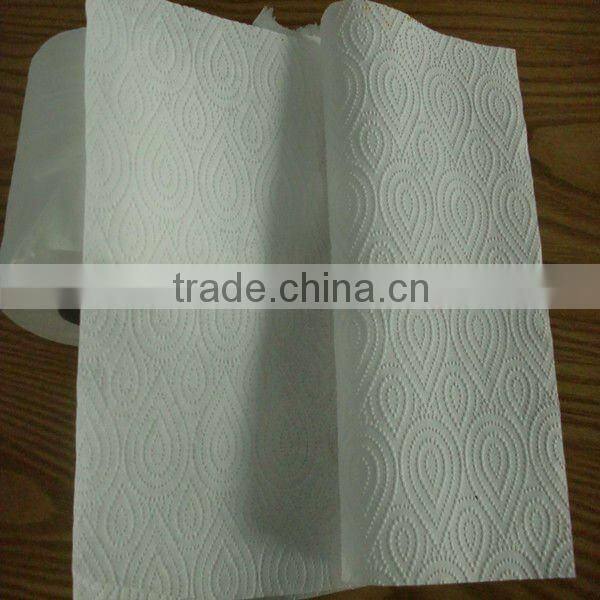

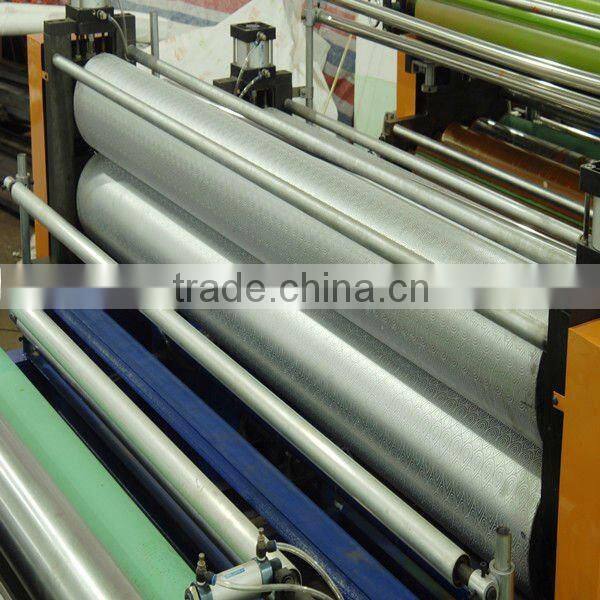

(7).  Embossing system adpot steel roller to steel roller, steel roller to rubber roller, steel roller to wool roller, can be selected.

(8).  Glue applicator:This unit glues the paper on the embossed point to make two layer paper bond together. It's improved the towel absorbing water function.

(9).  The web can be threaded on the machine by the two jog buttons, making it more safe and easier to thread the web.

3. Main Technical Parameter:

2400B(steel roller to steel roller, point to point, 2 colors printing) as model

(1).  Equipment power: 11.2kw (don’t include color printing, drying device);

(2)   Production speed: 120-180m/min;

(3)   Final product diameter: ≤130mm;

(4)   Perforating distance: 150-200mm (other size can be customized);

(5)   Jumbo roll width: ≤2400mm;

(6)   Jumbo roll diameter: ≤1200mm (other size can be customized);

(7)   Paper core diameter of the jumbo roll:  3′(φ76mm) (other size can be customized);

(8)   Air pressure requirement: 0.5~0.8Mpa (supply from customer);

(9)   Equipment weight: about 4 Ton;

(10). Equipment size(L×W×H): 5700*2300*1300 mm .

Pictures:

FAQs:

1.Q:who are we ?

  A: Quanzhou Huaxun Machinery Making Co., Ltd is a leading paper convert machine manufacturer .our product sale spreads all over the world,in many counties,we have our own agent.Our products widely cover toilet paper machine,towel paper (kitchen towel )machine,hand towel machine,facial tissue machine,napkin paper machine,craft paper machine,and other relative machine,etc.

2.Q:what is our payment terms?

   A:our general payment terms is TT.Before production,our customers should pay 30% down payment to us,then pay 70% after the machines are all ready to ship to buyer.(For other payment terms,also can be communicated by buyer and seller two parts.)

3.Q:what is our warranty?

   A:our warranty is one year,the parts can be replaced freely within one year,after one year,we also will provide slove project asap for any problems you have,will try our best to help you out of trouble.

4.Q:what is our service?

 A:If you just enter this line and new for paper convert business. We will provide properly program from jumbo roll paper to finished products, to help you get familiar with this line and start business well.

      2.We can help you to get the documents you need for customs clearance to help you make it easy.

      3.Before the machine delivery,we will test the machines in our factory and make sure they are running well.If customers want to come to our factory to test the machine,it is ok,and we will send car to pick them up at the airport.

      4.We will provide the manual and operating CD along the machines to customers,if necessary,we also can send technician to your factory to help you install and training your workers to operate our machine.

Your satisfaction is our goal,we will try our best to give you the best service,so for any suggestion,will be very appreciated.Have any questions,feel free to contact us,will reply you asap.
