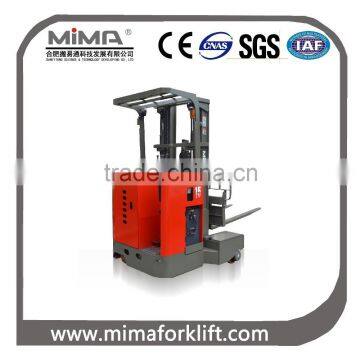

MIMA Electric Forklift for long material TFB series
- 300 Unit / Units per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | MIMA | Model Number | TFB | |
| Type | Powered Pallet Truck | Power Souce | AC Motor | |
| Rated Loading Capacity | 2500kg | Max. Lifting Height | 7200mm | |
| Min. Lifting Height | 2500mm | Fork Length | 1070mm | |
| Fork Width | 100mm | Overall Dimensions | 2393*1682*2320mm | |
| Certification | SGS | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
MIMA Electric Forklift for long material TFB series;Travel in 4 direction;with high-power battery;
AC Drive Motir,
MIMA Electric Forklift for long material TFB series;
4-directional forklift;AC Driving system, hydraulic steering;
1. 1.TFB model are designed to trackle the problem of handling long load, Lumber,drywall,fiberboard,furniture,pipe,steel and other big & long loas, now you can move more easily and reduce storage space with TFB four-directional forklift;
2. The movement can be forward,backward and side ways in both directions. Unlike the typical forklift truck, TFB can allow you to creat narrower aisles, denser storage and handle long loads faster and more easily;
3. With 2500kg rated capacity,7200mm lift height,The drive wheel' and high mast' display make it smoothest and easiest to use in the business;
Model No. | TFB15 | TFB25 | ||
| Standard | Power Type | Battery | Battery | |
| Operate Type | Stand-on | Stand-on | ||
| Rated Capacity | Q(kg) | 1500 | 2500 | |
| Load center | C(mm) | 500 | 500 | |
| T y r e | Wheel Type | Polyurethane Solid Tyre | ||
| Front Wheel | mm | Φ267×114 | Φ267×114 | |
| Driving Wheel | mm | Φ343×108 | Φ380×165 | |
| Balance Wheel | mm | Φ180×76 | Φ204×76 | |
| Tyres No. -front/Driving/swivel caster | 2/ 1X / 2 | 2 / 1X / 2 | ||
| D i m e n s i o n | Fork Tilt Angle----Upward/Downward--deg. | α/β(º) | 3/5 | 3/5 |
| Height-Overhead guard--mm | h5(mm) | 2320 | 2320 | |
| Height-Pedal to Overhead guard | h6(mm) | 1888 | 1879 | |
| Min Ground Clearance | h7(mm) | 69 | 74 | |
| Overall Length | 11(mm) | 2354 | 2482 | |
| Reach Stroke | 12(mm) | 560 | 685 | |
| Wheel Base | y(mm) | 1335 | 1700 | |
| Front Overhang | x(mm) | 227 | 162 | |
| Overall Width | b1/b2(mm) | 1514 | 1688 | |
| Fork Dimensions | mm | 1070*100*35 | 1070*100*45 | |
| Width across forks | b5(mm) | 220-662 | 247-780 | |
| Trurning radius | Wa(mm) | 1587 | 1979 | |
| F u n c t i o n | Travel Speed -laden/unladen | km/h | 7.5/8.5 | 7.8/9.0 |
| Max. Gradeability -laden/unladen | % | ≤10 | ≤10 | |
| P o w e r | Drive Motor type | AC | AC | |
| Driving Motor (S2 60) | kw | 5.5 | 5.5 | |
| Lift motor type | DC | DC | ||
| Lift Motor (S3 15%) | kw | 6.3 | 7.5 | |
| Battery V/AH | V/AH | 48/300 | 48/400 | |
| Weight | Battery | kg | 486 | 650 |
| Service Weight | kg | 2370 | 2960 | |
| Steering | Steering type | Full hydraulic | Full hydraulic | |
| Parking Brake | Electromagnetic | Electromagnetic | ||
| Parking Operation type | Releasing braking | Releasing braking | ||
| Service Brake-Operation type | Releasing braking | Releasing braking | ||
| Other | Battery change | side loading | side loading | |
12 months warranty;
Banyiting sicence & technology developing co.,ltd was established in 1994,with 20 years experiences in material handling equipments.Our factory located in the science & technology culture and ancient city of hefei,Anhui province.It is about 400 kilometers away from the Shanghai city,45 minutes by air or 2.5 hours by high-spped train.We are high-tech enterprise,specializing in R&D and designing electric forklift,and material handling solutions for different industries.We have ISO9001:2008 Quality Management System Certification,the People's Repulic of China Special Equipment Production License and Hefei City Innovative Enterprices.All products with CE certification and SGS certification.
Now MIMA brand have 12 major series,more than 50 products,such as the electric pallet truck,electric pallet stacker,reach truck,forklift,tow tractor,narrow aisle forklift,special forklift,AGV etc.We supply the 500KG-100000KG material handling solutions to the clients,to achieve products serialization and large-scale manufacture.All MIMA products are widely used in medicine,food,chemical,electronics,machinery,furniture and many industries.
ISO Certificate;
Any requirements or suggestio on material handling equipments,pls don't hesitate to contact with us.
