Home > Products > Electric pallet stacker > Hand Operated Pallet Stacker TBD

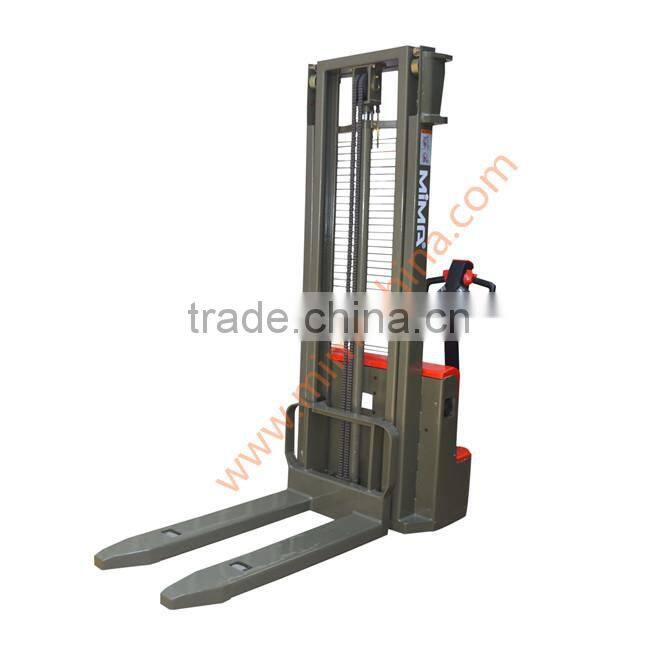

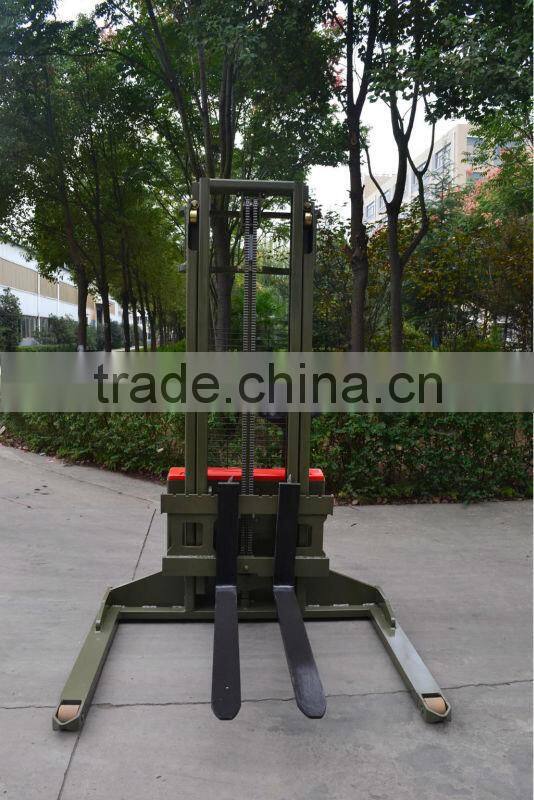

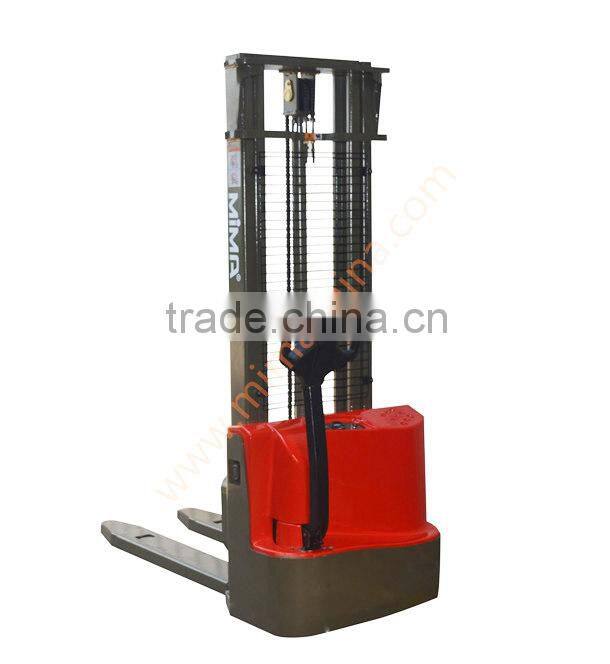

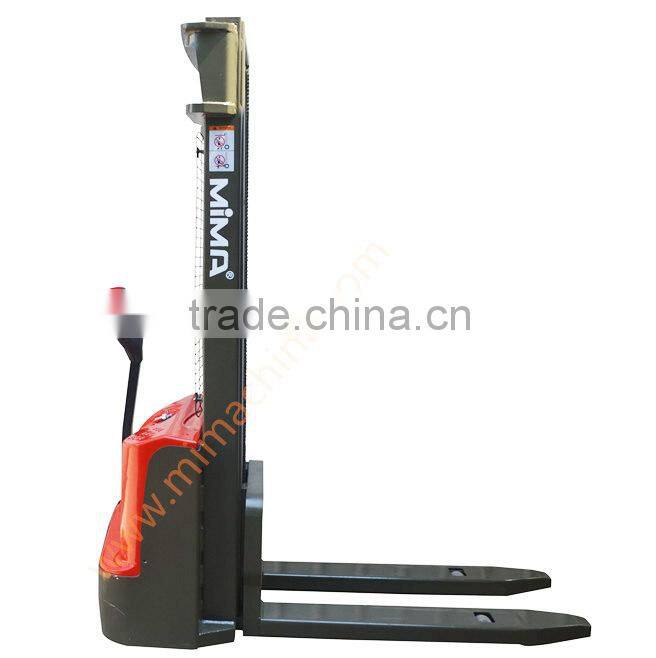

Hand Operated Pallet Stacker TBD
US$ 1,000 - 10,000
/ Unit
1 Unit(Min. Order)
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | MIMA | Model Number | TBD | |
| Dimension(L*W*H) | 1750*800*2090mm | Certification | CE | |
| Warranty | 12 months | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
hand operated pallet stacker,TBD series;with competitive price,
rated load capacity:1000kg,lift height: 3000mm;
hand operated pallet stacker ,TBD series;
Rated load capactiy:1000kg,lift height: 3000mm;
Product Description
1.Small frame with better turning radius and small stacking aisel;
2. With side long handler,easy to operate;
3. Famous curtis controller;
4. Free-maintenance battery with big-power for long working hours;
5.With big-power pump station,to improve the work efficiency;
| MODEL NO. | TBD10-30 | ||
| Standard | Power Type | Battery | |
| Operate Type | walkie | ||
| Rated Capacity | Q(kg) | 1000 | |
| Load center | C(mm) | 500 | |
| T y r e | Wheel Type | Polyurethane Tyre | |
| Front wheel | Φ80×70 | ||
| Rear wheel | Φ210×70 | ||
| Tyres No. -front/rear (X=drive wheel) | 2/1X+1 | ||
| D i m e n s i o n | Mast Type | 2-stage | |
| Lift Height | h1(mm) | 3000 | |
| Height--Free Lift | h2(mm) | / | |
| Height---Mast Lowered | h3(mm) | 2090 | |
| Height-Mast Extended | h4(mm) | 3570 | |
| Fork Min Ground Clearance | h5(mm) | 86 | |
| Overall Length | 11(mm) | 1750 | |
| Length to fork face | 12(mm) | 780 | |
| Wheel Base | y(mm) | 1215 | |
| Overall Width | b1(mm) | 800 | |
| Tread Front/rear | b3(mm) | 400/525 | |
| Fork Dimensions | mm | 1150*160*60 | |
| Width across forks | b4(mm) | 560 | |
| Aisle width for pallet 1000*1200 | Ast(mm) | 2250 | |
| Aisle with for pallet 800*1200 | Ast(mm) | 2180 | |
| Trurning radius | Wa(mm) | 1140 | |
| F u n c t i o n | Travel Speed -laden/unladen | km/h | 3.5/4 |
| Gradeability -laden/unladen | % | 3/6 | |
| P o w e r | Drive Motor type | DC | |
| Driving Motor (S2 60) | kw | 0.65 | |
| Lift motor type | DC | ||
| Lift Motor (S3 15%) | kw | 2 | |
| Battery V/AH | V/AH | 2*12 /80 | |
| Weight | Battery | kg | 2*25.5 |
| Service Weight | kg | 500 | |
| Steering | Steering type | Mechanical | |
| Parking Brake | Electromagnetic | ||
| Parking Operation type | Hand Operation | ||
| Service Brake type | Electromagnetic | ||
| Other | |||
