Pallet Stacker With Walkie
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | MIMA | Model Number | TBC10-30 | |
| Type | Powered Pallet Truck | Power Souce | AC Motor | |
| Rated Loading Capacity | 1000kg | Max. Lifting Height | 3000mm | |
| Min. Lifting Height | 2500mm | Fork Length | 1070mm | |
| Fork Width | 100mm | Overall Dimensions | 2680x1225x2120mm | |
| Certification | CE,ISO,SGS | After-sales Service Provided | Overseas third-party support available |
Product Description
Description:

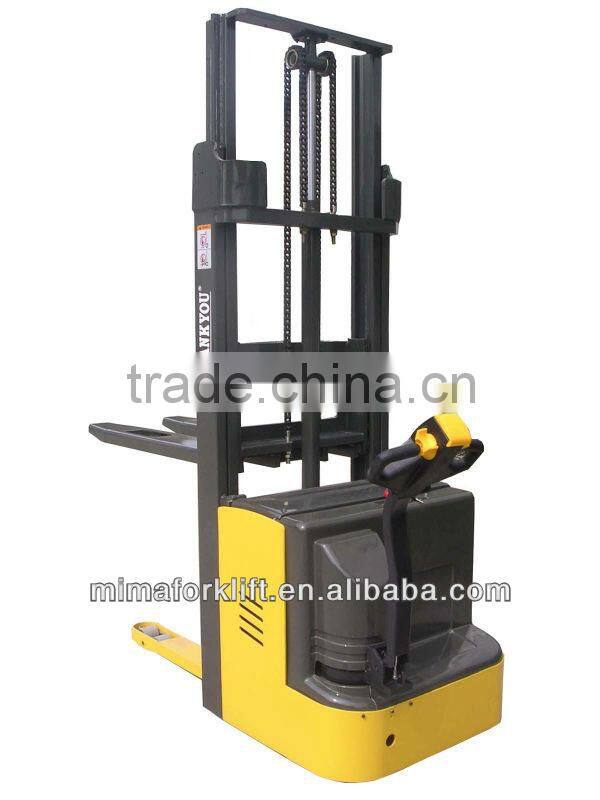

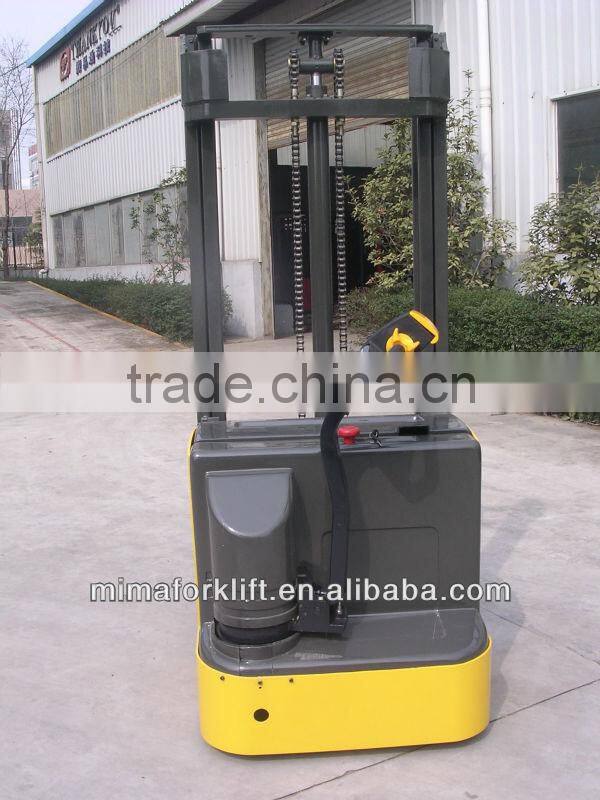

Walkie Pallet Stacker
TBC series walkie pallet stacker, rated load capcacity: 1500kg, lift height: 3000mm, it's main used for narrow warehouse and container;
1.To use water-proof and dust-proof design for all circuit, to aviod the shortcircuiting happened;
2.Ergonomics multi-functional operation handle to increase the comfortable degree;
3.Emergency reverse switch, to aviod the operator get harm;
4.Safety: emergency power-off switch.
Our products are manufactured in compliance with industry standards. Our clients prefer our Walkie Pallet Stackers owing to their high loading capacity, long service life, and low maintenance cost.
1 | Description | Electric pallet stacker |
2 | Model | TB10C-30 |
3 | Load capacity Kg | 1000 |
4 | Load center mm | 500 |
5 | Max. lifting height mm | 3000 |
6 | Free lift mm | 0 |
7 | Wheel type | Polyurethane solid tire |
8 | Fork size (LxW) mm | 1125*190 |
9 | Width of forks mm | 565 |
10 | Overall length mm | 2100 |
11 | Overall width mm | 800 |
12 | Overall height mast closed mm | 1970 |
13 | Overall height fork raised (with backrest) | 3440 |
14 | Outside turning radius mm | 1600 |
15 | Front wheel to fork tip mm | 470 |
16 | Max. walking speeds km/h | 4.0 |
17 | Grade abitity % | 5 |
18 | Total weight (with battery) Kg | ~750 |
19 | Driving wheel mm | Φ215*75 |
20 | Front wheel mm | Φ80*70 |
21 | Balance wheel mm | Φ150*50 |
22 | Battery V/Ah | 24/210 |
23 | Charger V/A | 24/30 |
24 | Driving motor Kw | 1.2 |
25 | Lifting motor Kw | 2.0 |
