High Lift Electric Stacker TB
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | MIMA | Model Number | TB | |
| Dimension(L*W*H) | 2045*850*2090 | Certification | CE | |
| Warranty | 12 months | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
high lift electric stacker ;Load capacity:2000kg;
lift hegith:4500mm;
with AC driving motor
high lift electric stacker;
TB Series with AC driving motor, Rated load capacity: 2000kg, lift height: 4500mm;
1. Speed Limited for high position, to aviod the possibility of products' overturning when high speed in high position;
2. Curve safe control, the forklift will reduce the speed automatic when turning,to aviod the ejection of operator and products from the vehicle by the high speed;
3. Safe cutoff valve, to protect the operator and goods in well condition;
4. Vertical Drive system, to save the energy and have long time working;
5. Durability: Reinforced frame and mast have long service life;
6. Ergonomics multi-functional operation handle;
7. Initiative shocking proof system to reduce the operator' fatigue.
MODEL NO. | TB10 | TB15 | TB20 | ||
| Standard | Power Type | Battery | Battery | Battery | |
| Operate Type | Stand-on | stand-on | stand-on | ||
| Rated Capacity | Q(kg) | 1000 | 1500 | 2000 | |
| Load center | C(mm) | 500 | 500 | 500 | |
| T & y R r I e m | Wheel Type-Front/Rear | polyurethane tire | |||
| Front Wheel | φ80×70 | φ80×70 | φ80×70 | ||
| Rear Wheel | φ215×75 | φ215×75 | φ215×75 | ||
| Tyres No. -front/rear (X=Drive wheel) | 4 /1X +2 | 4 /1X +2 | 4 /1X+2 | ||
| Tyres No. -front/rear (X=Drive wheel) /Training wheel (h1>3.5m) | 4 /1X +2 /2 | 4 /1X +2/2 | 4 /1X+2 /2 | ||
| D i m e n s i o n | Mast Type | 2-Stage mast | 2-Stage mast | 2-Stage mast | |
| Lift Height | h1(mm) | 3000 | 3000 | 3000 | |
| Height--Free Lift | h2(mm) | / | / | / | |
| Height---Mast Lowered | h3(mm) | 2050 | 2050 | 2050 | |
| Hegith-Mast Extended | h4(mm) | 3531 | 3531 | 3531 | |
| Fork Min Ground Clearance | h5(mm) | 90 | 90 | 90 | |
| Overall Length -pdeal extended/closed | 11(mm) | 2455/2045 | 2455/2045 | 2455/2045 | |
| Length-to Fork Face --pedal extended /closed | 12(mm) | 1305/895 | 1305/895 | 1305/895 | |
| Wheel Base | y(mm) | 1427 | 1427 | 1427 | |
| Overall Width | b1(mm) | 850 | 850 | 850 | |
| Tread Front/rear | b3(mm) | 490/618 | 490/618 | 490/618 | |
| Fork Dimensions | mm | 1150*190*75 | 1150*190*75 | 1150*190*75 | |
| Width across forks | b4(mm) | 680 | 680 | 680 | |
| Aisle width for pallet 1000*1200-Pedal extended/Closed | Ast(mm) | 2948/2553 | 2948/2553 | 2948/2553 | |
| Aisle width for pallet 800*1200-Pedal extended /closed | Ast(mm) | 2920/2525 | 2920/2525 | 2920/2525 | |
| Trurning radius-Pedal extended /closed | Wa(mm) | 2120/1725 | 2120/1725 | 2120/1725 | |
| F u n c t i o n | Travel Speed -laden/unladen | km/h | 4.0/5.8 | 4.0/5.8 | 4.0/5.8 |
| Gradeability -laden/unladen | % | 8/10 | 8/10 | 8/10 | |
| P o w e r | Drive Motor type | AC | AC | AC | |
| Driving Motor (S2 60) | kw | 1.5 | 1.5 | 1.5 | |
| Lift motor type | DC | DC | DC | ||
| Lift Motor (S3 15%) | kw | 2 | 2 | 2 | |
| Battery V/AH | V/AH | 24/210 | 24/210 | 24/210 | |
| Weight | Battery | kg | 200 | 200 | 200 |
| Service Weight | kg | 935 | 940 | 960 | |
| Steering | Steering type | Manual | |||
| Parking Brake model | Electromagnetic | ||||
| Parking Operation type | handle operation | ||||
| Parking brake type | Electromagnetic | ||||
| Other | |||||

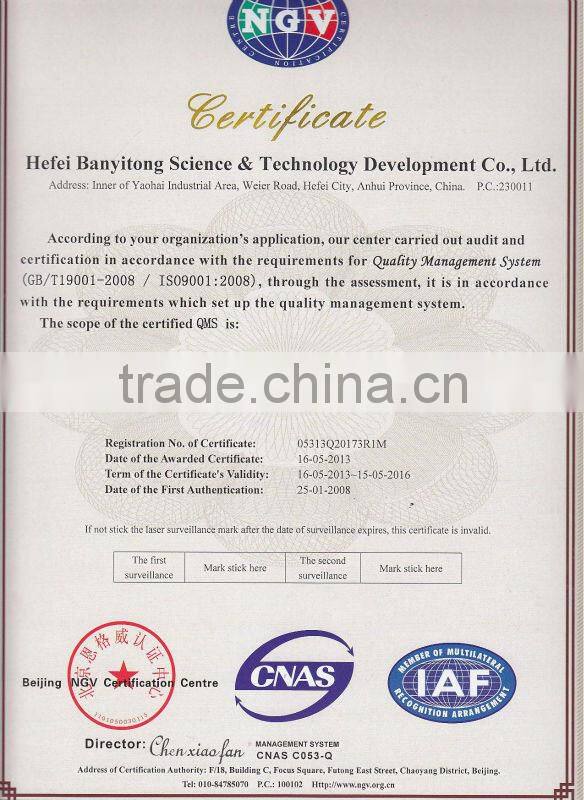

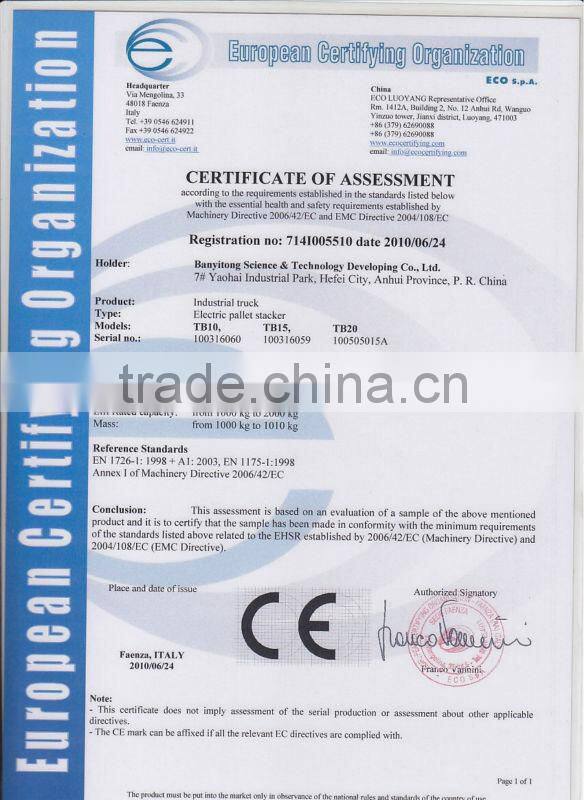

ISO AND CE CERTIFICATE:
If you have any requirements or promotion on that,pls don't hesitate to contact with us.
