Home > Products > Electric pallet stacker > Mini Stacker Machine TA

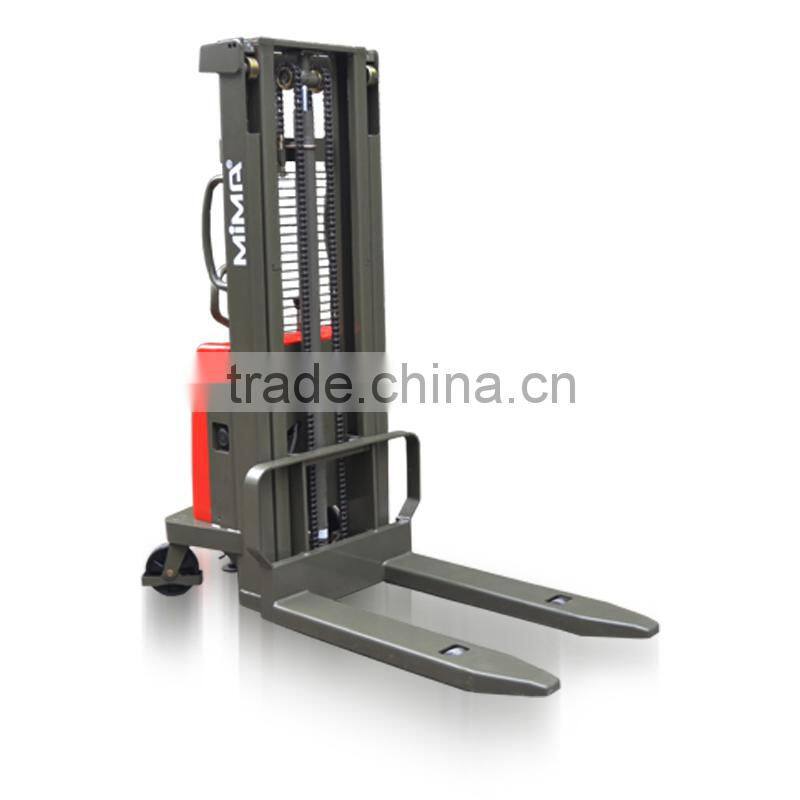

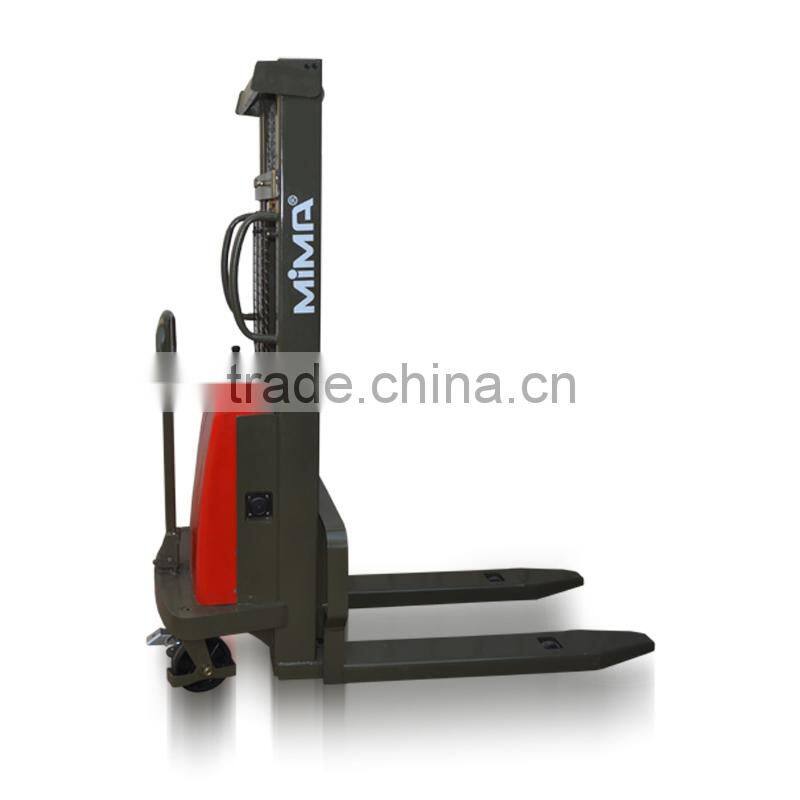

Mini Stacker Machine TA
US$ 1,000 - 10,000
/ Unit
1 Unit(Min. Order)
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | MIMA | Model Number | TA | |
| Dimension(L*W*H) | 1610*824*2075 | Certification | CE | |
| Warranty | 12 months | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
mini stacker machine,TA series;Load capacity:2000kg;
lift hegith:3500mm;
Mini stacker machine;
1. TA Series walkie pallet stakcer, used for narrow place, main for retail and manufacturing industry;
2. Rated Load Capactiy: 1500kg, lift height: 3500mm, narrow width design, 180 degree rotate for operation handle;
3. The advantages including: reliabilty, save energy, perfect performance and lower maintanence cost etc.
| TA10-25 | TA10-30 | TA15-25 | TA15-30 | TA20-25 | TA20-30 | ||||
| Standard | Power Type | Battery | Battery | Battery | Battery | Battery | Battery | |||
| Operate Type | walkie | walkie | walkie | walkie | walkie | walkie | ||||
| Rated Capacity | Q(kg) | 1000 | 1000 | 1500 | 1500 | 2000 | 2000 | |||
| Load center | C(mm) | 500 | 500 | 500 | 500 | 500 | 500 | |||
| Tire | Wheel Type-Front/Rear | Nylon /Nylon | Nylon / Nylon | |||||||
| Front Wheel | φ80×70 | φ80×70 | φ80×70 | φ80×70 | φ80×70 | φ80×70 | ||||
| Rear Wheel | φ180×50 | φ180×50 | φ180×50 | φ180×50 | φ180×50 | φ180×50 | ||||
| Tyres No. -front/rear (X=Drive wheel) | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | ||||
| D I M E N S I O N | Mast Type | 2-stage | 2-stage | 2-stage | 2-stage | 2-stage | 2-mast | |||
| Lift Height | h1(mm) | 2500 | 3000 | 2500 | 3000 | 2500 | 3000 | |||
| Height---Mast Lowered | h3(mm) | 1810 | 2060 | 1810 | 2060 | 1810 | 2060 | |||
| Hegith-Mast Extended | h4(mm) | 3041 | 3541 | 3041 | 3541 | 3041 | 3541 | |||
| Fork Min Ground Clearance | h5(mm) | 85 | 85 | 85 | 85 | 85 | 85 | |||
| Overall Length -pdeal extended/closed | 11(mm) | 1585 | 1585 | 1585 | 1585 | 1591 | 1591 | |||
| Wheel Base | y(mm) | 1124 | 1124 | 1124 | 1124 | 1133 | 1133 | |||
| Overall Width | b1(mm) | 760 | 760 | 760 | 760 | 760 | 760 | |||
| Tread Front/rear | b3/b4(mm) | 610/650 | 610/650 | 610/650 | 610/650 | 610/650 | 610/650 | |||
| Fork Dimensions | mm | 1000*160*70 | 1000*160*70 | 1000*160*70 | ||||||
| Width across forks | b5(mm) | 670 | 670 | 670 | 670 | 670 | 670 | |||
| Aisle width for pallet 800*1200 | Ast(mm) | 2100 | 2100 | 2100 | 2100 | 2109 | 2109 | |||
| Aisle width for pallet 1000*1200 | Ast(mm) | 2173 | 2173 | 2173 | 2173 | 2182 | 2182 | |||
| Trurning radius | Wa(mm) | 1285 | 1285 | 1285 | 1285 | 1294 | 1294 | |||
| Power | Lift motor type | DC | DC | DC | DC | DC | DC | |||
| Lift Motor (S3 15%) | kw | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |||
| Battery V/AH | V/AH | 12/115 | 12/115 | 12/115 | 12/115 | 12/115 | 12/115 | |||
| Weight | Battery | kg | 33 | 33 | 33 | 33 | 33 | 33 | ||
| Service Weight | kg | 445 | 470 | 454 | 480 | 530 | 565 | |||
| Other | ||||||||||
