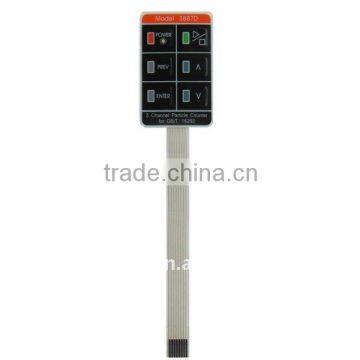

Embossing Membrane Circuit Panel Switch

FOB Price

USD $0.5 - $3 / Piece

100 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Dalian
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	Geeton
Model Number	GMS-101	Max. Current	35V
Max. Voltage	100mA

Product Description

Specifications

Membrane Circuit Panel Switch
1.Material:matte and clear PET
2.Thickness:0.13mm~0.20mm
3.Adhesive:3M, RIDONG, SONY
4.ISO9001

Membrane Circuit Panel Switch

Dalian Geeton Electronics Co., Ltd specializes in producing membrane switch and nameplate, and we have established more than five years’ stable business partnership with Panasonic, TOSHIBA, OMRON, SANYO and other international well-known enterprises.

Membrane Switch Performance:

Certification	ISO9001:2008, ISO14001:2008& RoHS.
Components:	LED, metal domes, connector and circuit, all these can be designed and made according to customer requirements.
Electronic characteristics
Circuit rating	35V(DC),100mA,1 W
Contact resistance	10Ω - 500Ω(According the trace length and materials to confirm)
Insulation resistance	>100MΩ 250V(DC)
Contact bounce	≤5ms
Dielectric withstand	250VRms(50 - 60Hz/1 min)
Life expectancy	flat type≥5 million times, tactile type:≥1 million times
Mechanical Properties
Operating pressure	flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)
Switch stroke	flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm
Environmental parameters
Operating Temperature	-20°C - +80°C
Storage temperature	-40°C - +85°C
Humidity	40°C,90%-95%,240 hours

Membrane Switch advantages:

1. Beautiful appearance, bright in color, various types of products can be designed according to customer requirements.

2. Small size, light weight, thin thickness, good tactility, abrasion resistant, Installation and connection convenience.

3. Tightness is good, moisture-proof, dust-proof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quake proof.

4. Low cost, high lifespan. The life expectancy of different types of membrane switch is more than 1 million times.

5. Easy to operate, intuitive, safe and reliable, in-house 100% functionally tested.

Certification
