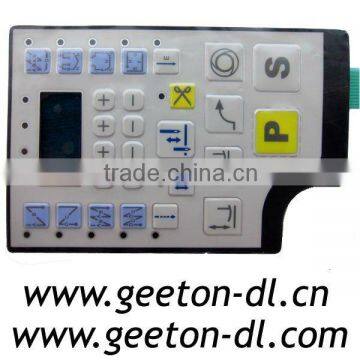

Membrane Switch Sticker Panel

Certification

ISO9001:2008, ISO14001:2008& RoHS.

Components:

LED, metal domes, connector and circuit, all these can be designed and made according to customer requirements.

Electronic characteristics

Circuit rating

35V(DC),100mA,1 W

Contact resistance

10Ω - 500Ω(According the trace length and materials to confirm)

Insulation resistance

>100MΩ 250V(DC)

Contact bounce

≤5ms

Dielectric withstand

250VRms(50 - 60Hz/1 min)

Life expectancy

flat type≥5 million times, tactile type:≥1 million times

Mechanical Properties

Operating pressure

flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)

Switch stroke

flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm

Environmental parameters

Operating Temperature

-20°C - +80°C

Storage temperature

-40°C - +85°C

Humidity

40°C,90%-95%,240 hours

Appearance

Beautiful, bright in color

Design

Small size, light weight, thin thickness, various types of products can be designed according to customer requirements.

Feature

Abrasion resistant, Tightness is good, moisture-proof, dust-proof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quake proof.

Quality

In-house 100% functionally tested.

Life expectancy

High lifespan, different types of membrane switch is more than 1 million times.

Operation

Easy to operate, intuitive, safe and reliable, Installation and connection convenience.
