Home > Products > Poly Dome Membrane Switch > Poly Dome Membrane Switch

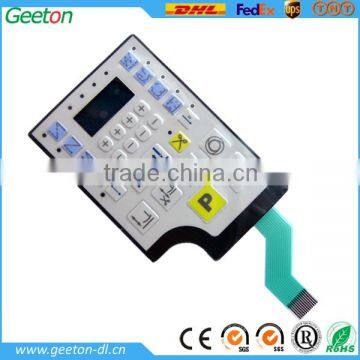

Poly Dome Membrane Switch
- Dalian
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | Geeton | |
| Model Number | GMS-268 |
Product Description
Specifications
Poly Dome Membrane SwitchMaterial:PC&Rubber&silicone
Thickness:0.1mm~2.0mm
Adhesive:3M
Cients:Panasonic,SANYO,OMRON,TOSHIBA
Poly Dome Membrane Switch
Dalian Geeton Electronics Co., Ltd specializes in producing membrane switch and nameplate, and we have established more than five years’ stable business partnership with Panasonic, TOSHIBA, OMRON, SANYO and other international well-known enterprises.
Membrane Switch Performance
Components | LED, metal domes, connector and circuit |
Electronic characteristics | |
Circuit rating | 35V(DC),100mA,1 W |
Contact resistance | 10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation resistance | >100MΩ 250V(DC) |
Contact bounce | ≤5ms |
Dielectric withstand | 250VRms(50 - 60Hz/1 min) |
Life expectancy | flat type≥5 million times, tactile type:≥1 million times |
Mechanical Properties | |
Operating pressure | flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz) |
Switch stroke | flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm |
Environmental parameters | |
Operating Temperature | -20°C - +80°C |
Storage temperature | -40°C - +85°C |
Humidity | 40°C,90%-95%,240 hours |
Membrane Switch Advantage
Appearance | Modern, multicolor |
Design | Small size, light weight, thin thickness |
Feature | Abrasion resistant, moisture-proof, dust-proof, water-proof |
Quality | 100% QC and the test in making process |
Life expectancy | High lifespan, different types of membrane switch is more than 1 million times. |
Operation | Easy to operate, intuitive, safe and reliable, Installation and connection convenience. |
Products Recommend
OEM service offered. Design service offered. Cutomer label offered.
