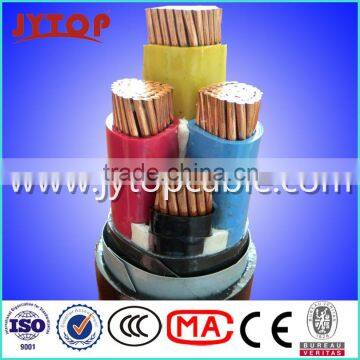

0.6/1kV PVC insulated armoured cable, PVC Cable sta cable .
- Main Ports of China
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | JYTOP | |
| Model Number | armoured cable | Insulation Material | PVC | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Other, aluminum or copper | Jacket | Other, PVC or PE |
Product Description
May be you are also interested about
0.6/1kV AL/XLPE/PVC(or PE) Power Cable
0.6/1kV CU/XLPE/PVC(or PE) Power Cable
0.6/1kV CU/XLPE/SWA/PVC(or PE) Power Cable
0.6/1kV CU/XLPE/STA/PVC(or PE) Power Cable
0.6/1kV AL/PVC/ PVC (or PE) Power Cable
0.6/1kV CU/PVC/PVC (or PE) Power Cable
0.6/1kV AL/PVC/SWA/PVC(or PE) Power Cable
0.6/1kV CU/PVC/STA/PVC(or PE) Power Cable
JYTOP CABLE Company Description
1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.
5. Serve everyone with heart and soul.
0.6/1kV PVC insulated armoured cable, PVC Cable,sta cable.
1. Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. permissible continuous operating temperature of conductor: 70°C
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed:
Nominal cross section of conductor ≤300mm2: 160 °C
Nominal cross section of conductor >300mm2: 140 °C
The ambient temperature under installation should not be lower than: 0 °C The bending radius of cable is recommended as following:
For single core cable: not less than 15 times of the diameter of cable
For multi-core cable: not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armoring material should be non- magnetic.
2. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical force, but unable to bear large pulling force.
3. Manufacturing Standards
IEC 60502-1 & Chinese national standard GB/T 12706-2008
We can produce above cables according to popular international standards such as ASTM,BS,DIN,NF &AS/NZ also.
4. Main technical data
4.1 Main technical data of 0.6/1KV, Single core, Copper conductor, PVC insulated, double steel tape armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV CU/PVC/DSTA/PVC or PE
Cable size |
Conductor type | Nominal thickness of PVC insulation (mm) | Nominal thickness of steel tape(mm) | Nominal thickness of PVC sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 200C (Ω/km) |
1x10mm2 | RM | 1.0 | 0.2 | 1.8 | 12.9 | 1.83 |
1x16mm2 | RM | 1.0 | 0.2 | 1.8 | 13.9 | 1.15 |
1x25mm2 | RM | 1.2 | 0.2 | 1.8 | 14.3 | 0.727 |
1x35mm2 | RM | 1.2 | 0.2 | 1.8 | 15.5 | 0.524 |
1x50mm2 | RM | 1.4 | 0.2 | 1.8 | 17.2 | 0.387 |
1x70mm2 | RM | 1.4 | 0.2 | 1.8 | 19.0 | 0.268 |
1x95mm2 | RM | 1.6 | 0.2 | 1.8 | 21.3 | 0.193 |
1x120mm2 | RM | 1.6 | 0.2 | 1.8 | 22.9 | 0.153 |
1x150mm2 | RM | 1.8 | 0.2 | 1.8 | 24.9 | 0.124 |
1x185mm2 | RM | 2.0 | 0.2 | 1.8 | 27.1 | 0.0991 |
1x240mm2 | RM | 2.2 | 0.2 | 1.8 | 30.2 | 0.0754 |
1x300mm2 | RM | 2.4 | 0.5 | 2.0 | 35.2 | 0.0601 |
1x400mm2 | RM | 2.6 | 0.5 | 2.1 | 38.8 | 0.0470 |
1x500mm2 | RM | 2.8 | 0.5 | 2.2 | 43.0 | 0.0366 |
4.2 Main technical data of 0.6/1KV, two cores, Copper conductor, PVC insulated, double steel tape armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV CU/PVC/DSTA/PVC or PE
Cable size |
Conductor type | Nominal thickness of PVC insulation (mm) | Nominal thickness of steel tape(mm) | Nominal thickness of PVC sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 200C (Ω/km) |
2x1.5mm2 | RE or RM | 0.8 | 0.2 | 1.8 | 12.9 | 12.1 |
2x2.5mm2 | RE or RM | 0.8 | 0.2 | 1.8 | 13.7 | 7.41 |
2x4mm2 | RE or RM | 1.0 | 0.2 | 1.8 | 15.5 | 4.61 |
2x6mm2 | RE or RM | 1.0 | 0.2 | 1.8 | 16.5 | 3.08 |
2x10mm2 | RM | 1.0 | 0.2 | 1.8 | 19.1 | 1.83 |
2x16mm2 | RM | 1.0 | 0.2 | 1.8 | 21.2 | 1.15 |
2x25mm2 | SM | 1.2 | 0.2 | 1.8 | 18.6 | 0.727 |
2x35mm2 | SM | 1.2 | 0.2 | 1.8 | 20.1 | 0.524 |
2x50mm2 | SM | 1.4 | 0.2 | 1.8 | 22.4 | 0.387 |
2x70mm2 | SM | 1.4 | 0.5 | 2.0 | 26.9 | 0.268 |
2x95mm2 | SM | 1.6 | 0.5 | 2.1 | 30.3 | 0.193 |
2x120mm2 | SM | 1.6 | 0.5 | 2.2 | 32.6 | 0.153 |
2x150mm2 | SM | 1.8 | 0.5 | 2.3 | 35.5 | 0.124 |
2x185mm2 | SM | 2.0 | 0.5 | 2.5 | 39.1 | 0.0991 |
2x240mm2 | SM | 2.2 | 0.5 | 2.7 | 43.6 | 0.0754 |
2x300mm2 | SM | 2.4 | 0.5 | 2.8 | 47.6 | 0.0601 |
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
4.3 Main technical data of 0.6/1KV, three cores, Copper conductor, PVC insulated, double steel tape armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV CU/PVC/DSTA/PVC or PE
Cable size |
Conductor type | Nominal thickness of PVC insulation (mm) | Nominal thickness of steel tape(mm) | Nominal thickness of PVC sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 200C (Ω/km) |
3x1.5mm2 | RE or RM | 0.8 | 0.2 | 1.8 | 13.4 | 12.1 |
3x2.5mm2 | RE or RM | 0.8 | 0.2 | 1.8 | 14.3 | 7.41 |
3x4mm2 | RE or RM | 1.0 | 0.2 | 1.8 | 16.1 | 4.61 |
3x6mm2 | RE or RM | 1.0 | 0.2 | 1.8 | 17.2 | 3.08 |
3x10mm2 | RM | 1.0 | 0.2 | 1.8 | 20.0 | 1.83 |
3x16mm2 | RM | 1.0 | 0.2 | 1.8 | 22.3 | 1.15 |
3x25mm2 | SM | 1.2 | 0.2 | 1.8 | 21.3 | 0.727 |
3x35mm2 | SM | 1.2 | 0.2 | 1.8 | 23.2 | 0.524 |
3x50mm2 | SM | 1.4 | 0.2 | 1.9 | 26.2 | 0.387 |
3x70mm2 | SM | 1.4 | 0.5 | 2.0 | 31.1 | 0.268 |
3x95mm2 | SM | 1.6 | 0.5 | 2.2 | 35.4 | 0.193 |
3x120mm2 | SM | 1.6 | 0.5 | 2.3 | 38.2 | 0.153 |
3x150mm2 | SM | 1.8 | 0.5 | 2.4 | 41.7 | 0.124 |
3x185mm2 | SM | 2.0 | 0.5 | 2.6 | 46.0 | 0.0991 |
3x240mm2 | SM | 2.2 | 0.5 | 2.8 | 51.4 | 0.0754 |
3x300mm2 | SM | 2.4 | 0.5 | 3.0 | 56.5 | 0.0601 |
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
4.4 Main technical data of 0.6/1KV, 3+1 cores, Copper conductor, PVC insulated, double steel tape armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV CU/PVC/DSTA/PVC or PE
Cable size |
Conductor type | Nominal thickness of PVC insulation(mm) | Nominal thickness of steel tape(mm) | Nominal thickness of PVC sheath (mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 200C (Ω/km) | |||
Phase core | Earth core | Phase core | Earth core | Phase core | Earth core | ||||
3x2.5+1.5mm2 | RE | RE | 0.8 | 0.8 | 0.2 | 1.8 | 14.9 | 7.41 | 12.1 |
3x4+2.5mm2 | RE | RE | 1.0 | 0.8 | 0.2 | 1.8 | 16.7 | 4.61 | 7.41 |
3x6+4mm2 | RE | RE | 1.0 | 1.0 | 0.2 | 1.8 | 18.2 | 3.08 | 4.61 |
3x10+6mm2 | RM | RE | 1.0 | 1.0 | 0.2 | 1.8 | 20.8 | 1.83 | 3.08 |
3x16+10mm2 | RM | RM | 1.0 | 1.0 | 0.2 | 1.8 | 23.5 | 1.15 | 1.83 |
3x25+16mm2 | SM | RM | 1.2 | 1.0 | 0.2 | 1.8 | 24.2 | 0.727 | 1.15 |
3x35+16mm2 | SM | RM | 1.2 | 1.0 | 0.2 | 1.8 | 25.9 | 0.524 | 1.15 |
3x50+25mm2 | SM | SM | 1.4 | 1.2 | 0.5 | 2.0 | 30.5 | 0.387 | 0.727 |
3x70+35mm2 | SM | SM | 1.4 | 1.2 | 0.5 | 2.1 | 33.9 | 0.268 | 0.524 |
3x95+50mm2 | SM | SM | 1.6 | 1.4 | 0.5 | 2.3 | 38.5 | 0.193 | 0.387 |
3x120+70mm2 | SM | SM | 1.6 | 1.4 | 0.5 | 2.4 | 41.8 | 0.153 | 0.268 |
3x150+70mm2 | SM | SM | 1.8 | 1.4 | 0.5 | 2.5 | 45.0 | 0.124 | 0.268 |
3x185+95mm2 | SM | SM | 2.0 | 1.6 | 0.5 | 2.7 | 49.9 | 0.0991 | 0.193 |
3x240+120mm2 | SM | SM | 2.2 | 1.6 | 0.5 | 2.9 | 55.5 | 0.0754 | 0.153 |
3x300+150mm2 | SM | SM | 2.4 | 1.8 | 0.5 | 3.1 | 61.0 | 0.0601 | 0.124 |
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
4.5 Main technical data of 0.6/1KV, four cores, Copper conductor, PVC insulated, double steel tape armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV CU/PVC/DSTA/PVC or PE
Cable size |
Conductor type | Nominal thickness of PVC insulation (mm) | Nominal thickness of steel tape(mm) | Nominal thickness of PVC sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 200C (Ω/km) |
4x1.5mm2 | RE or RM | 0.8 | 0.2 | 1.8 | 14.2 | 12.1 |
4x2.5mm2 | RE or RM | 0.8 | 0.2 | 1.8 | 15.1 | 7.41 |
4x4mm2 | RE or RM | 1.0 | 0.2 | 1.8 | 17.2 | 4.61 |
4x6mm2 | RE or RM | 1.0 | 0.2 | 1.8 | 18.5 | 3.08 |
4x10mm2 | RM | 1.0 | 0.2 | 1.8 | 21.6 | 1.83 |
4x16mm2 | RM | 1.0 | 0.2 | 1.8 | 24.1 | 1.15 |
4x25mm2 | SM | 1.2 | 0.2 | 1.8 | 23.8 | 0.727 |
4x35mm2 | SM | 1.2 | 0.2 | 1.8 | 25.9 | 0.524 |
4x50mm2 | SM | 1.4 | 0.5 | 2.0 | 31.4 | 0.387 |
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
Certificates
Customers Visit
Some Project
1. Is it a cable factory?
Definitely, we are a wire and cable Manufacturer with 23 years history, our factory located in Zhengzhou, Henan Province,China.
2. Any certificates:
Yes, the CE and ISO 9001:2008 are available.
For bare conductors there are Type Test Report available
3. What Standards you are using?
We can producing the wire and cables according to the popular Standards, such as IEC, ASTM, BS, DIN,SANS,CSA or as the clients requirements
4. OEM services?
Yes, We supply OEM services.
5. Delivery time
It depends on the cable type and quantity you need, you can contact us for the details
6. Payment terms:
Usually we would prefer L/C, T/T, or negotiate with us.
7. Packing
Usually it is packing in coil for PVC builing wire, for the powe cable and bare conductors used to packing by Drums, or as clients requirements.
