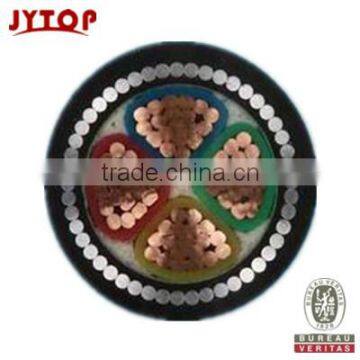

ELECTRIC CABLE POWER CABLE 1kV Copper conductor XLPE insulated steel wire armored power cable LV SWA power cable

Chinese Type

Description

Core qty

Conductors range

YJV32

Copper conductor, XLPE insulation, Steel Wire Armored, PVC outer sheath Power Cable

1,  2,    3,  4, 3+1,

5,  4+1, 3+2

1.5~800mm²

YJV33

Copper conductor, XLPE insulation, Steel Wire Armored, PE outer sheath Power Cable

1,  2,    3,  4, 3+1,

5,  4+1, 3+2

1.5~800mm²

ZA-YJV32

ZB-YJV32

ZC-YJV32

Copper conductor, XLPE insulation, Steel Wire Armored flame-retardant Power Cable

1,  2,    3,  4, 3+1,

5,  4+1, 3+2

1.5~800mm²

WDZA-YJY33

WDZB-YJY33

WDZC-YJY33

Copper conductor, XLPE insulation, Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable

1,  2,    3,  4, 3+1,

5,  4+1, 3+2

1.5~800mm²

NH-YJV32

Copper conductor, XLPE insulation, Steel Wire Armored fire-resistant Power Cable

1,  2,    3,  4, 3+1,

5,  4+1, 3+2

1.5~800mm²

Cable size

Conductor type

Nominal thickness of XLPE insulation (mm)

Approx.

diameter

of steel

wire(mm)

Nominal thickness of PVC or PE sheath(mm)

Approx. cable overall diameter (mm)

Max. D.C resistance @ 20⁰C(Ω/km)

4x1.5mm²

RE or RM

0.7

0.8

1.8

14.5

12.1

4x2.5mm²

RE or RM

0.7

1.25

1.8

16.4

7.41

4x4mm²

RE or RM

0.7

1.25

1.8

17.5

4.61

4x6mm²

RE or RM

0.7

1.25

1.8

18.7

3.08

4x10mm²

RM

0.7

1.6

1.8

22.5

1.83

4x16mm²

RM

0.7

1.6

1.8

25.1

1.15

4x25mm²

SM

0.9

1.6

1.8

26.9

0.727

4x35mm²

SM

0.9

1.6

1.9

29.2

0.524

4x50mm²

SM

1.0

2.0

2.0

33.4

0.387

4x70mm²

SM

1.1

2.0

2.2

37.4

0.268

4x95mm²

SM

1.1

2.0

2.3

41.7

0.193

4x120mm²

SM

1.2

2.5

2.4

46.2

0.153

4x150mm²

SM

1.4

2.5

2.6

50.7

0.124

4x185mm²

SM

1.6

2.5

2.8

55.8

0.0991

4x240mm²

SM

1.7

2.5

3.0

62.0

0.0754

4x300mm²

SM

1.8

3.15

3.1

87.6

0.0601
