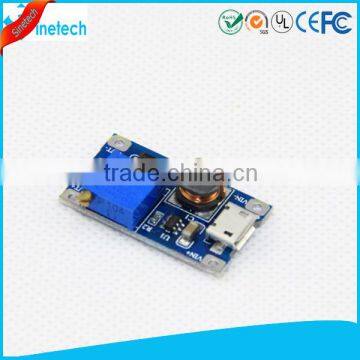

Wide output 5~28V dc step up converter module

Model

Converter-D009

Output power(W)

50W

Input voltage(V)

From 2VDC to 24VDC(5V,12V,24V...)

Output voltage(V)

From 5VDC to 28VDC(5V,9.5V,12V,24V...)

Conversion efficiency

93%

Isolation/Non-isolated

Non-isolated

Output type

Multi

Output current (Amp)

2000mA(Max.)

Input/output interface

Wiring, customization available

Load regulation rate

<1%

Voltage regulation rate

<2%

Ripple

<50mV

Protection

Over-current, over-voltage, Over-temperature, shutdown, short-circuit, reverse polarity protections

Waterproof

Yes

Basic parameter

Dimension(LxWxH)

30mm * 17mm * 14mm , etc

Weight

5g

Rated temperature

40°c

Operating temperature

-25°c~85°c

Warranty

1 year

Item

Type

Voltage convert

Output current

1

DC-DC Converter - step down

24vdc to 12vdc

1/2/3/4/5/8/10/15/20/25A

2

DC-DC Converter - step down

12vdc/24vdc to 5vdc

1/2/3/4/5/8/10/15/20/25/30A

3

DC-DC Converter-Boost

5vdc to 12vdc

1/2/3/4/5/8/10A

4

DC-DC Converter-Boost

12vdc to 36vdc

1/2/4/5A

5

DC-DC Converter-Boost

12vdc to 48vdc

1/2/4/5A

6

DC-DC Converter - step down

36vdc/48vdc to 12vdc

1/2/3/4/5/10/12/15/20A

7

DC-DC Converter-Boost

12vdc to 24vdc

1/2/3/4/5/8/10/12A

8

DC-DC Converter - step down

60vdc to 12vdc

10/12/15A

9

DC-DC Converter - step down

60vdc to 24vdc

10/12/15A

10

DC-DC Converter - step down

60vdc to 36vdc

5/8A

11

DC-DC Converter - step down

12vdc to 5vdc

1/2/3A

12

DC-DC Converter - step down

36vdc/48vdc to 24vdc

10/12/15/20A

13

DC-DC Converter - step down

48vdc to 36vdc

5/8A

14

DC-DC Converter---Automatic Step down and Boost

12vdc-12vdc

1/2/3/6A

15

DC-DC Converter---Automatic Step down and Boost
