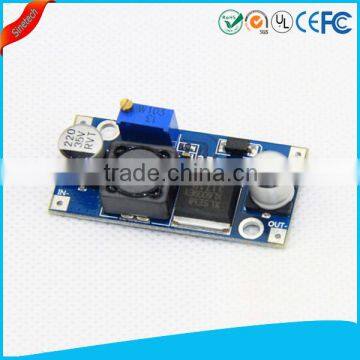

LM2596S dc to dc step down power converter module adjustable
USD $1 - $3
/ Piece
500 Pieces(Min.Order)
- 500 Square Meter / Square Meters per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Adjustable dc buck power converter module with LM2596S chip
-
12V to 5V dc to dc converter module adjustable
-
Power supply adjustable dc to dc step down LM2596S converter
-
Boost DC-DC 0.9V~5V to 5V Adjustable Power Supply Module
-
DC-DC Converter Step Up Boost Module Power Supply 0.9V~5V to 5V with USB Output 600MA
-
Power supply output 5V to 35V dc step up power charger converter module
Product Details
| Place of Origin | Guangdong, China | Brand Name | SINETECH | |
| Model Number | Converter-D012 | Output Power | 51 - 100W | |
| Output Type | Single | Size | 43mm* 21mm* 14mm | |
| Weight | 5g | Input Voltage | 3.2-40V | |
| Output Voltage | 1.25~35V | Type | DC/DC Converters | |
| Output Frequency | 65KHz | Output Current | 600mA |
Product Description
Performance and features:
Model / name LM2596S dc-dc step down moduleInput voltage 3.2V ~ 40VOutput voltage 1.25V ~ 35VOutput current of 3A ( Maximum )Conversion efficiency of 92% ( Maximum )Output ripple <30mVSwitching frequency 65KHzOperating temperature -10 ℃ ~ + 85 ℃Size 43mm * 21mm * 14mm ( L * W * H )
Useage:
1),Connection Polarity IN + IN- :input positive and negative,The positive output OUT + OUT- output negative
2),Input voltage range : DC 3.2V to 46V ( input voltage must be higher than the voltage output to 1.5V. )
3),Output Voltage Range : 1.25V to 35V DC voltage is continuously adjustable , high efficiency ( maximum 92%) of the maximum output current of 3A.
4),12V input , load regulation 5V 1A output current is lower than 1%
5),Note : This is a step-down module , the input voltage is higher than the required output voltage.
Output 2A or less long period of time without additional heat sink output current is greater than 2.5A ( or output power greater than 10W) to work long time please add heat sink.
